Tip:

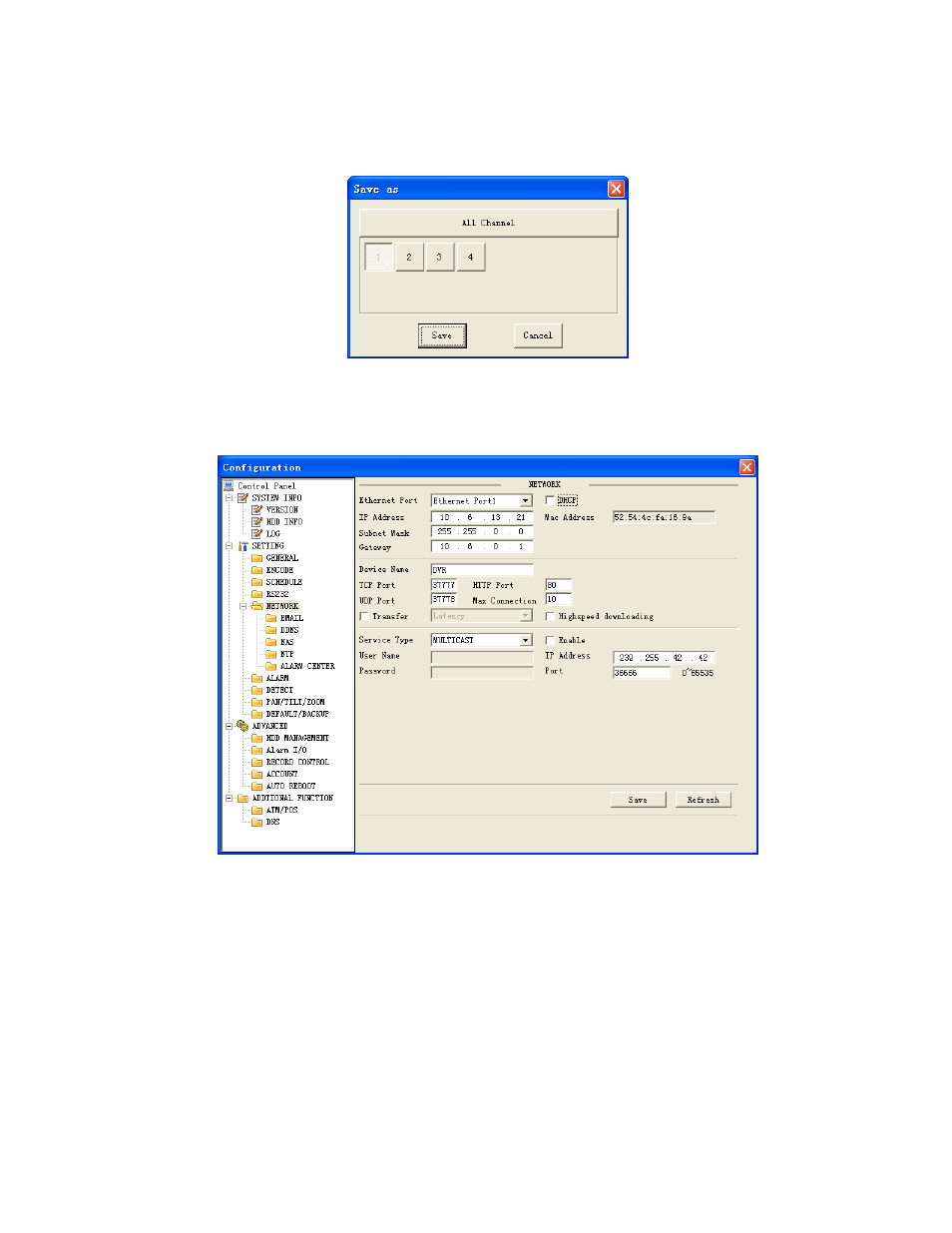

After you finished setup for one channel, you can click “save as” button, system pops up
the following interface. See Figure 7-31.Now you can copy one channel setup to other
channels.
Figure 7-31
z
Network
Network interface is shown as in Figure 7-32.
Figure 7-32
This interface includes the following items:
Max address: Here you can set max connection amount. The value ranges from 0 to 10.
0 means no network connection is allowed.
TCP port: default setup is 37777. Please note port 37778 is for network UDP port use
only.
HTTP port: default setup is 80.
Transfer: here you can select the priority between fluency/video quality.
PPPoE
In remote item, enable PPPoE function and then input “PPPoE name” and “PPPoE
password” you get from your ISP (Internet service provider). See Figure 7-33.
