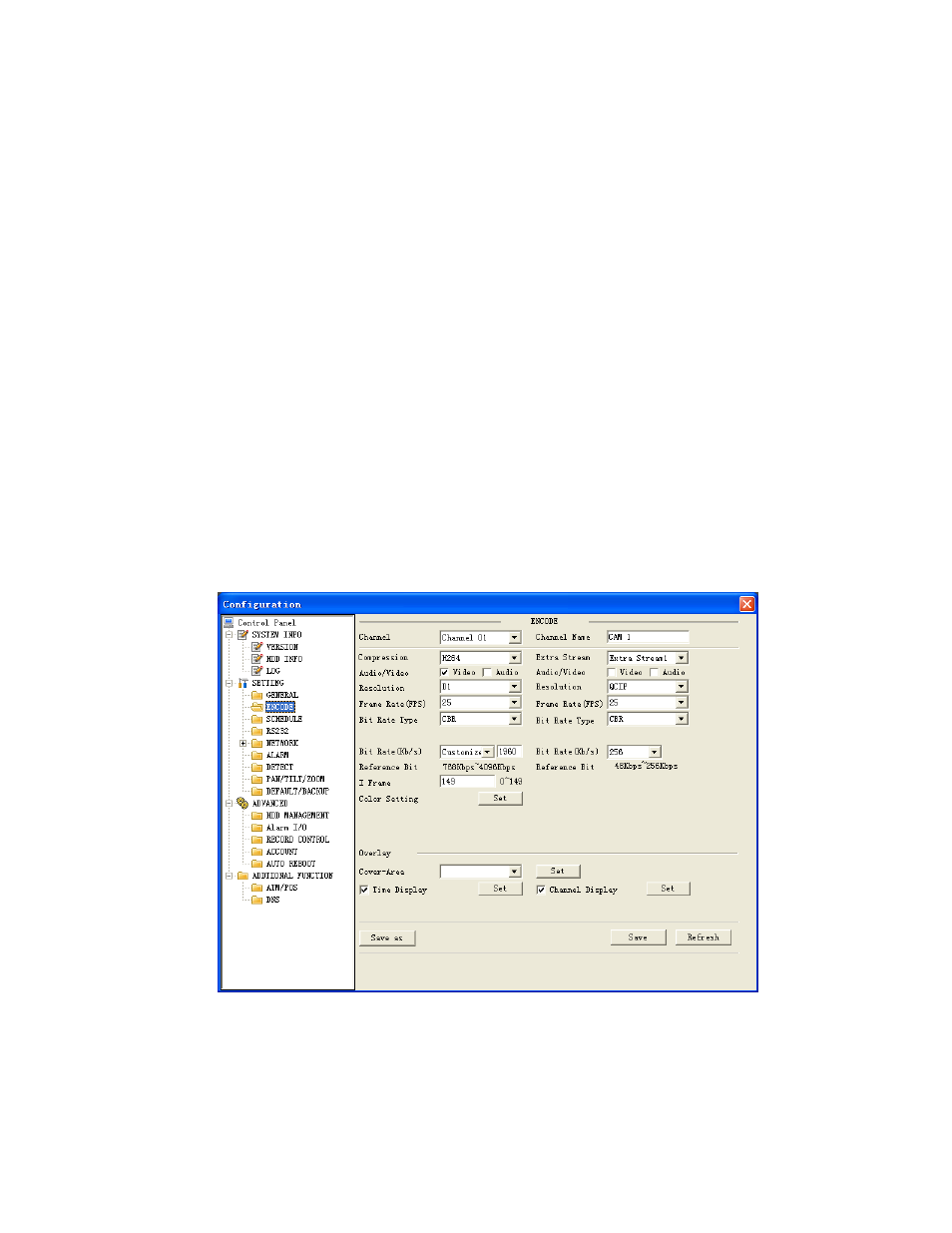

Encode setup includes the following items. See Figure 7-28.
Here you can select
Channel: Here is for you to select a channel.
Channel name: Modify channel name.
Data stream: Regular and extra data stream.
Video/Audio. System only displays video by default. You need to manually enable
audio function.
Bit rate: There are two options: CBR and VBR. You can only set video quality in
VBR mode.
Frame rate: The value ranges from 1f/s to 25f/s (PAL) and 1f/s to 30f/s (NTSC).
Compression: There are two options: H.264 and MPEG 4.
Resolution:
D1/HD1/DCIF/CIF
Quality: The value ranges from 1 to 6. The level 6 is the best video quality.
Color setting: you can set brightness /contrast ness /saturation/hue. The value
ranges from 0 to 100. Default value is 50.
Cover area: here you can set privacy mask zone position. System supports max 8
zones.
¾
Preview means current zone can not be seen in preview status.
¾
Monitor means current zone can not be seen in monitor status.
¾
All means current zone can be seen in neither preview nor monitor.
Time display: Here you can enable time title display function.
Channel display: Here you can enable channel title display function.
Figure 7-28
z
Schedule
Schedule includes the following interface. See Figure 7-29.
