Pan/Tilt/Zoom

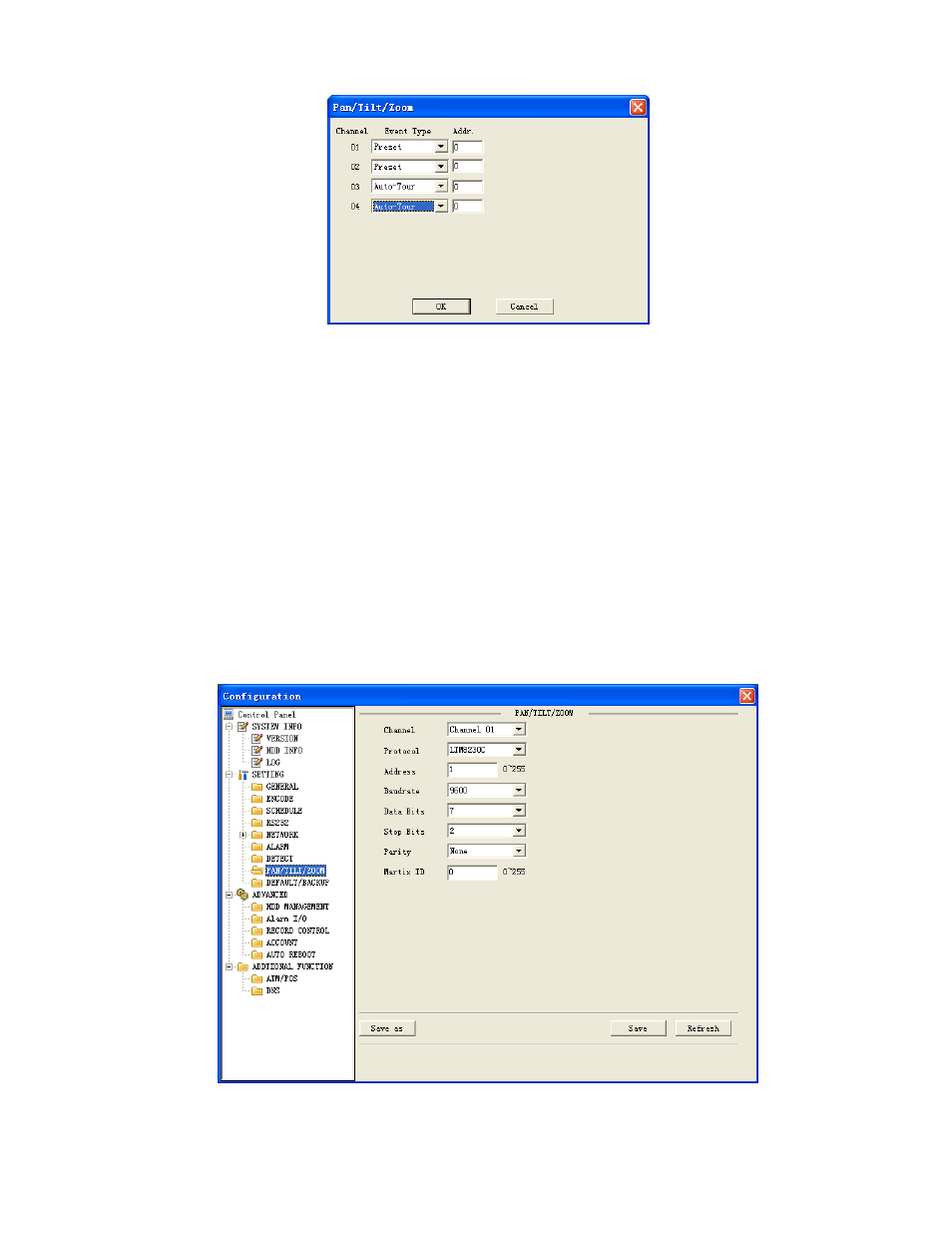

Pan/Tilt/Zoom interface is shown as in Figure 7-48.
Please note you have properly set dome address and all connections are right.
Channel: Select the dome connected channel.
Protocol: select the corresponding dome protocol.(such as Pelco)
Address: Set corresponding dome address. Default value is 1. Please note your
setup here shall comply with your dome address; otherwise you can not control the
speed dome.
Baud rate: Select the dome baud rate. Default setup is 9600.
Data bit: Default setup is 8.
Stop bit: Default setup is 1.
Parity: Default setup is none.
Matrix ID: Default value is 0. The value ranges from 0 to 255.
