REQUIRED CLEARANCES TO COMBUSTIBLE MATERIAL — in. (mm)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Duct Side of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 (51)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Bottom of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Vertical Discharge First 12 in. (305) of Supply Duct . . . . . . . 1 (25)
NECESSARY REQUIRED CLEARANCES — in. (mm)
Between Units, Control Box Side . . . . . . . . . . . . . . . . 42 (1067)
Unit and Ungrounded Surfaces, Control Box Side . . . . . . 36 (914)
Unit and Block or Concrete Walls and Other Grounded
Surfaces, Control Box Side . . . . . . . . . . . . . . . . . . . 42 (1067)
REQUIRED CLEARANCES FOR SERVICING — in. (mm)
Evaporator Coil Access Side . . . . . . . . . . . . . . . . . . . 30 (762)
Control Box Access Side . . . . . . . . . . . . . . . . . . . . . . 30 (762)
(Except for Necessary Requirements)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . 30 (762)
NOTES:
1. Clearances must be maintained to prevent recirculation of air from
outdoor-fan discharge.
2. Dimensions in (
) are in millimeters.
UNIT
50SX
CENTER OF GRAVITY (in./mm)
X
Y
Z
024
21.7/552
20.7/527
12.7/321
030
21.9/556
20.7/525
12.7/321
036
20.8/528
20.0/507
12.7/321
LEGEND
CG
— Center of Gravity
NEC
— National Electrical Code
COND — Condenser
REQ’D — Required
MAT’L — Material
UNIT
50SX
ELECTRICAL
CHARACTERISTICS
UNIT WT
CORNER WT (Lb/Kg)
Lb
Kg
A
B
C
D
024
208/230-1-60
270
123
67/30
62/28
99/45
42/19
030
208/230-1-60
273
124
66/30
64/29
100/45
43/20
036
208/230-1-60, 208/230-3-60, 460-3-60
291
132
80/36
54/25
112/51
45/20

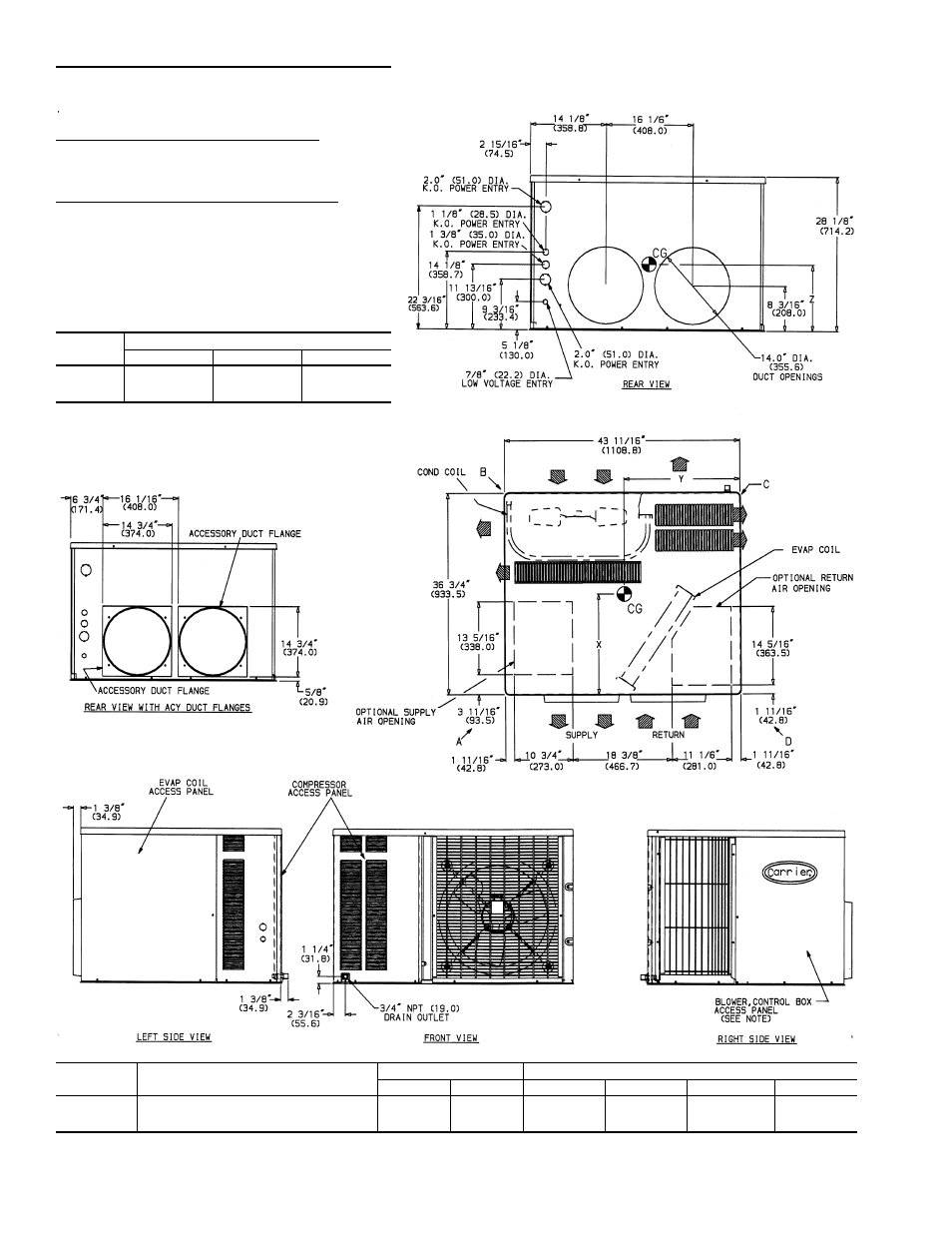

Fig. 6 — Dimensions; Units 50SX024-036 Without Base Rail
