REQUIRED CLEARANCES TO COMBUSTIBLE MATERIAL — in. (mm)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Duct Side of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 (51)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Bottom of Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Vertical Discharge First 12 in. (305) of Supply Duct . . . . . . . 1 (25)
NECESSARY REQUIRED CLEARANCES — in. (mm)
Between Units, Control Box Side . . . . . . . . . . . . . . . . 42 (1067)
Unit and Ungrounded Surfaces, Control Box Side . . . . . . 36 (914)
Unit and Block or Concrete Walls and Other Grounded
Surfaces, Control Box Side . . . . . . . . . . . . . . . . . . . 42 (1067)
REQUIRED CLEARANCES FOR SERVICING — in. (mm)
Evaporator Coil Access Side . . . . . . . . . . . . . . . . . . . 30 (762)
Control Box Access Side . . . . . . . . . . . . . . . . . . . . . . 30 (762)
(Except for Necessary Requirements)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . 30 (762)
UNIT
50SS
CENTER OF GRAVITY (in./mm)
X
Y
Z
018
19.6/499
21.7/551
10.6/269
024
22.5/570
20.9/530
10.0/254
030
22.1/561
20.3/516
10.0/253
036
21.2/538
19.9/506
9.9/251
042
21.3/540
19.9/506
11.3/286
LEGEND
CG
— Center of Gravity
NEC
— National Electrical Code
COND — Condenser
REQ’D — Required
MAT’L — Material
NOTES:
1. Clearances must be maintained to prevent recirculation of air from
outdoor-fan discharge.
2. Dimensions in (
) are in millimeters.
UNIT
50SS
ELECTRICAL
CHARACTERISTICS
UNIT WT
CORNER WT (Lb/Kg)
UNIT HEIGHT
(in./mm)
DIMENSION
(in./mm)
Lb
Kg
A
B
C
D
E
F
018
208/230-1-60
208
95
61/28
43/20
69/31
35/16
24.1/613
18.2/462
024
208/230-1-60
237
108
60/27
54/25
92/42
31/14
24.1/613
18.2/462
030
208/230-1-60, 208/230-3-60
254
115
61/28
58/26
96/44
39/18
24.1/613
18.2/462
036
208/230-1-60, 208/230-3-60, 460-3-60
270
123
75/35
48/22
109/50
37/17
24.1/613
18.2/462
042
208/230-1-60, 208/230-3-60, 460-3-60
300
135
81/40
57/26
117/53
45/20
28.1/714
22.2/563

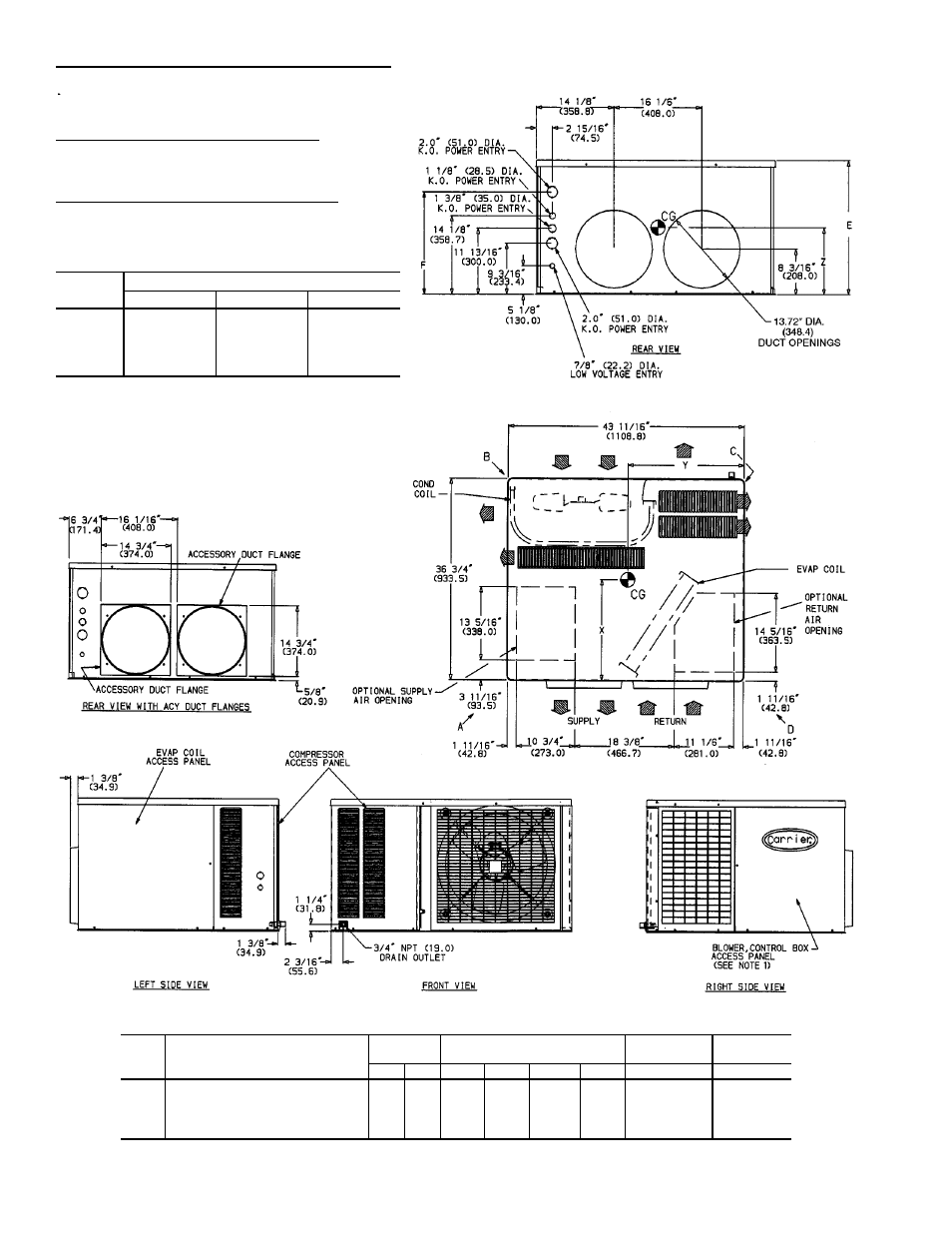

Fig. 2 — Dimensions; Units 50SS018-042 Without Base Rail
