Carrier 50SX024-060 User Manual
Page 25
LEGEND
IFO — Indoor Fan On
JW — Jumper Wire
C
— Contactor, Compressor
COM
— Common
CTD
— Compressor Time Delay
FU
— Fuse
HR
— Heater Relay
ICM
— Integrated Control Motor
IFO
— Indoor Fan On
PL
— Plug
TRAN — Transformer
Field Splice
Terminal (Marked)

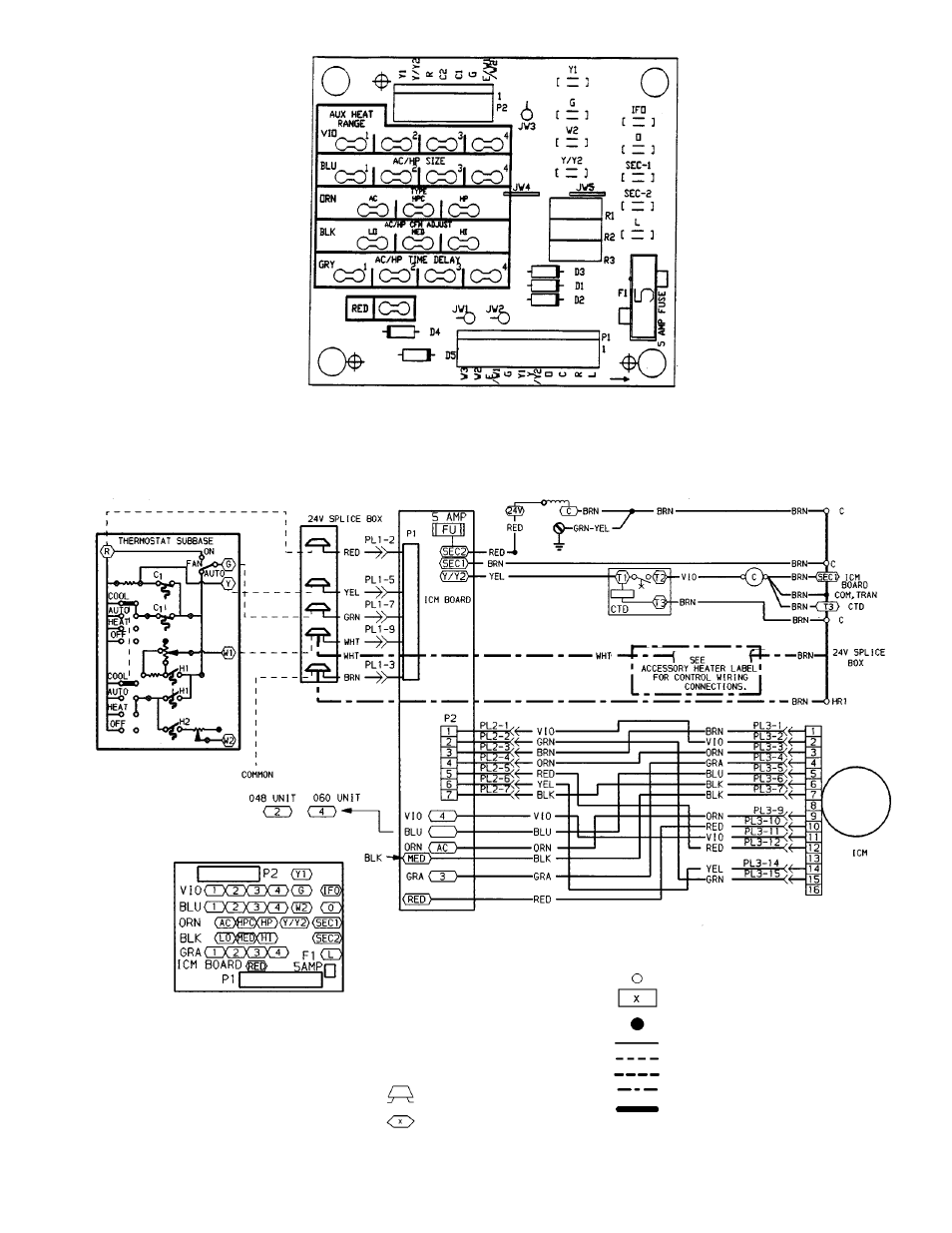

Fig. 33 — Units 50SX048,060 — 208/230-1-60, Integrated Control Motor Wiring Schematic
Fig. 32 — Easy Select Interface Board
LEGEND
Terminal (Unmarked)
Terminal Block
Splice
Factory Wiring
Field Control Wiring
Field Power Wiring
Accessory or Optional Wiring
To Represent Common Potential Only.
Not to Represent Wiring
25
