Carrier 50SX024-060 User Manual
Page 5
REQUIRED CLEARANCES TO COMBUSTIBLE MATERIAL — in. (mm)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Duct Side of Unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 (51)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Bottom of Unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Vertical Discharge First 12 in. (305) of Supply Duct . . . . . . . . . . . . 1 (25)
NECESSARY REQUIRED CLEARANCES — in. (mm)
Between Units, Control Box Side . . . . . . . . . . . . . . . . . . . . 42 (1067)
Unit and Ungrounded Surfaces, Control Box Side . . . . . . . . . . . . 36 (914)
Unit and Block or Concrete Walls and Other Grounded
Surfaces, Control Box Side . . . . . . . . . . . . . . . . . . . . . . 42 (1067)
REQUIRED CLEARANCES FOR SERVICING — in. (mm)
Evaporator Coil Access Side . . . . . . . . . . . . . . . . . . . . . . . 30 (762)
Control Box Access Side . . . . . . . . . . . . . . . . . . . . . . . . . 30 (762)
(Except for Necessary Requirements)
Unit Top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Side Opposite Ducts . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 (762)
UNIT
50SS
CENTER OF GRAVITY (in./mm)
X
Y
Z
048
21.7/550
19.7/501
15.7/400
060
22.0/560
19.9/506
15.7/399
LEGEND
CG
—
Center of Gravity
NEC
—
National Electrical Code
COND
—
Condenser
REQ’D
—
Required
MAT’L
—
Material
NOTES:
1. Clearances must be maintained to prevent recirculation of air from outdoor-fan dis-
charge.
2. Dimensions in (
) are in millimeters.
UNIT
50SS
ELECTRICAL
CHARACTERISTICS
UNIT WT
CORNER WT (Lb/Kg)
Lb
Kg
A
B
C
D
048
208/230-1-60, 208/230-3-60, 460-3-60
352
160
87/40
73/33
136/62
56/25
060
208/230-1-60, 208/230-3-60, 460-3-60
379
172
70/32
104/47
125/57
80/36

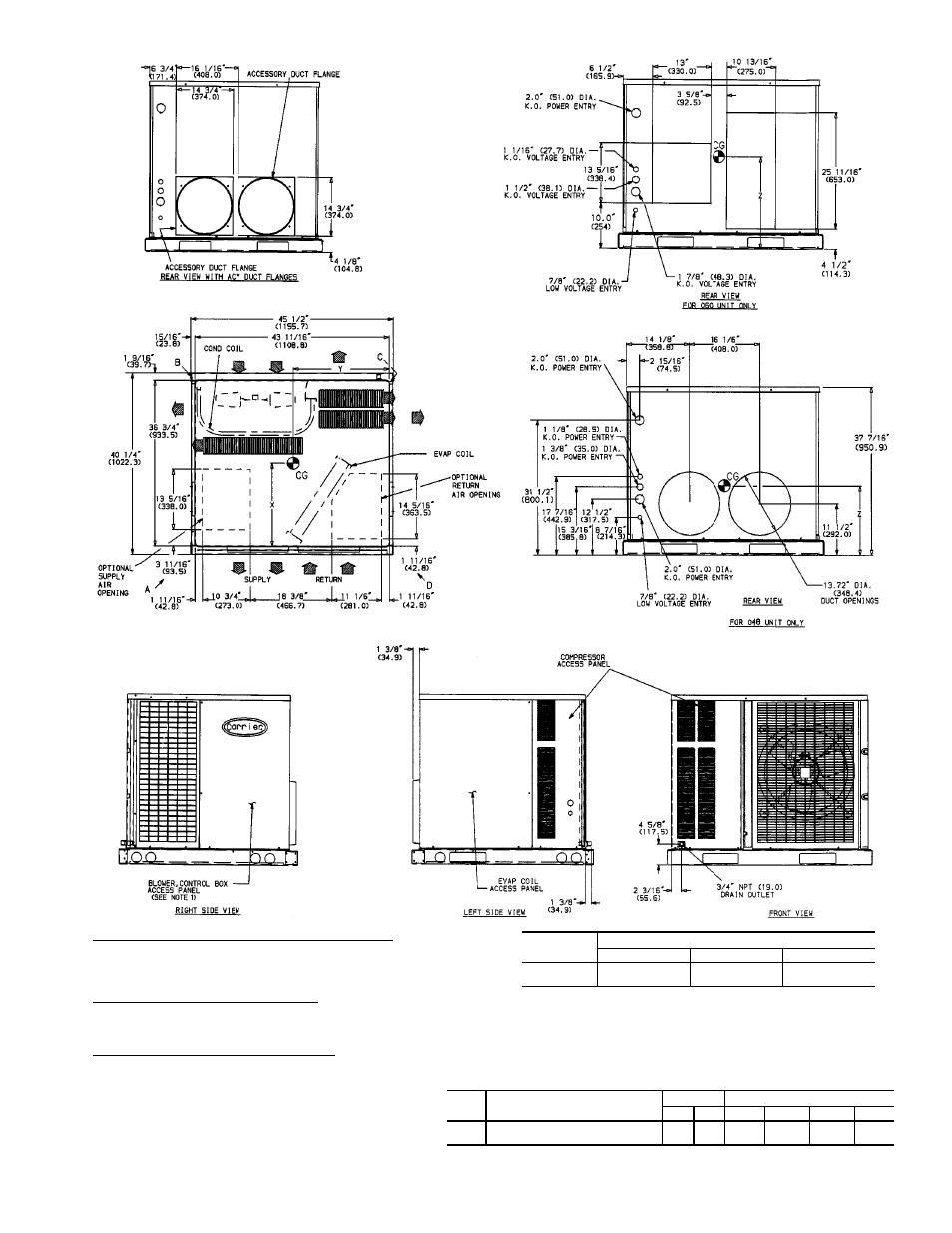

Fig. 5 — Dimensions; Units 50SS048,060 With Optional Base Rail
5
