Carrier 50SX024-060 User Manual
Page 12
PART NUMBER
‘‘A’’
FLAT
CURB
CPRFCURB001A00
8
Љ
[203]
CPRFCURB002A00
11
Љ
[279]
CPRFCURB003A00
14
Љ
[356]
NOTES:
1. Roof curb must be set up for unit being installed.
2. Seal strip must be applied as required for unit being installed.
3. Dimensions in [
] are in millimeters.
4. Roof curb is made of 16 gage steel.
5. Attach ductwork to curb (flanges of duct rest on curb).
6. Service clearance 4 ft on each side.
7.
direction of airflow.
8. Insulated panels, 1-in. thick, fiberglass 1-lb density.

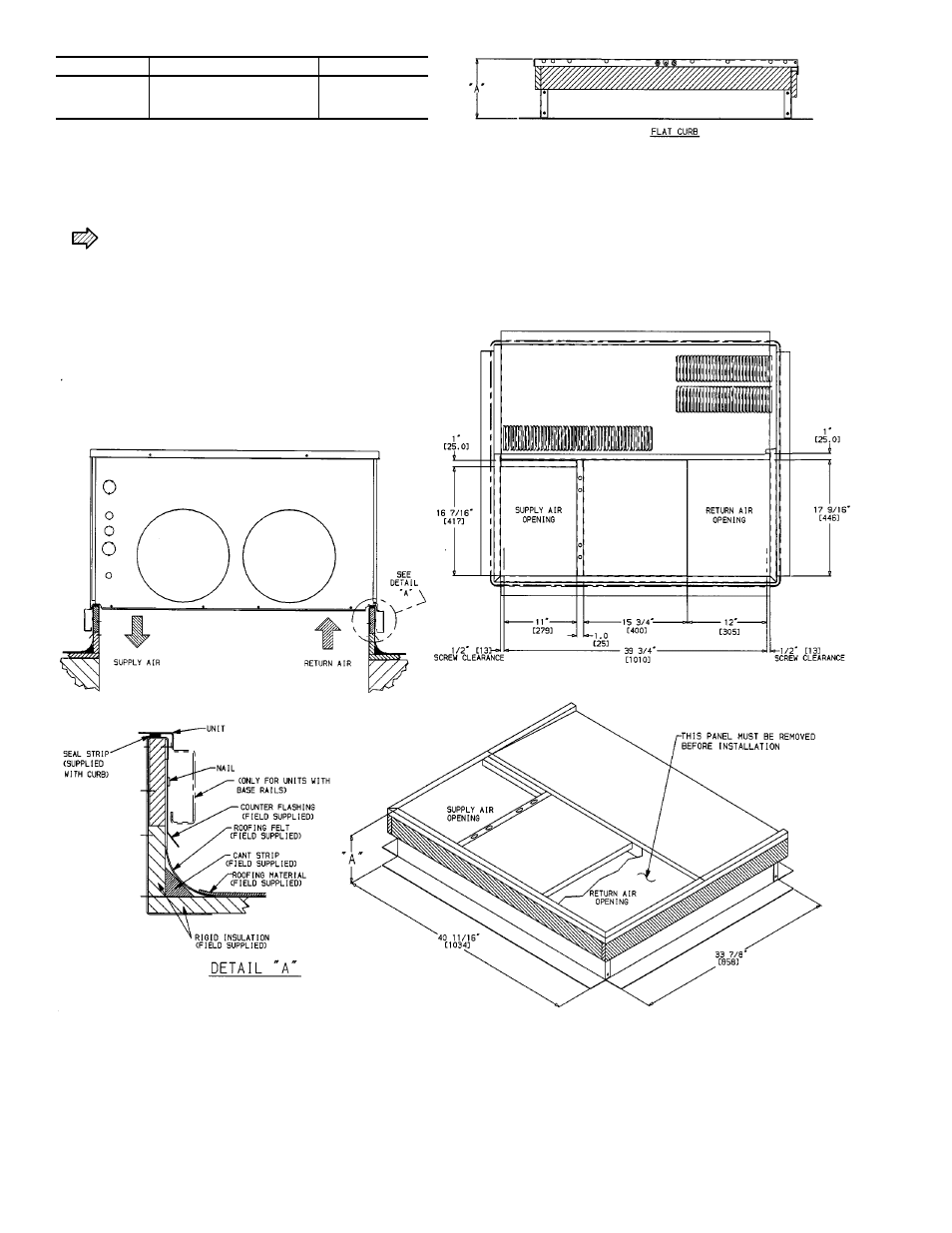

Fig. 10 — Roof Curb Dimensions
12
