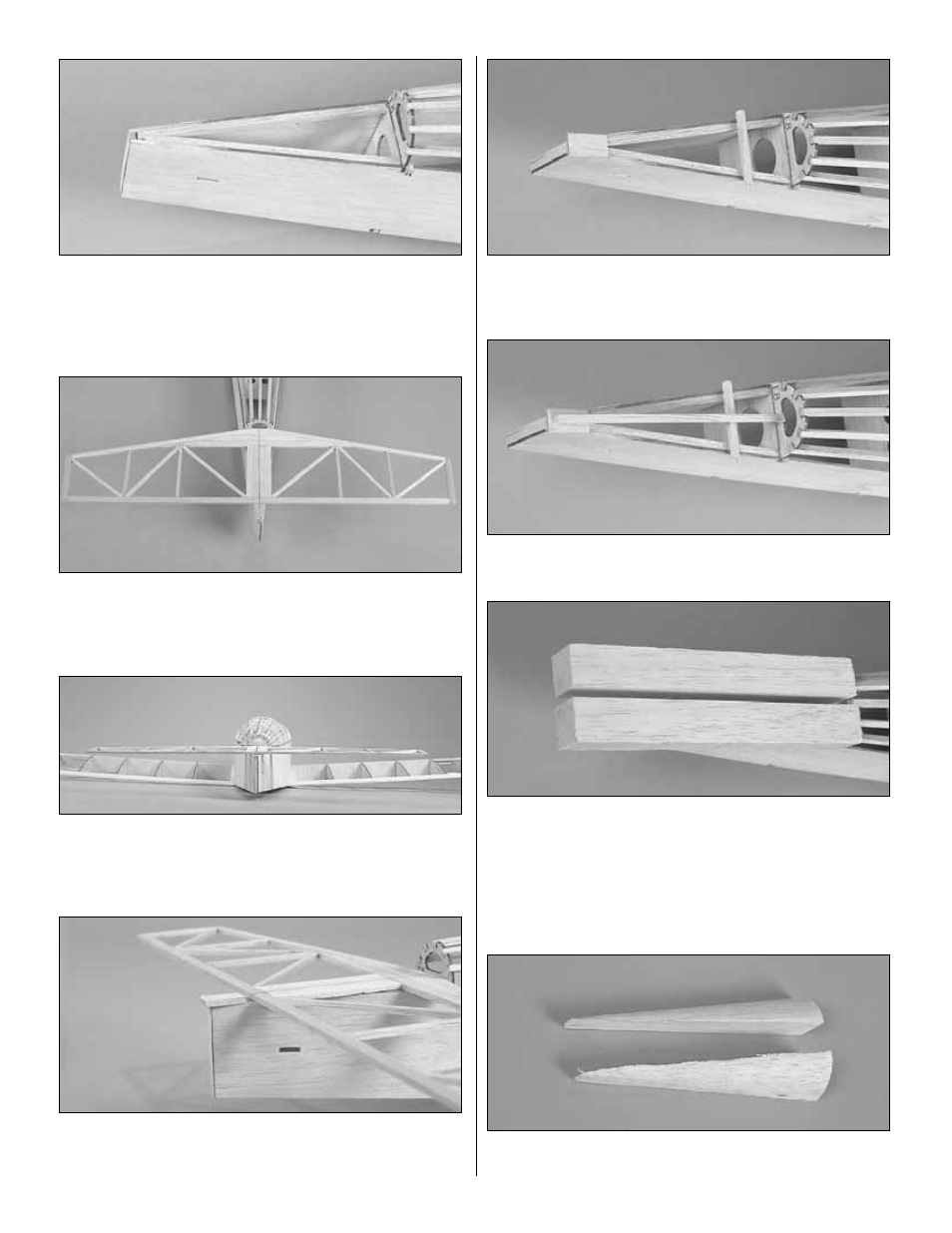

21. Use a leftover 1/8" x 1/8" [3.2 x 3.2mm] balsa stick to

reinforce the trailing edge of the fuse sides and where the
horizontal stab will be mounted. This will provide additional
gluing area.

22. Temporarily pin the horizontal stab to the fuselage,

making sure it is centered.

23. Hold the fuselage on the wing and check that the stab

is level with the wing. Lightly sand the stab mount as needed
to make it level with the wing.

24. Glue a filler stick cut from leftover 1/8" x 1/4" [3.2 x

6.4mm] balsa to the top of the fuselage, 3/16" [5mm] behind
the stab. Be careful not to glue the stab to the fuselage.

25.Tack glue a leftover 1/8" x 1/8" [3.2 x 3.2mm] balsa stick

across the front of the stab saddle area of the fuse.

26. Tack glue a 1/8" x 1/8" [3.2 x 3.2mm] balsa stick

centered on top of the sticks glued in the last two steps.

27. Cut the 3/4" x 3/4" x 12" [19 x 19 x 305mm] balsa stick

in half, making two 6" [152.5mm] pieces. Tack glue these to
the sticks as shown.

28. Using a razor plane and progressively finer grades of

sandpaper, shape the fillet blocks until they blend into and
follow the contour of the fuselage.

29. Cut the fillet blocks and false stab/fin off the aircraft.

Remove the sticks used to represent the stab and fin.
