6
1
3
7
8
9
4
14
5
2
6
11 12
1 3
10
1 Cowl
2 Fuselage
3 Fuel Tank Assembly
4 Wheel Pants (2)
5 Stabilizer and Elevators 6 Rudder
7 Engine Mount
8 3.5" Main Wheels (2)
9 Landing Gear Struts
10 Wing Joiner
11 Pull-Pull Cable
12 Tailwheel Assembly
13 Left Wing Panel with Aileron
14 Right Wing Panel with Aileron

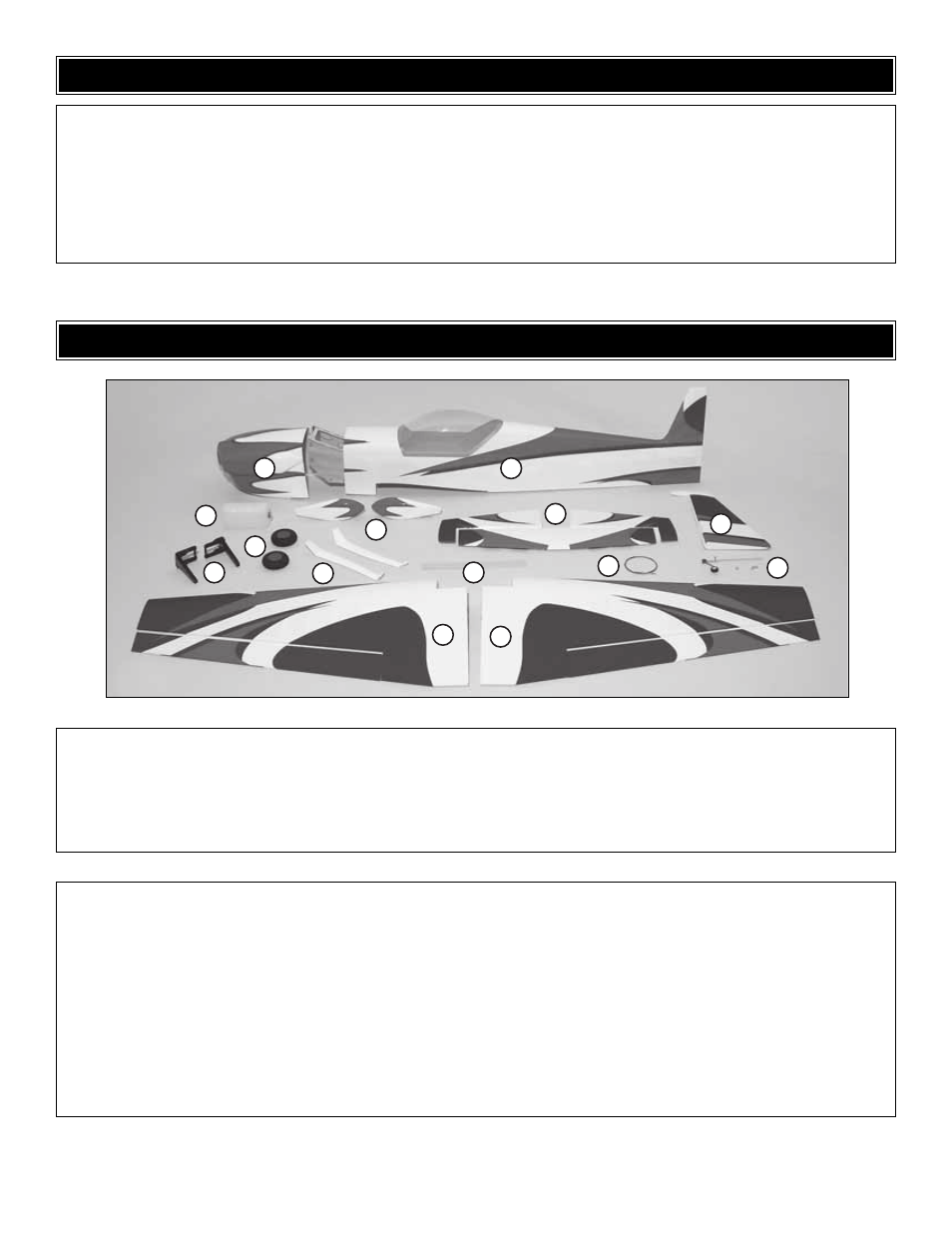

Kit Contents (Photographed)
4-40 Steel Clevis Threaded (8)
Solder Clevis for .095 Wire (6)
2x3/16" Bolt-On Axle Shaft (2)
Brass Quick Connector (1)
4-40 Blind Nut (4)
4-40 Hex Nut (8)
6-32 Blind Nut (6)
8-32 Blind Nut (4)
1/4-20 Blind Nut (2)
Nylon 1/4-20 x 2" Bolt (2)
Nylon Clevis (1) Heavy Duty Control Horn (6)
Quick Connector Retainer (1)
1/4" Clevis Retainer (13)
#2 x 3/8" Screw (4)
#4 x 1/2" Sheet Metal Screw (30)
6-32 x 1/4" Socket Head Bolt (4)
3/16" Wheel Collar (4)
#6 Flat Washer (6)
#4 Flat Washer (10)
#2 Flat Washer (12)
#8 Lock Washer (8) #8 Flat Washer (8)
#6 Lock Washer (6)
.074 x 12" Wire Threaded One End (1)
.095 x 5.75" Wire Threaded One End (6)
4-40 x 1/4" Socket Head Cap Screw (1)
4-40 x 1/2" Socket Head Cap Screw (4)
6-32 x 1-1/4" Socket Head Cap Screw (6)
8-32 x 1-1/4" Socket Head Cap Screw (4)
8-32 x 1" Socket Head Cap Screw (4)
2-56 x3/8" Machine Screw (8)
Kit Contents (Not Photographed)
KIT CONTENTS
Before starting to build, take an inventory of this kit to make sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly,
contact Great Planes Product Support. When reporting defective or missing parts, use the part names exactly as they
are written in the Kit Contents list on this page.
Great Planes Product Support:
Telephone: (217) 398-8970, ext. 5
Fax: (217) 398-7721
E-mail: [email protected]
KIT INSPECTION
