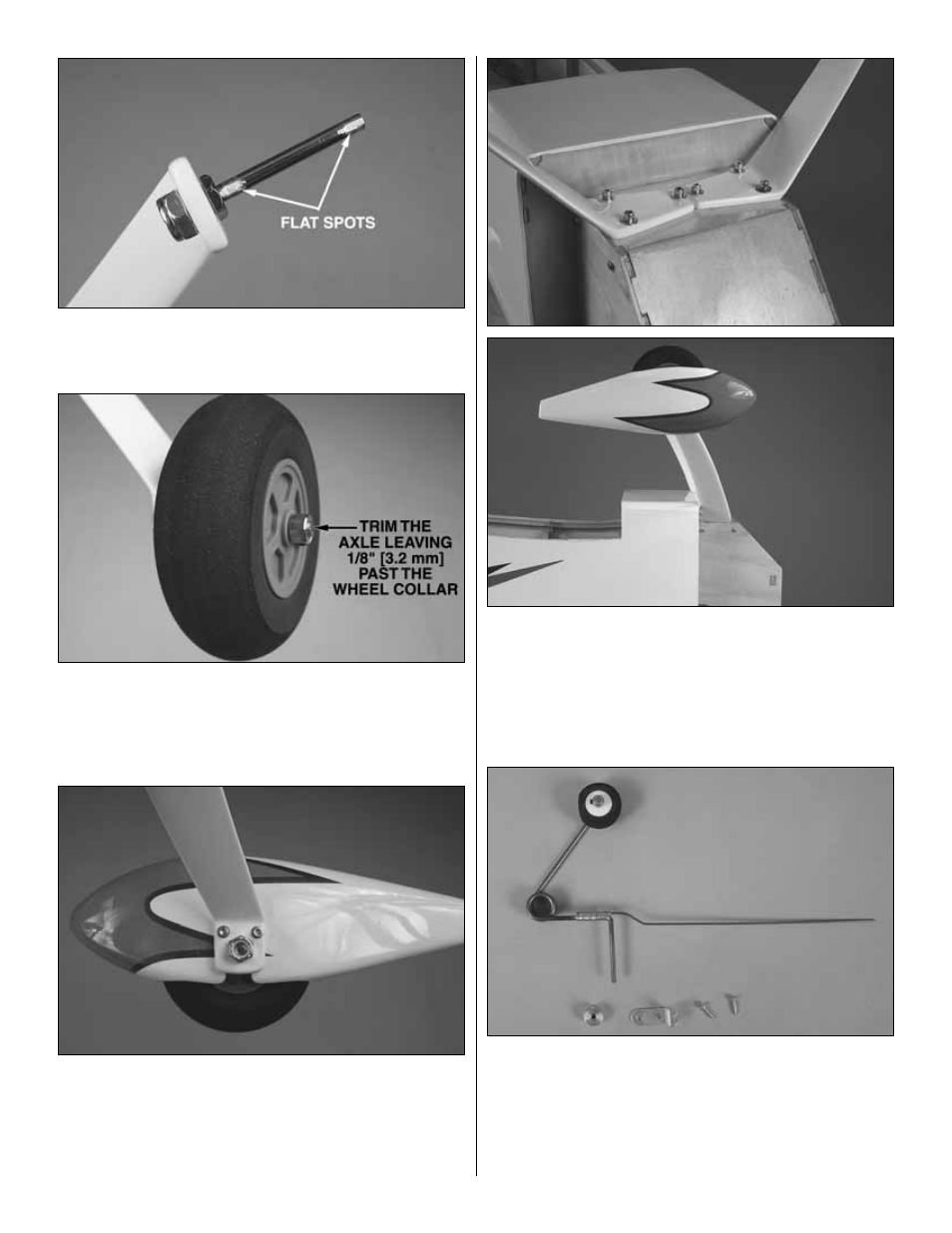

3. File flat spots on the wheel axle where the wheel
collar set screws will tighten down. A rotary tool with a flat
grinding disc works well for this.
❏ ❏
4. Reinstall the wheel collars and main wheel. Apply a
small amount of thread locking compound to the wheel collar
set screws and tighten them in place. Trim off the excess
axle, leaving 1/8" [3.2 mm] extending past the wheel collar. A
rotary tool and cut off disc or flat file works best for this.
❏ ❏
5. Slide the fiberglass wheel pant over the main wheel
and align the holes in the main gear with the holes in the wheel
pant. Using two 4-40 x 1/2" [13 mm] SHCS, #4 lock washers
and #4 washers, attach the wheel pant to the gear leg. Add a
drop of Threadlocker to each 4-40 SHCS. Note the direction of
the gear leg in relation to the pant in the photo.
❏
6. Mount the left and right landing gear assemblies to the
fuselage using six 6-32 x 1-1/4" [32 mm] SHCS, six #6
washers, and six #6 lock washers as shown.
❏
7. Locate the tailwheel assembly, nylon tail gear
bearing, nylon rudder post, tail gear support, and large
wheel collar. If it has not already been done for you, slide
the 1" [25 mm] tailwheel and small wheel collar onto the tail
wheel wire as shown. Grind a flat spot on the wire as you did
with the main landing gear axles where the set screw
tightens down.
