Function select trim dial "trim dial – Futaba 4PL 2.4GHz FHSS User Manual
Page 60

CT
CT
CT

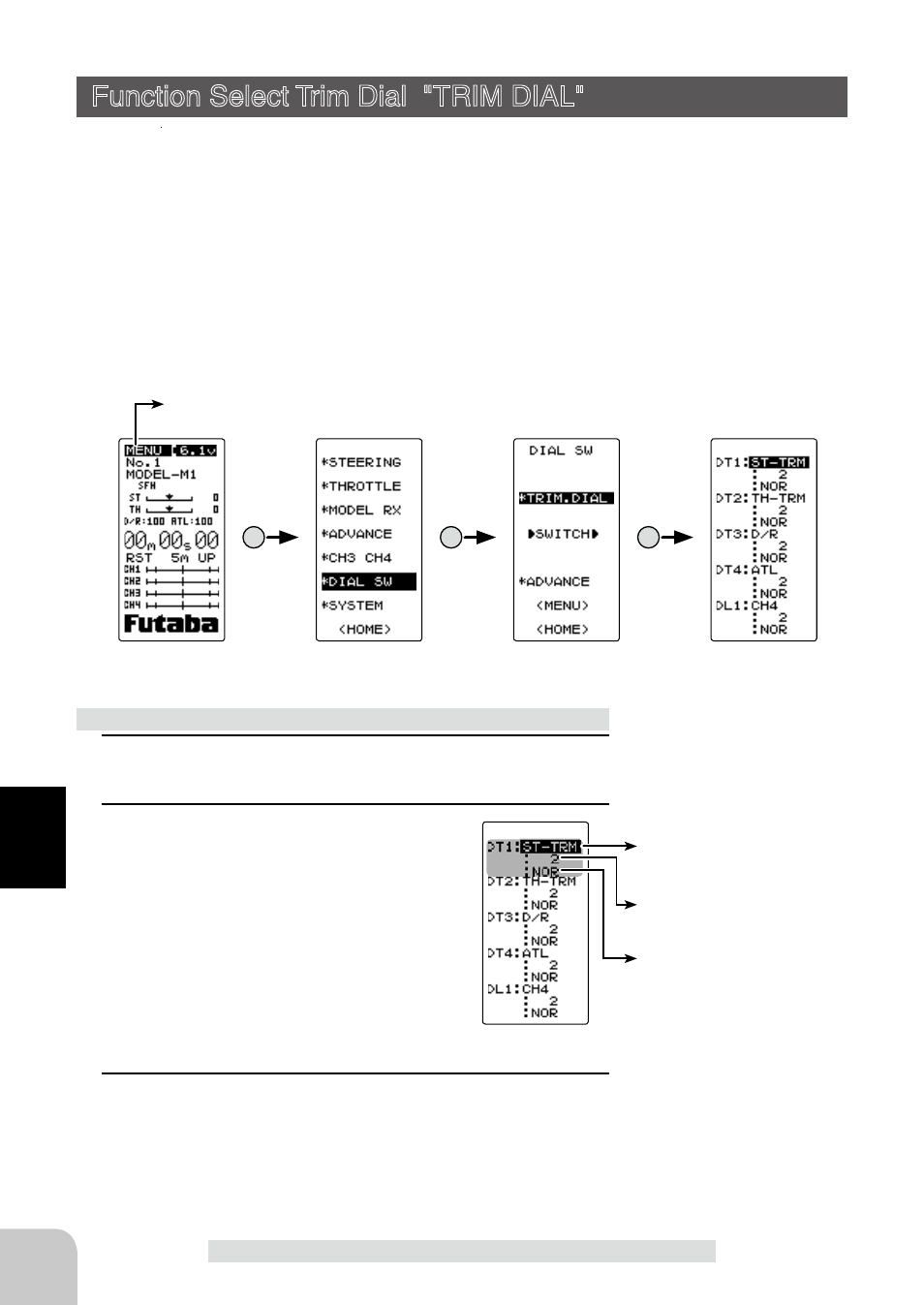

(HOME screen)
(MENU screen)
(DIAL SW screen)
(Function Trim Dial screen)
Select MENU
Function selection
Direction of operation setting
Step amount setting
60
Fu
n
c
tio
n
Function Select Trim Dial "TRIM DIAL"
Selection of the function to be performed by digital trim (DT1, DT2, DT3, DT4)
and dial (DL1) and step amount adjustment and operation direction reversal can be
performed by this function.
- The functions that can be assigned to dial and digital trim are listed on the next page.
- The step amount can be adjusted. (The relationship between set value and step
amount is shown in the table on the next page.)
- The direction of operation of the servos can be reversed. (NOR/REV)
Display the function select trim/dial screen by as follows:
1
(Setting dial/trim selection)
Select the dial or trim you want to set by (UP) or (DN) button.
2
(Function setting)
Select the function with the (+) or (-) button.
- Refer to the list on the next page for the abbreviations of the
functions.
(Step amount setting)
Select the step amount you want to set by
(UP) or (DN) button. Set the step amount
with the (+) or (-) button.
- Refer to the next page for the relationship between set value and step amount.
3
When ending setting, return to the DIAL SW screen by
pressing the (CT) button. To return to the menu screen, se-
lect
