+1 ~ +100
-1 ~ -100
Wheel operation
Mild
(Negative side) Quick
(Positive side)
Wheel operation
Ser
v
o
tr
a
v
el
(STEERING 1 menu screen) (STEERING 2 menu screen) (EXP curve screen)
D i s p l a y t h e
S T E E R I N G 1
menu by press-
ing (UP) or (DN).
D i s p l a y t h e
S T E E R I N G 2
menu by press-
ing (UP) or (DN).
STEERING menu screens
CT
Ver tical cur-
s o r m o v e s
i n s t e p w i t h
s t e e r i n g
wheel opera-
tion.
51
Fu
n
c
tio
n

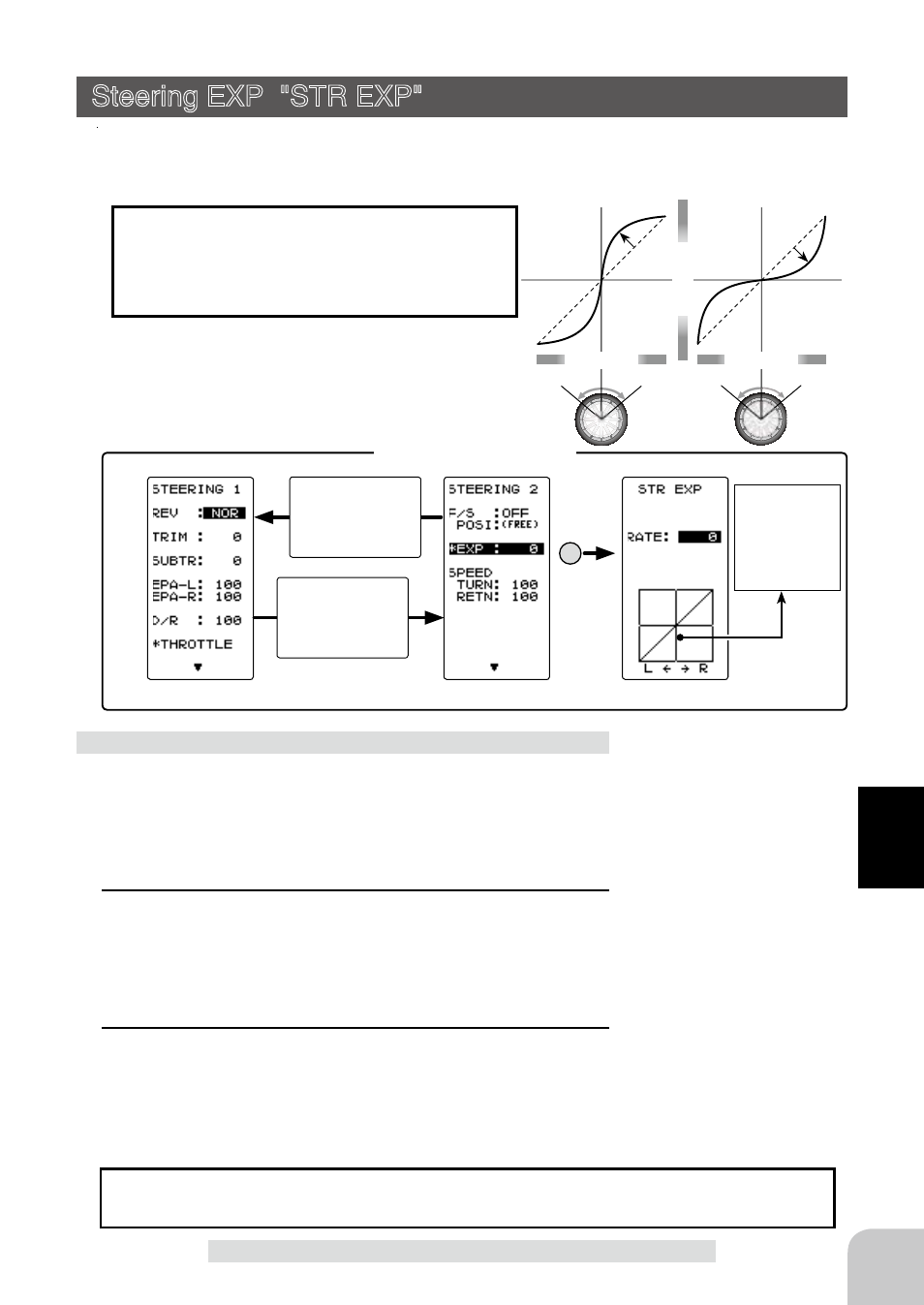

Steering EXP "STR EXP"
Steering EXP "STR EXP" (Steering system)
This function is used to change the sensitivity of the steering servo around the neutral
position. It has no effect on the maximum servo travel.
(Preparation)
- On the STEERING 1 screen, display the STEERING 2 screen
by (UP) or (DN) button and make the following adjustments:
For graph screen display, adjustment is also possible on the graph screen by referring to
the steering menu map of the preceding figure.
1
Select the setting item "*EXP" by (UP) or (DN) button. When
you want to quicken steering operation, use the (+) button to
adjust the + side. When you want to make steering operation
milder, use the (-) button to adjust the - side.
2
When ending adjustment, move the cursor to an item other
than "EXP" by (UP) or (DN) button and return to the menu
screen by pressing the (CT) button.
Steering EXP adjustment
When the setting is not determined, or the
characteristics of the model are unknown,
start with 0%. (When EXP is set to 0%, servo
movement is linear.)
Racers Tip
The steering EXP adjustment (RATE) can be controlled with digital dial or digital
trim. With the function select dial function. (See page 60)
Dial / Trim Setting
Adjustment range
-100~0~+100
Adjust button
- Adjust with the (+) and (-) but-
tons.
- Return to the initial value "0" by
pressing the (+) and (-) buttons
simultaneously for about 1 sec-
ond.
Refer to P44 and display the STEERING 1
menu and the steering EXP screen by the fol-
lowing method. When set to LEVEL1 by menu
level (P37), this function is not displayed.
