7
WelcomeCheck-In
01-01 09:00 Sun
suppor t@finger tec.com
R2
1 2 3
4 5 6
7 8
0 9
ESC
OK MENU
w
Q2i
suppor t@finger tec.com
12-01-01 SUN
suppor t@finger tec.com
H2i
suppor t@finger tec.com

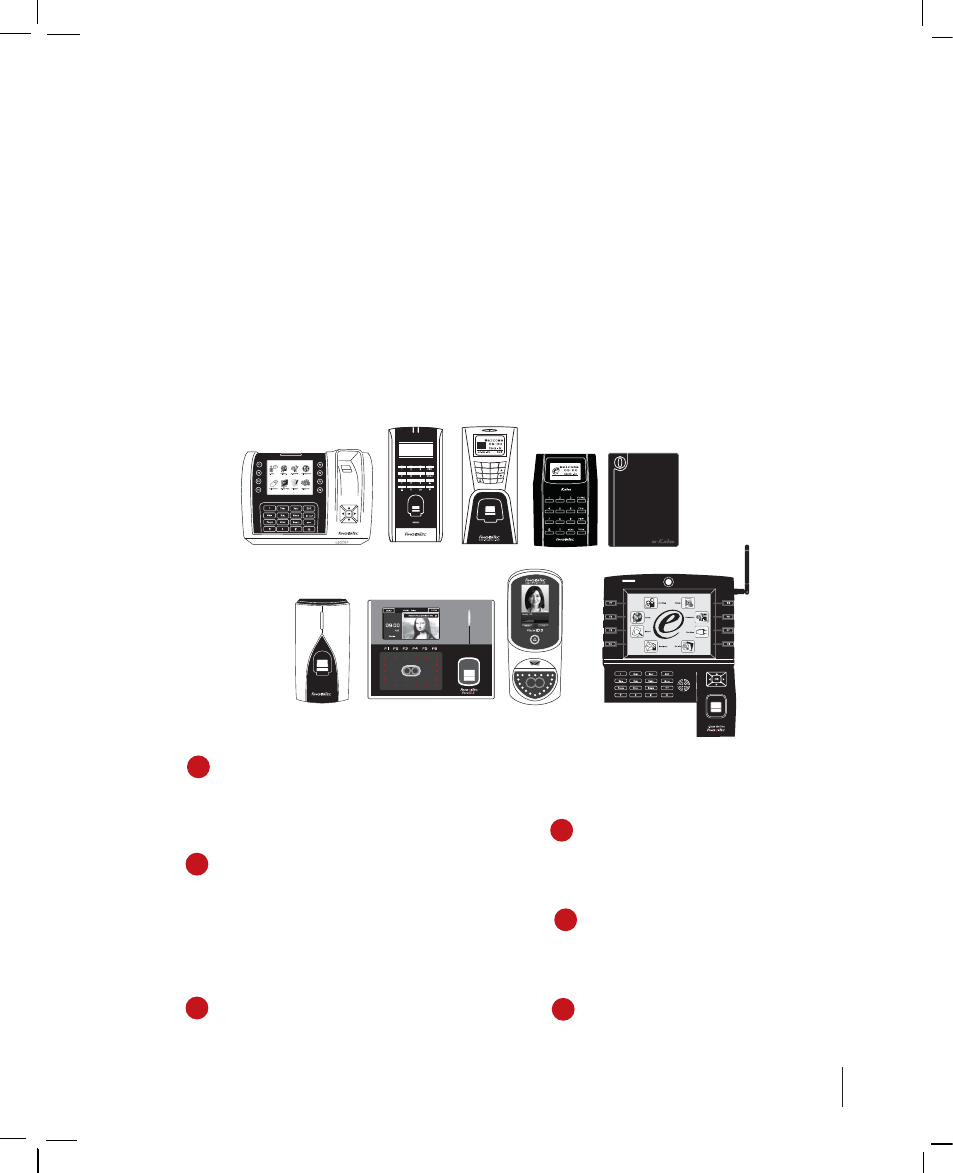

Q2i AC900 R2 Kadex m-Kadex
H2i Face ID 2 Face ID 3 i-Kiosk 100 Plus
Step 1 Look for the power input port on
the FingerTec terminal. Normally the con-
nection ports on the terminals are marked as
PWR/+12V (
red wire ) and GND (black wire).
Step 2
Convenient Installation: Look for the door
lock output port NO and GND from the
terminal.Secure Installation: Look for the
Wiegand output port, WDO (green), WD1
(white) and GND (black) from the terminal.
Step 3
Connect the wires from the terminals to
AdapTec Plus.
Convenient Installation: See diagram 1, page 8 for
details. Secure Installation: See diagram 2, page 8 for
details.
Step 4 Connect the wires from AdapTec-X
to the door lock system. (See diagram 1, page 8
for details). (Ignore this if you only want to use the sys-
tem for time attendance purposes)
Step 5 Connect AdapTec-X to a 12VDC
rechargeable backup battery. (See diagram 1,
page 8 for details). (This is optional. Ignore this if you
do not need any backup power).
Step 6 Connect AdapTec-X to a power
source (12VDC 3A).
DETAILS OF WIRING
AdapTec-X supports 2 types of installations, Convenient or Secure. You can select between
modes by applying different wiring arrangements during installation. Under Convenient
mode, AdapTec-X will unlock doors immediately after receiving responses from FingerTec
devices. This feature is supported by all FingerTec models.
For installations using Secure mode, there will be a 1s time delay when unlocking the door
after verification at FingerTec devices. This delay is due to the 26-bit Wiegand transmission of
encrypted password from device to AdapTec-X. This is an optional security feature provided
by AdapTec-X for users who favor more security (slight delay) over convenience (no delays).
AdapTec-X works with FingerTec terminals via an encrypted Wiegand signal to control the
door open-close mechanism. Please make sure you are using the following FingerTec models
that support the encrypted 26-bit Wiegand signal to work with the AdapTec-X to setup a
door lock system:
