5

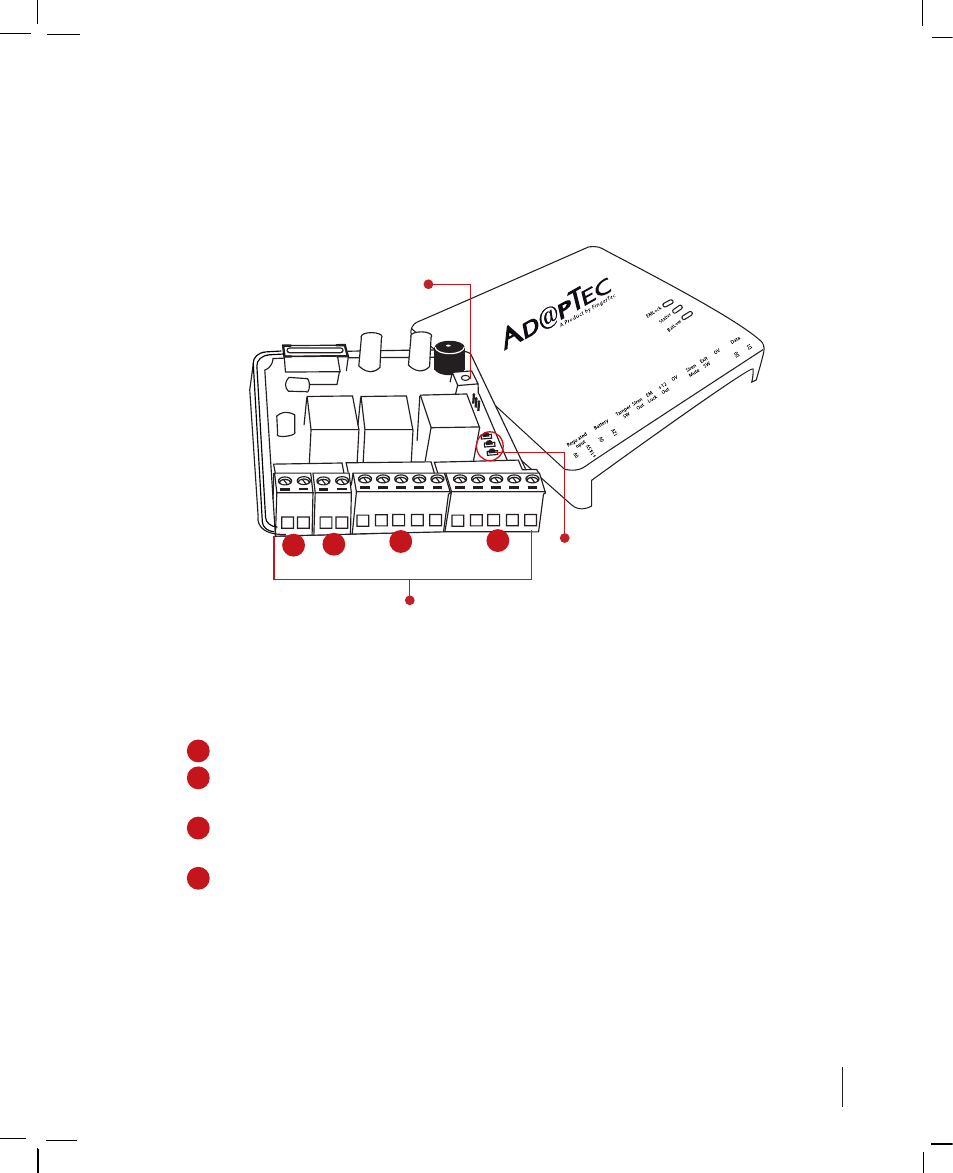

UNDERSTANDING THE DESIGN
Input/output connectors
1 These cables connect to the DC12V power from the power supply.
2 These cables connect to a DC12V rechargeable backup battery. During a power
failure, the backup battery will power up AdapTec-X.
3 These are the power output ports for AdapTec-X. Refer to the wiring diagram for
details.
4 These are the Wiegand data input ports for the FingerTec terminals. Refer to the
wiring diagram for details.
Door lock timer
LED status indicator
1 2 3 4
Input/output connectors
