10

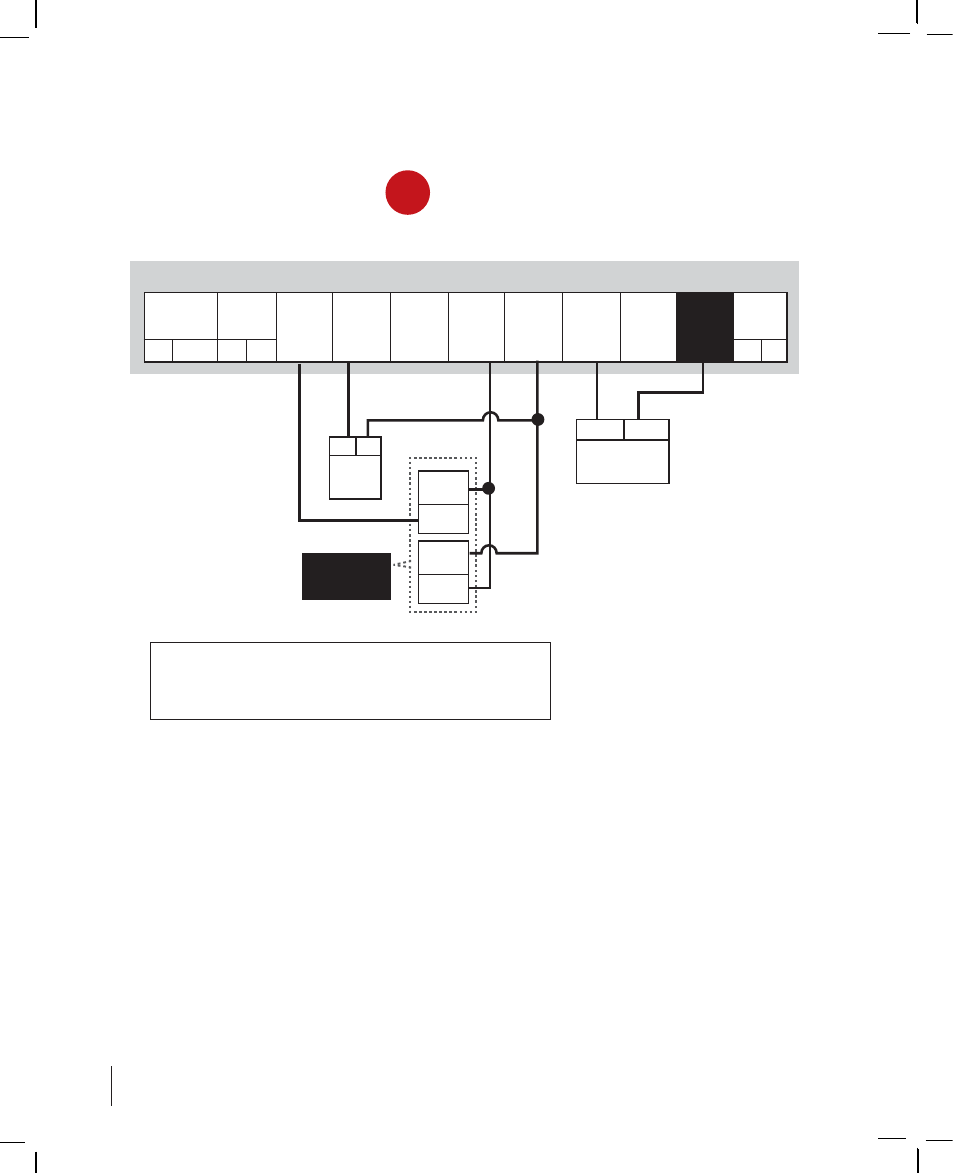

Connection
Points
Siren Mute
Button
AdapTec-X
Regulated Battery
Tamper Siren EM +12 OV Siren Exit
OV
Data
Input
SW Out Lock Out Mute SW
0V +14.5V 0V 12V D1 D0
GND
12V
COM2
NO2
Alarm
Siren
+ ---
Remark:
• Set Auto Alarm in terminal to N.
• Menu > Options > Sys Opt > Adv Opt > Auto Alarm > N.
WIRING DIAGRAMS
4
ALARM SIREN • Face ID 2, Q2i and i-Kiosk 100 Plus
Deactivating the Alarm Siren:
1. At the terminal, press Menu and select Turn Off Alarm to turn off the alarm siren.
2. To deactivate the alarm siren of AdapTec-X, press the Siren Mute Button that is
connected to AdapTec-X.
This will turn off the alarm siren function in AdapTec-X.
