5 • INSTALLATION & COMMUNICATIONS
CONNECTIONS AVAILABLE

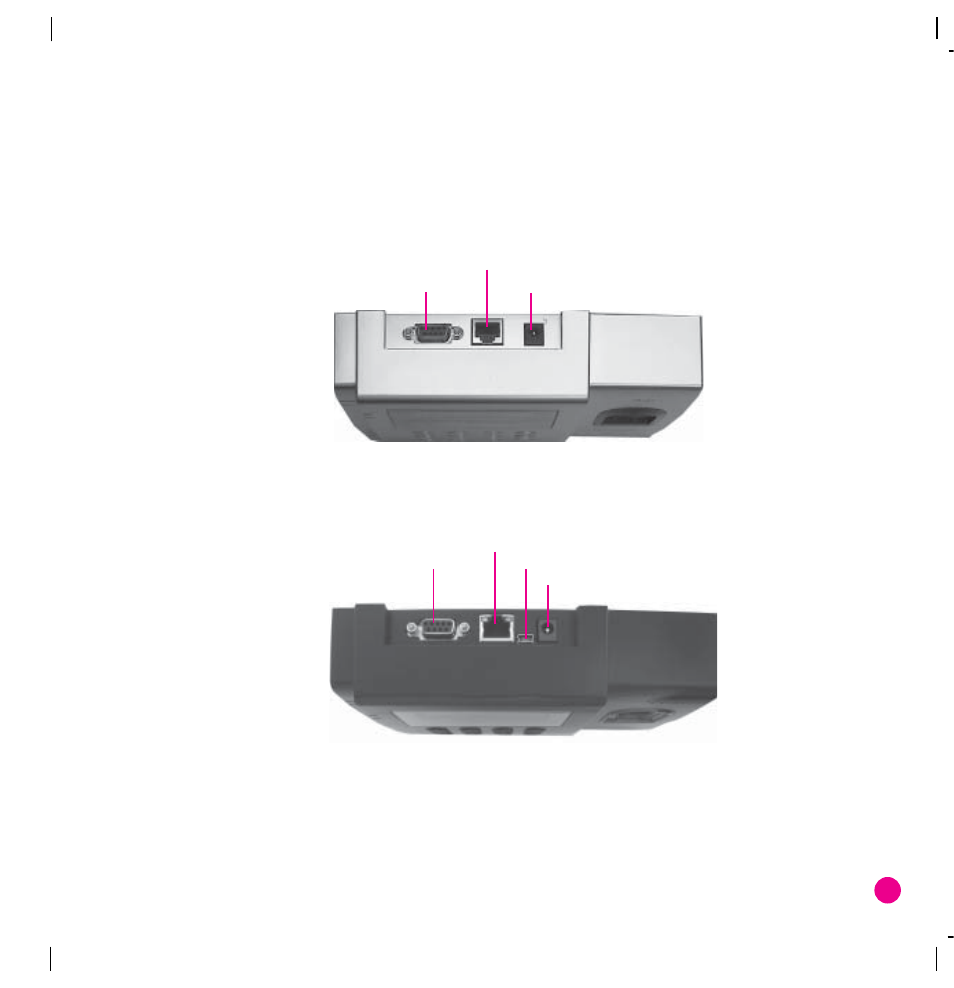

From the top side of the FingerTec® AC100 Model, there are three connections available.
• 2TCP/IP Port
1RS232/485 Port • • 3Power Adapter Port
If you are using AC100 Plus, there is a USB port available. You can connect the USB extention to
this port and connect to USB Flash Disk to transfer data from reader to computer.
• 2TCP/IP Port
1RS232/485 Port • • 4USB port
• 3Power Adapter Port
1 RS232/RS485 Port
RS232 is a serial communication cable use to connect from this port at one end to a serial
port of a PC at another end. RS485 cable extender should be connected to this port and the
other end should connect to an optional RS232/RS485 Data Converter before it can be
connected to the serial port of a PC.
