9 CONTENTS

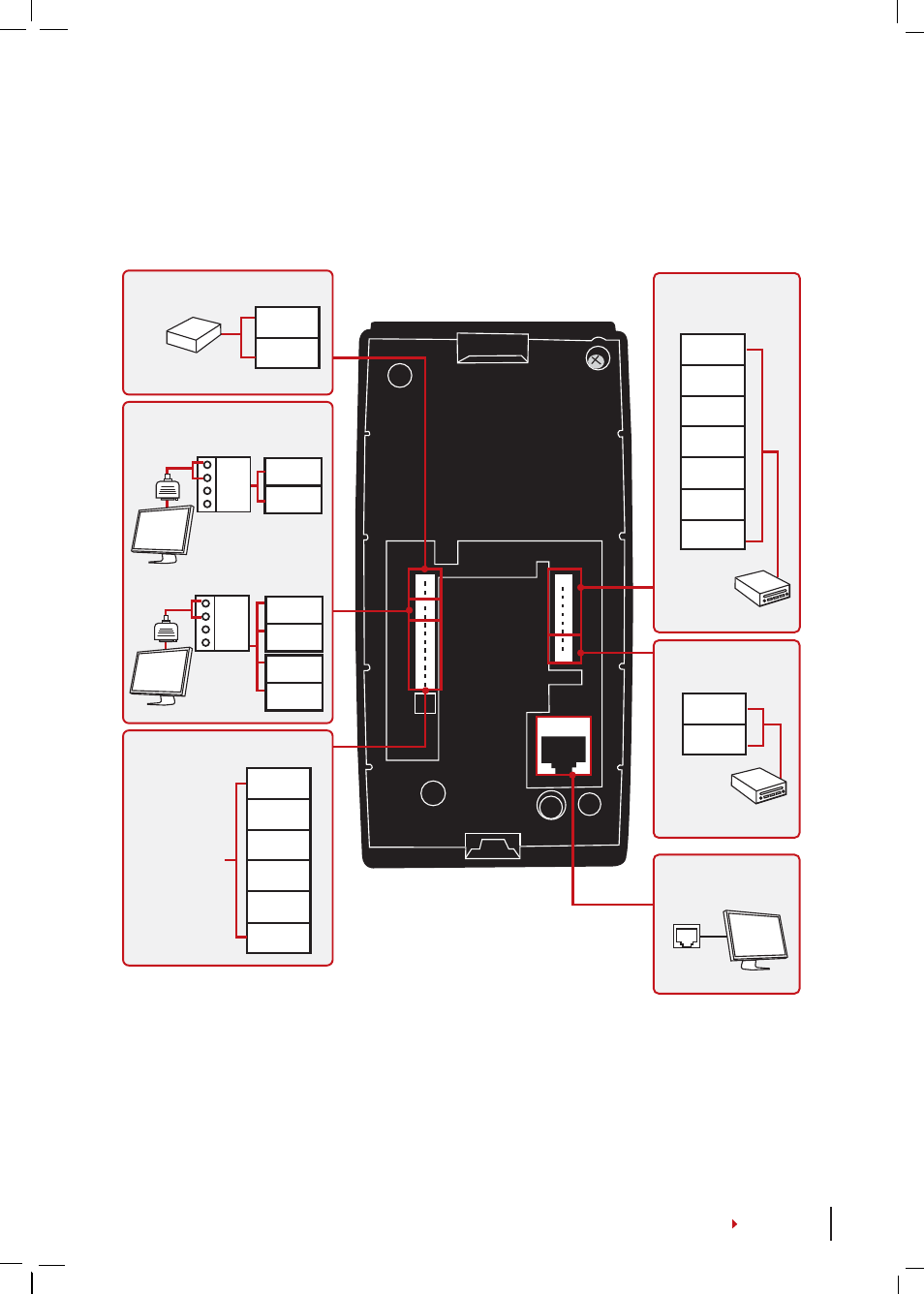

Back of Terminal
For NC or NO
door lock
system
GND
BUT
SEN
NO
COM
NC
ACCESS CONNECTION PORT
-
TCP/IP
DC12V
Power Supply
+12V
GND
POWER SUPPLYPORT
RS485 CONNECTION PORT
1. RS485 Single Connection
2. RS485 Network Connection
+12V
IWD1
IWD0
RLED
GLED
BEEP
GND
WIEGAND INPUT
CONNECTION PORT
3rd party
controller with
26 bits wiegand
output
WD0
WD1
WIEGAND OUTPUT
CONNECTION PORT
3rd party
controller with
26 bits wiegand
intput
TCP/IP PORT
(Ethernet Connection)
RX+
RX-
RS485 Data
Converter
485A
485B
485A
485B
485A
485B
RX+
RX-
RS485 Data
Converter
Communications
Connection points for power and communication are available on top of the termi-
nals. Refer to the following diagrams for the terminals you require.
