1
About This Guide
The purpose is of this document is to convey the necessary information to the designer to successfully use the
capabilities of the FMC-CE I/O expansion card.
Each feature is independently described and contains a connection table. This table includes the name of the
signal, its location on the FMC, the voltage at which it must be programmed by the FPGA, and a brief description
of its function. Where the term “any” is provided, the FPGA may provide use voltage as the FPGAs signals are
passed directly to the device and not through any level shifter.
FMC-CE Card
Overview
The FMC-CE card is meant to be used with a Xilinx demonstration/evaluation board equipped with an FMC
connector. This board extends the I/O capabilities of the base platform and provides an I/O consistency among
various platforms.

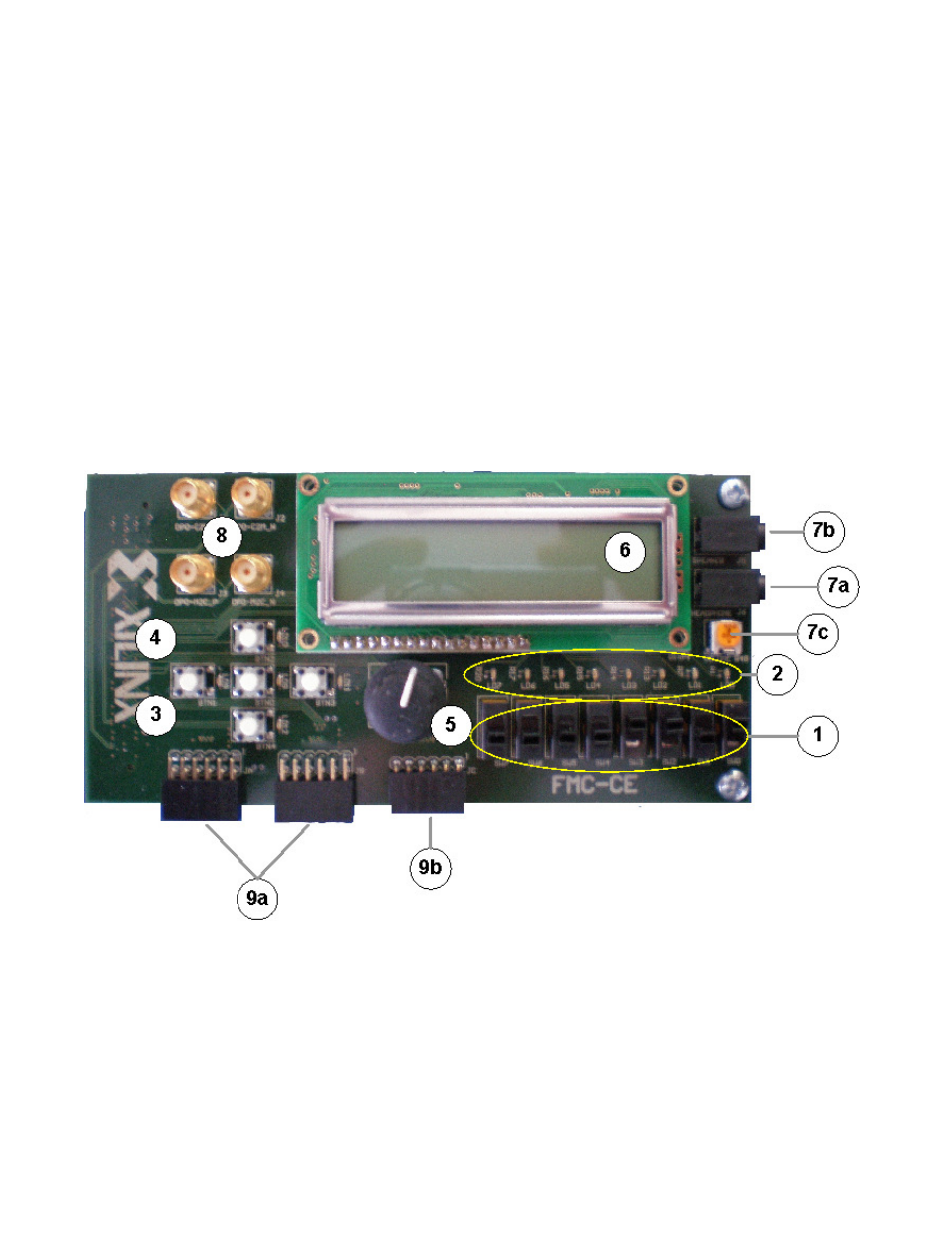

Figure 1. FMC-CE Card with Features Annotated
Features
The FMC-CE card provides the following features:
1) Linear array of 8 slide switches
2) Linear array of 8 LEDs co-located with the 8 slide switches
3) Rosetta pattern of 5 push button switches
