9.4 LX-218CA_net
system´s name
ID knob
amplifier´s channel
temperature
limiter monitoring

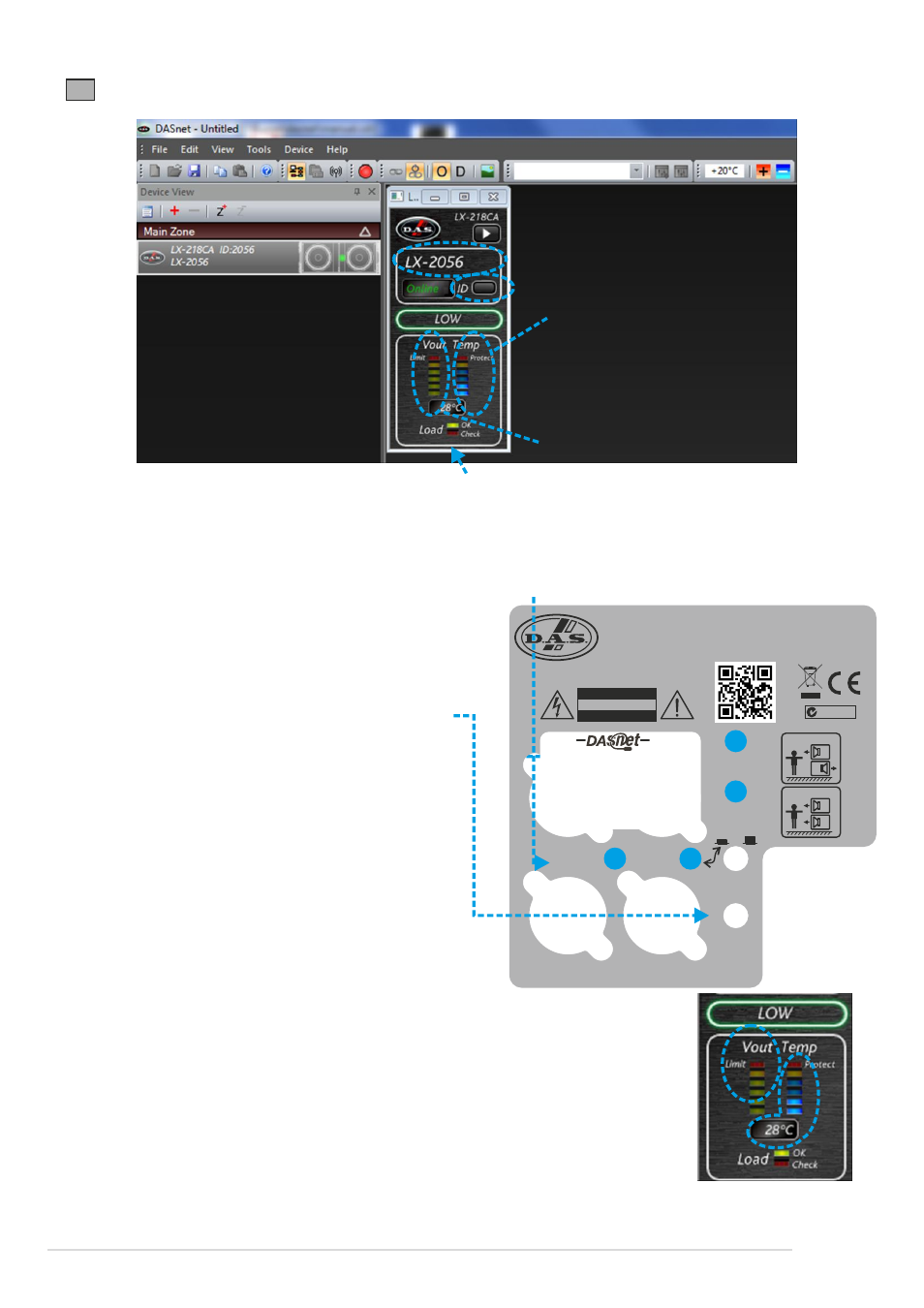

basic device view window
- System´s name: defined by the user on the properties window.
- The ID knob allows the user to identify the cabinet physically. The ID LED on the amplifier
will blink once per secong during a few seconds.
If communication is working the comms
LED will be blinking faster and permanently.
To identify the cabinet on the software the
user should press identify knob on the
amplifier panel; the device window will
blink on DASnet.
