9. DEVICE VIEW WINDOWS - cabinets
DASnet has been designed to monitor and control parameters on the connected devices. There
are two types of devices, cabinets and digital signal processors.
Cabinets
Road 12A_net
Road 15A_net
LX-218CA_net
Convert 15A
aero 40A
aero 20A Processors
DSP-2060A
DSP-4080
9.1 Cabinets - Road series

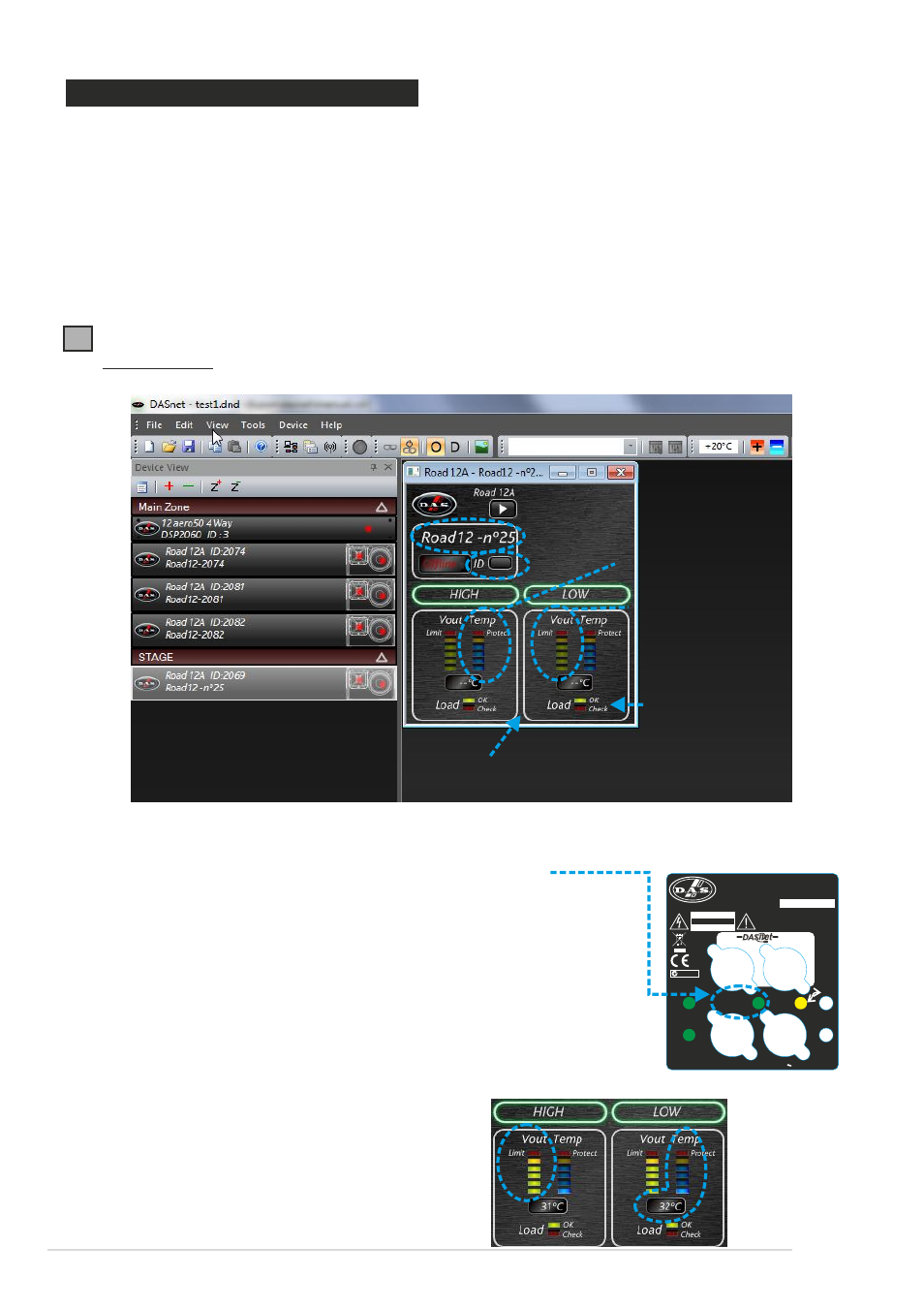

The basic window is activated just by a double click on the device. Example: Device number 25,
Road 12A
basic device view window
load monitoring
limiter monitoring
amplifier´s channel
temperature
system´s name
ID knob
DASnet - 24
- System´s name: defined by the user on the properties window.
- Amplifier´s channel: for each amplifier channel there is a vumeter referred to the limiter
threshold. There is also a temperature
vumeter that senses amplifiers temperature:
- The ID button allows the user to identify the cabinet physically. The ID LED on the
amplifier will blink once per second for a few seconds.
If communication is working the comms LED will be blinking
faster and continuosly.
This operation could be done the other way.
By pressing the identify knob on the cabinets
amplifier the device window on the left main
DASnet menu, will blink.
