9.2 Cabinets - Convert 15A

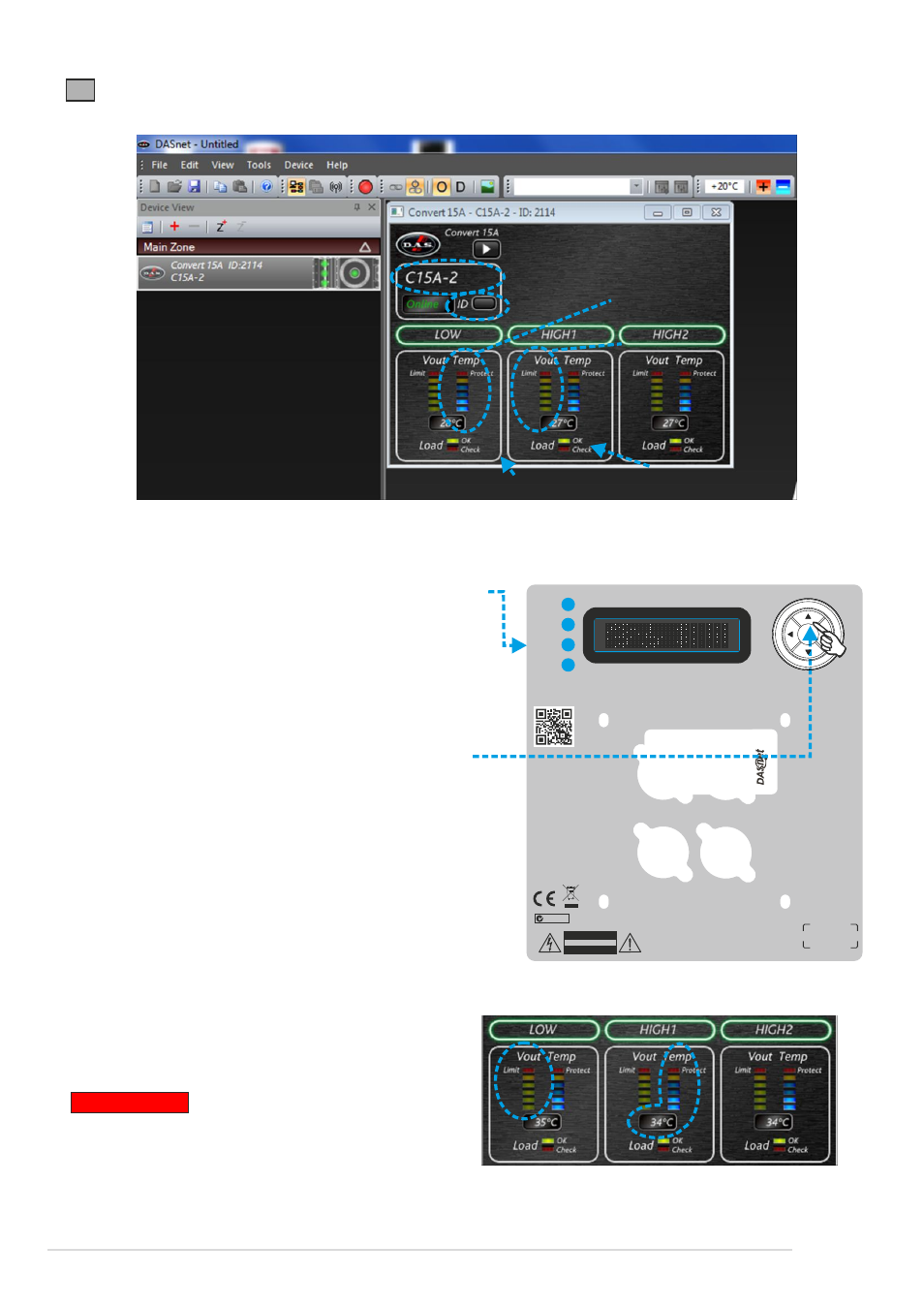

Convert 15 A basic view window; DASnet ID 2114:
basic device view window
load monitoring
limiter monitoring
amplifier´s channel
temperature
system´s name
ID knob
- System´s name: defined by the user on the properties window.
- The ID knob allows the user to identify the cabinet physically. The ID LED on the amplifier
will blink once per second duirng a few seconds.
If communication is working the comms
LED will be blinking faster and permanently.
SIGNAL
INPUT
CAUTION
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK DO NOT OPEN
D.A.S. AUDIO S.A. (Valencia) MADE IN SPAIN
N1918
IN OUT
LOOP
THRU
Convert 1560A
Digitally Convertible Dispersion
ON
IDENTIFY
/COMMS
SIGNAL
/LIMIT
AMP.
PROTECT
COVERAGE HIGH PASS FILTER
TO UNLOCK,
PRESS AND HOLD OK
FOR 2 SECONDS
MODE - NUMBER OF UNITS HF GAIN
IDENTIFY
ID DASNET
To identify the cabinet on the software the user
should press the button up on the “joystick” of
the Convert 15A panel; the device window will
blink on DASnet.
DASnet - 27
- Amplifier´s channel: for each amplifier channel there is a vumeter refered to the limiter
threshold. There is also a temperature
vumeter that senses amplifier´s chanel
temperature:
IMPORTANT: Convert 15A amplifier has been
designed to work up to 40ºC ambient
temperature at clipping conditions.
If amplifier´s temperature is over 60ºC the
internal fan will start working. If amplifier´s
temperature is over 70ºC output voltage on the
amplifier will be reduced to ensure its durability.
OK
