9.3 Cabinets - aero 40A

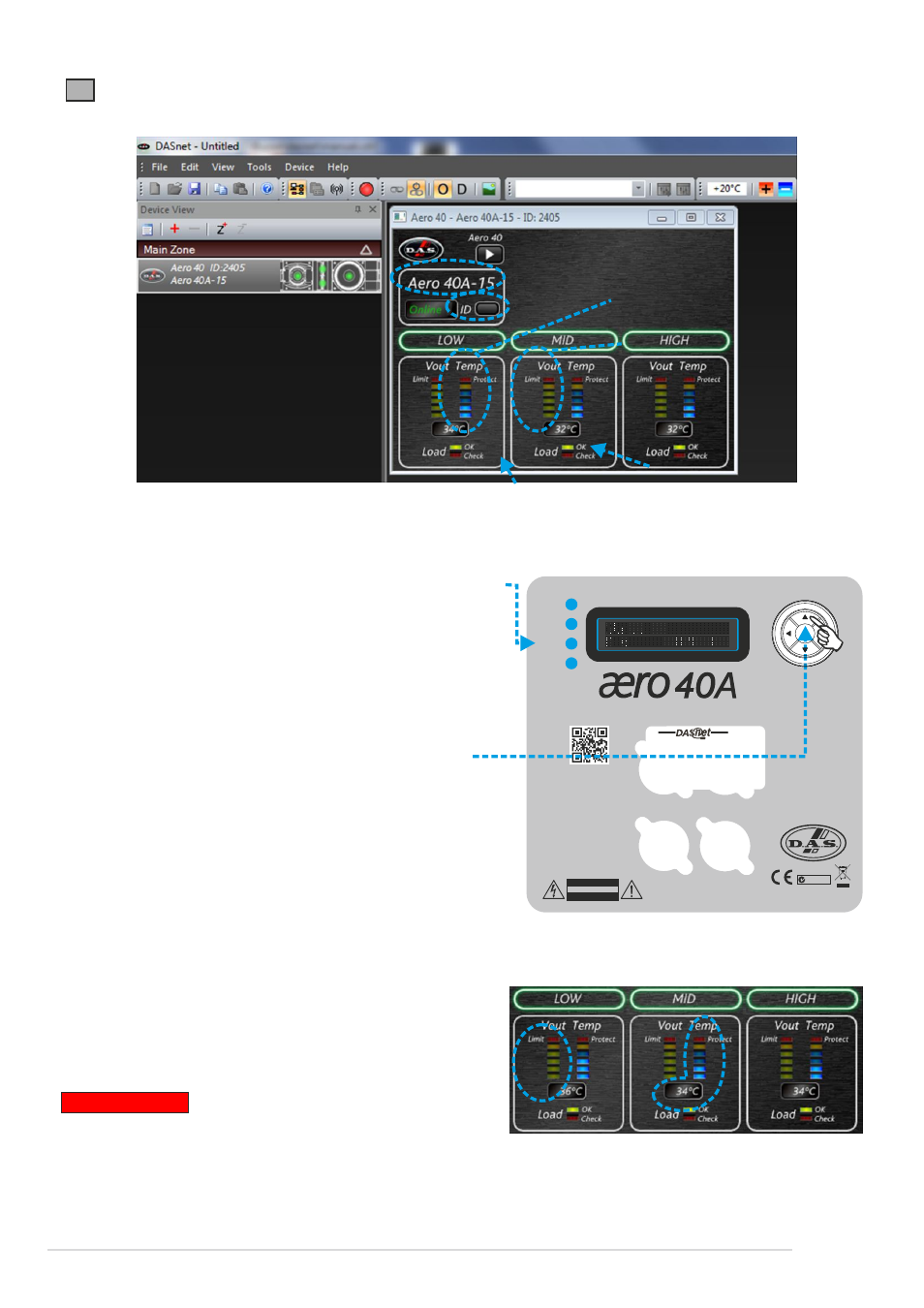

aero 40A basic view window; DASnet ID 2405:
- System´s name: defined by the user on the properties window.
- The ID knob allows the user to identify the cabinet physically. The ID LED on the amplifier
will blink once per second during a few seconds.
If communication is working the comms LED will
blink faster and permanently.
To identify the cabinet on the software the user
should press the button up on the “joystick” of
the Convert 15A panel; the device window will
blink on DASnet.
OK
DASnet - 31
- Amplifier´s channel: for each amplifier channel there is a vumeter refered to the limiter
threshold. There is also a temperature
vumeter that senses amplifier´s chanel
temperature:
IMPORTANT: aero 40A amplifier has been
designed to work up to 40ºC ambient
temperature at clipping conditions.
If amplifier´s temperature is over 60ºC the
internal fan will start working. If amplifier´s
temperature is over 70ºC output voltage on the
amplifier will be reduced to ensure its durability.
