7. OPTIONAL ACCESSORIES

7-1-1. CTCSS unit TSU-6

The

use

of the

optional sub-audible tone decoder TSU-6 al­

lows

for

CTCSS

Tone

Squelch

operation.

When

this

option

is

active

squelch

will

only

open

when

the

proper

tone

is

received.

Installation
Caution:-------------------------------------------------------------------------

Before installation be sure to disconnect the DC power sup­

ply, or battery or damage may occur to the equipment.

1. Remove the 2 screws securing the Top cover.

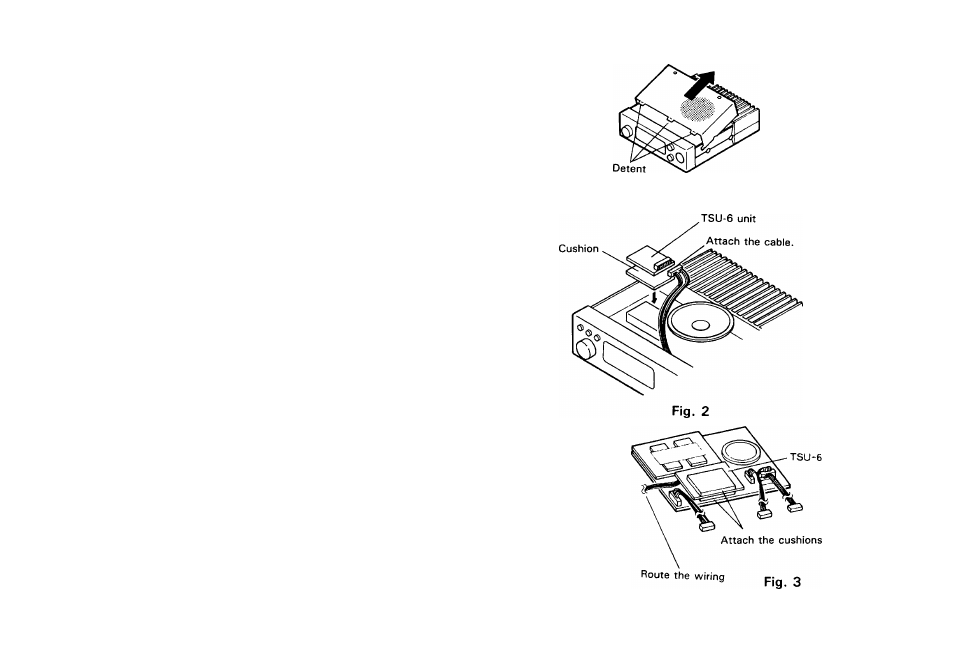

2. Gently remove the top cover. (Fig. 1)

3.

Remove the backing from the small cushion provided with

the

TSU-6

and

attach

it

to

the

back

of

the

TSU-6

as

shown in Fig. 2.

4. Attach the cable to the TSU-6 as shown in Fig. 2.

5.

Remove

the

backing

from

the

other

side

of

the

small

cushion

and

attach

the

TSU-6

to

the

transceiver

as

shown.

Note:-----------------------------------------------------------------------------

If

you

are

installing

the

DRU-1

attach

the

TSU-6

to

the

DRU-1 as shown in Fig. 3.

6.

Replace

the

cover

and

tighten

the

screws

to

complete

the installation.

Fig. 1

37
