Crestron Isys ® TPS-12B/W, TPS-15B/W & TPS-17B/W Tilt Touchpanels

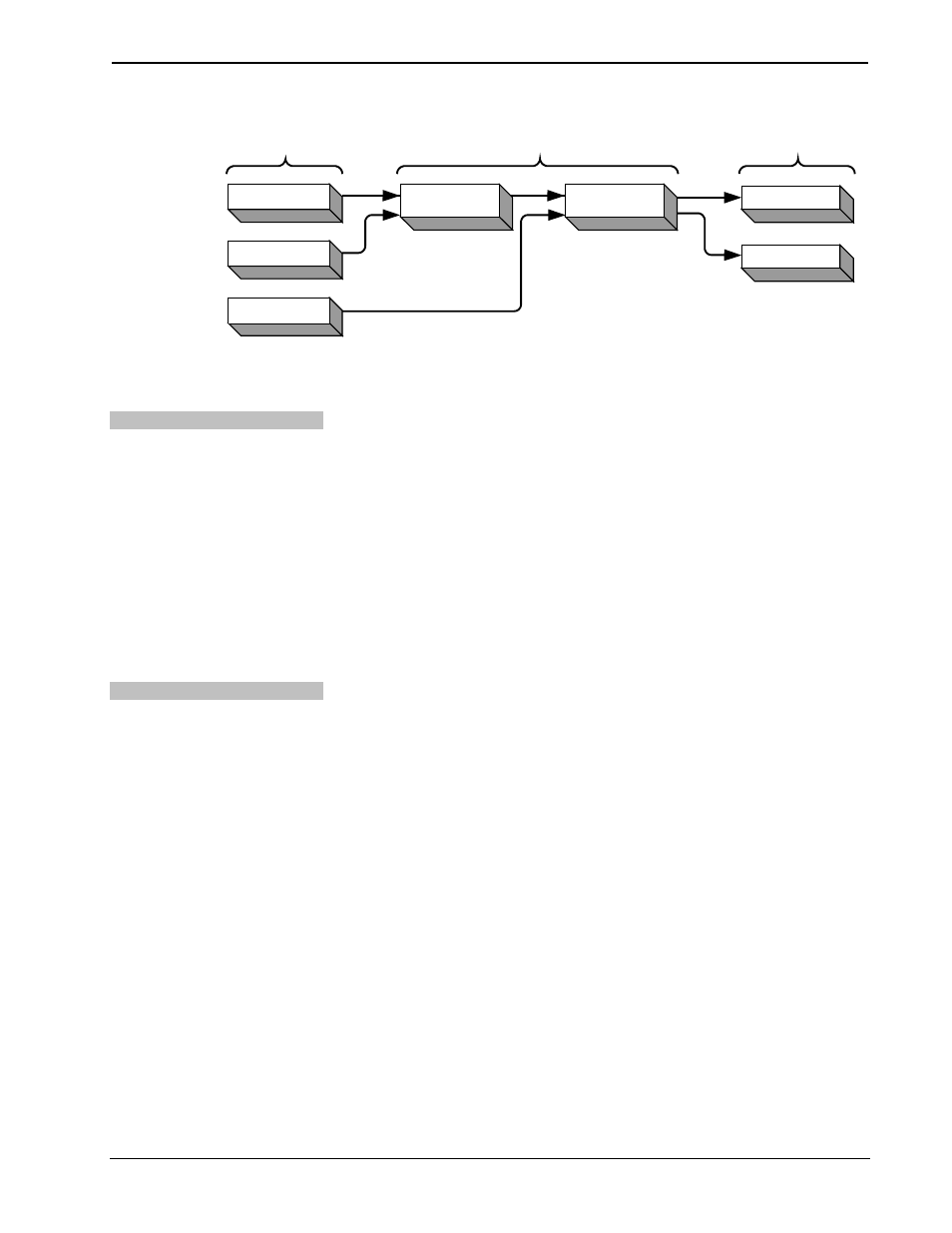

QM Network Topology
TPS-12/15/17 BW QM-TX
QM
QM QM
QM
QM
Origination Points Endpoints
QM
Midpoints
QM-FTDC
QM-MD7x2 QM-MD7x2
QM-WMC
TPS-12/15/17 BW
Identity Code
Net ID The Net ID of the TPS-12B/W, TPS-15B/W & TPS-17B/W has been factory set to
03. The Net IDs of multiple TPS-12B/W, TPS-15B/W & TPS-17B/W devices in the
same system must be unique. The NET ID is set using the internal setup menu (refer
to “Interface Menu” on page 22). Net ID may also be set from a personal computer
(PC) via the Crestron Toolbox™ (refer to “Establishing Communication” on page
47).
When setting the Net ID, consider the following:
• The Net ID of each unit must match an ID code specified in the SIMPL
Windows program.
• Each network device must have a unique Net ID.
For more details, refer to the Crestron Toolbox help file.
IP ID The IP ID is set within the TPS-12B/W, TPS-15B/W & TPS-17B/W’s table using
Crestron Toolbox. For information on setting an IP table, refer to the Crestron
Toolbox help file. The IP IDs of multiple TPS-12B/W, TPS-15B/W & TPS-17B/W
devices in the same system must be unique.
When setting the IP ID, consider the following:
• The IP ID of each unit must match an IP ID specified in the SIMPL
Windows program.
• Each device using IP to communicate with a control system must have a
unique IP ID.
Operations Guide – DOC. 6464A Tilt Touchpanels: TPS-12B/W, TPS-15B/W & TPS-17B/W • 19
