Crestron Isys
®
TPS-12B/W, TPS-15B/W & TPS-17B/W Tilt
Touchpanels

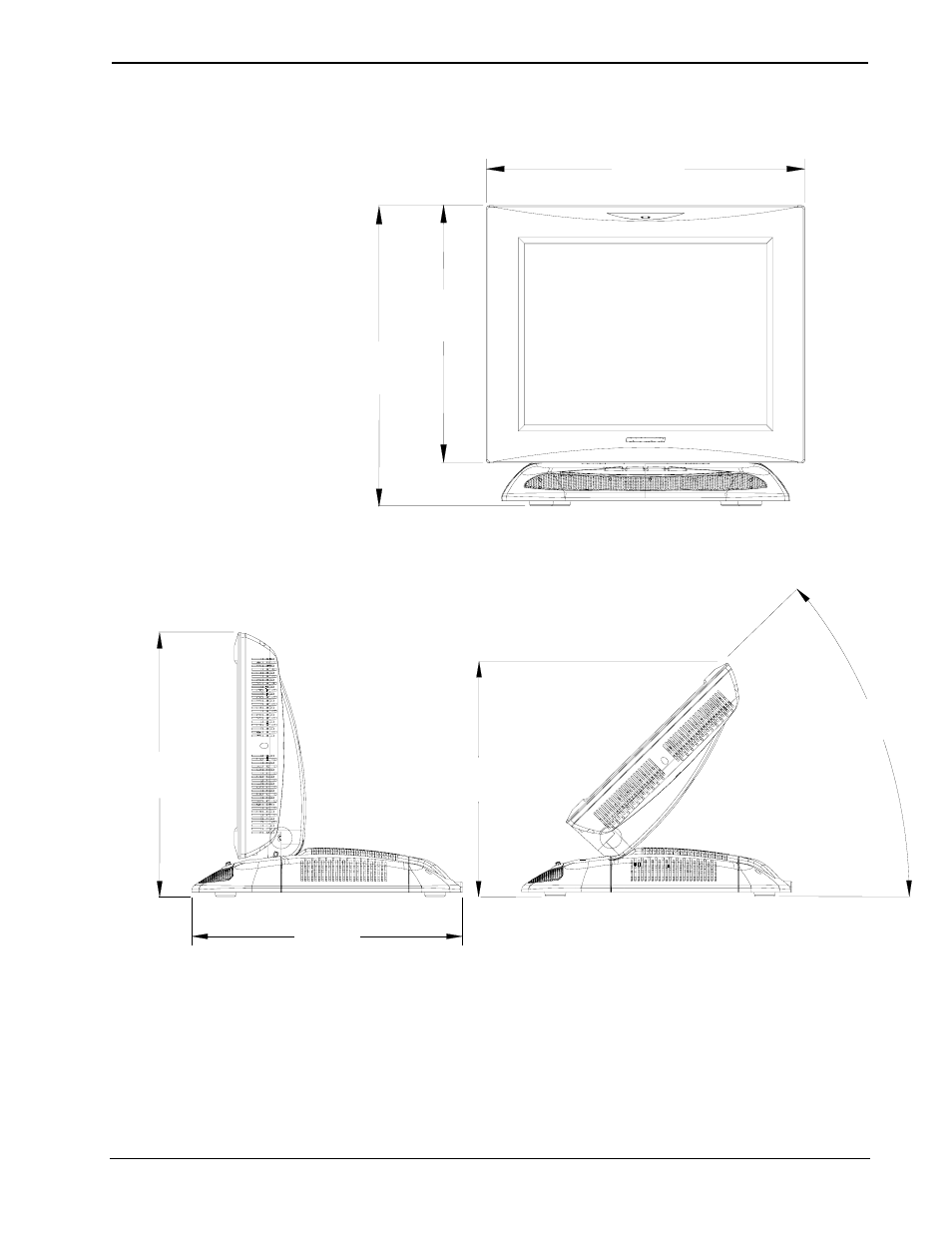

TPS-12B/W Overall Dimensions (Front View)
12.85 in
(32.64 cm)
12 inch
10.43 in
(26.49 cm)
12.15 in
(30.86 cm)
TPS-12B/W Overall Dimensions (Side View at Maximum and Minimum Elevation)
12.15 in
(30.86 cm)
12.40 in
(31.50 cm)
10.70 in
(27.18 cm)
45°
Operations Guide – DOC. 6464A
Tilt Touchpanels: TPS-12B/W, TPS-15B/W & TPS-17B/W
