PDR-04
SPECIFICATIONS
1. GENERAL
Model........................................................Compact disc audio system
Applicable discs............................................................... CDs and CD-Rs
Power supply................................................................... AC 120 V, 60 Hz
Power consumption......................................................................................... 16 W
Operating temperature...................................................+5 °C to +35 “C
(+41 “F to +95 '’Fi
Weight (without package).........................................................5 kg (11 lb)
Max. dimensions...........................420 (W) x 285 (D) x 125 (H) mm
16-9/16 (W) X 11-7/32 (D) X 4-15/16 (H) in.
2. AUDIO UNIT
Frequency characteristics................................................ 2 Hz to 20 kHz
Playback S/N..........................................................................108 dB (EIAJ)
Playback dynamic range..................................................... 97 dB (EIAJ)
Playback total harmonic distortion............................... 0.004 % (EIAJ)
Playback channel separation........................................................................ 96 dB
Recording S/N................................................................................................... 92 dB
Recording dynamic range..............................................................................92 dB
Recording total harmonic distortion..................................................... 0.005 %
Output voltage.............................................................................................. 2 V
Wow-flutter...........................................Less than measurement limit
{(±0.001 % W.PEAK) (EIAJ))
Number of channels................................................ 2 channels (stereo)
Optical output;............... -15 to -20 dBm (wavelength: 660 nm)
Frequency deflection: Level 2 (standard mode)
• Recording specification values are for the LINE input
(ANALOG).
3. INPUT JACKS
Optical digital input jack
Audio LINE input jack
4. OUTPUT JACKS
Optical digital output jack
Audio LINE output jack
5. RECORDING FUNCTIONS
• Recording
• Automatic digital-source synchro recording
(1-track recording)
• Automatic digital-source synchro recording
(All-track recording)
• EASY RECORDING OPERATION
(ANALOG)
• ACCESSORIES
Audio cables ... x 2
(analog recording input, analog playback output)
(WHT)
(WHT)'
• RECMUTE
• AUTO TRACK INCREMENT
• AUTO REC/PAUSE
• Remaining recording time display
• PREVIOUS
• MANUAL TRACK INCREMENT
• INPUT SELECTOR
• TOC Write
• Fade-in/fade-out
• SCMS (Serial Copy Management System)
• Sampling monitor
6. PLAYBACK FUNCTIONS
a PLAY
a PAUSE
a STOP
a MANUAL search
a TRACK search
a Direct song selection
a 1-Track repeat
a All-track repeat
a Programmed repeat
a Programmed playback (max. 24 tracks)
a Program check
a Program correction
a Program clear
a Pause programming
a Program reservation
a SKIP playback
a DISPLAY OFF
a TIME display switching
a Random playback
a Fade-in/Fade-out

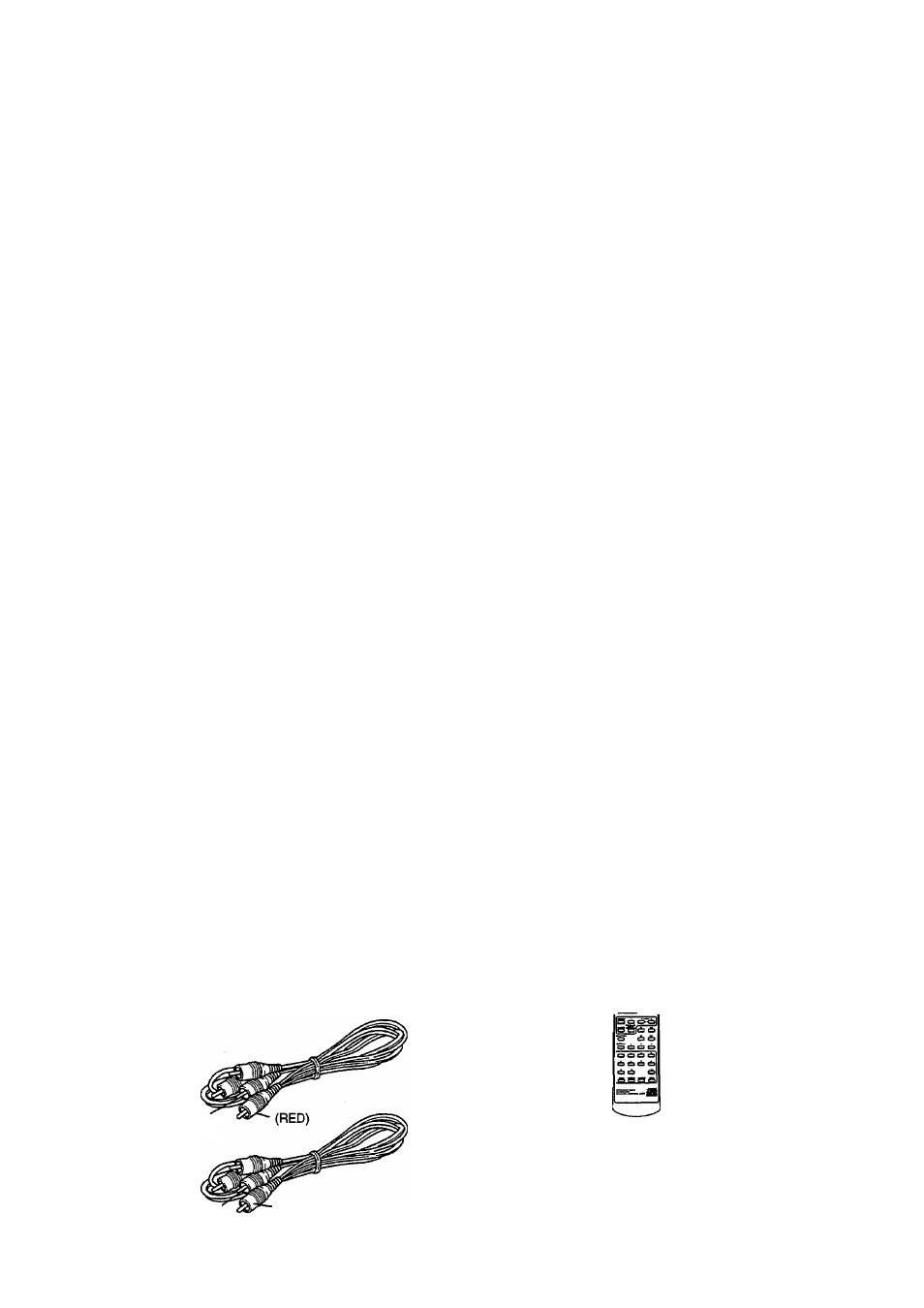

7. ACCESSORIES
a Remote control unit (CU-PD083)................................ 1
a Size /WR6P dry cell batteries...................................... 2
a Audio cables................................................................. 2
a Operating Instructions.................................................1
NOTE:
The specifications and design of this product are subject to
change without notice, due to improvements.
Remote control unit
Operating instructions
(this booklet)
(RED) AA/R6P dry cell batteries... x 2
