8

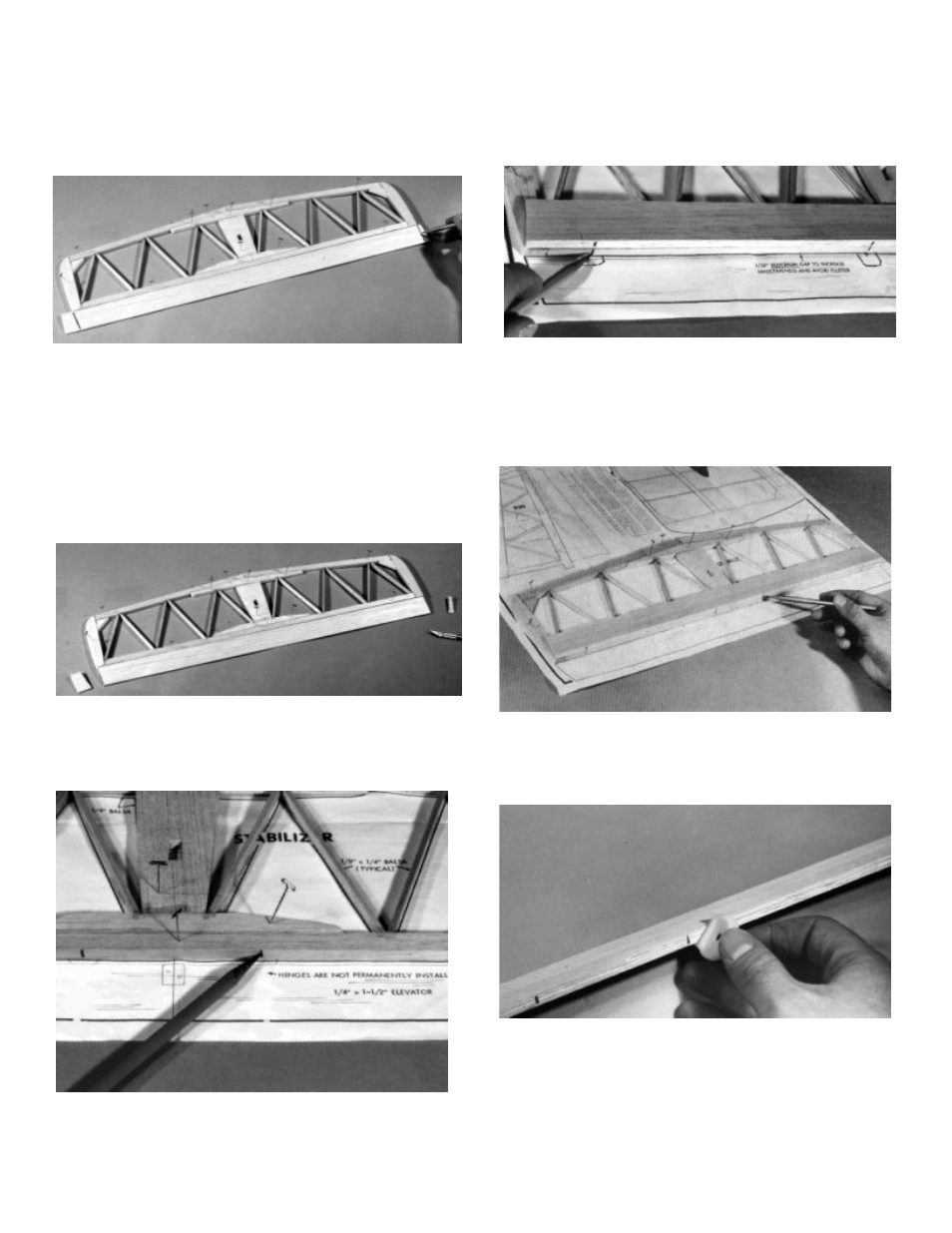

5.
Position balsa elevator against stab T.E.
and mark elevator ends for match with
stab tips.
Place elevator on top of T.E. and transfer
hinge locations to elevator.
7.
Assemble the fin in the same manner as
stab. Let dry.
8.
Mark hinge locations on fin and rudder.
9.
Using the CG Center-Line Marker provided,
mark center lines along edges of parts as
shown. Tilt marker so guide pegs touch the
wood, then lightly pass the marker back and
forth. Point will scribe center line.
6.
Transfer hinge locations from plan toT.E.
Cut elevator at marks to match stabilizer
tips.
