Carl Goldberg GPMA0955 EAGLE 2 User Manual
Page 15
14
Do not glue any new ribs to the
L.E. at this time.
Laser cut sheet 5600
Cut web height for sheeting clearance.
9.

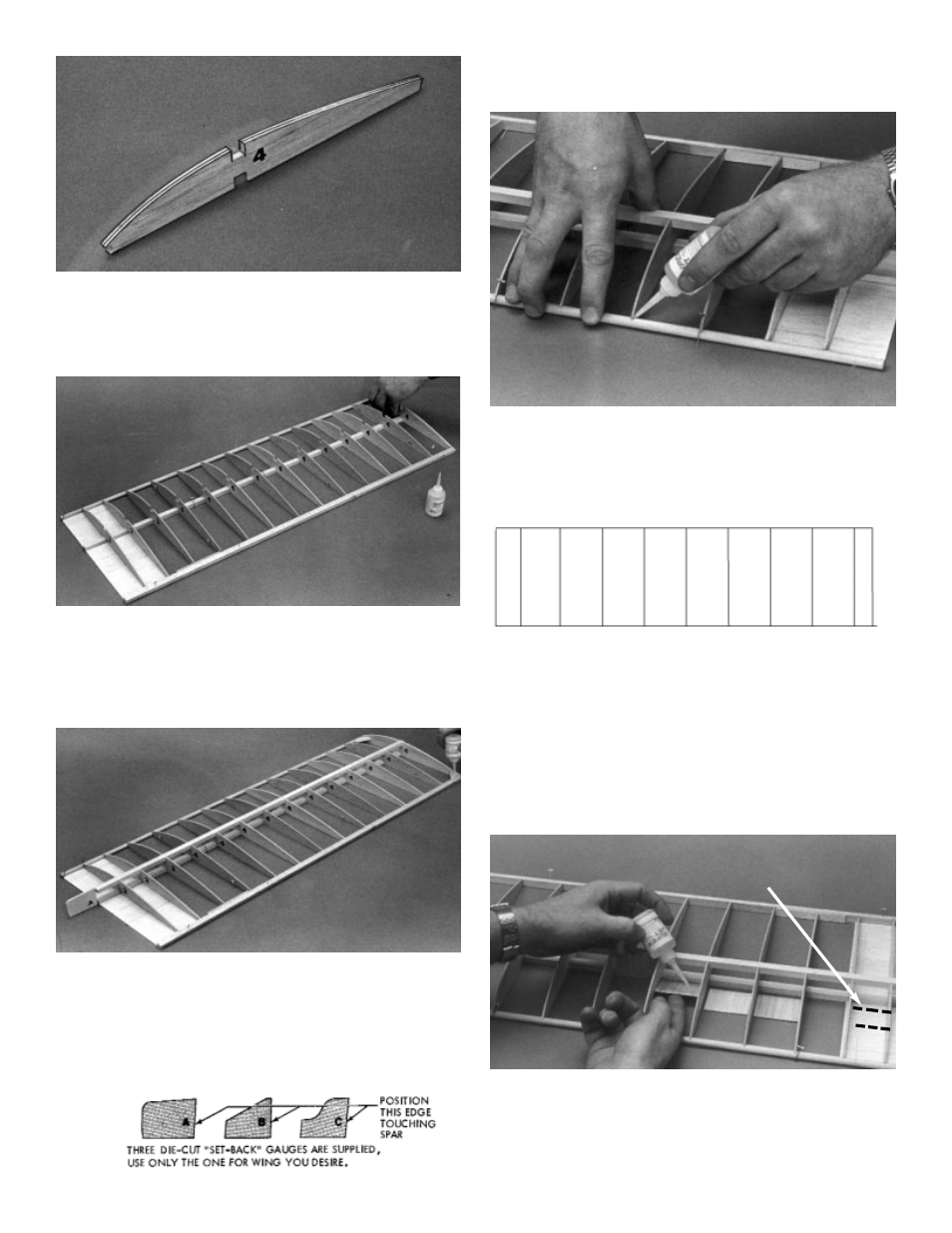

A doubled rib is necessary at the wing tip so that
when you cover the wing, the tip rib won't bend.
Glue two No. 4 ribs together: apply SUPER JET to
one rib, stand them next to each other to check
alignment, then press together.
10.
Glue double thickness rib No, 4 in place at
wing tip, gluing to spar and T.E. only. Hold rib
straight up until it sets.
Working one at a time, glue remaining ribs
No. 4 to spar & T.E. only. Hold each rib up
straight as it dries.
11.
Three set-back gauges are supplied, one for "A",
one for "B", and one for "C" wing. Position proper
gauge touching bottom spar. Touch end of top spar
to gauge, and set spar in rib slots.
Glue top spar to all ribs.
Glue wing tip gussets to L.E. and T.E.
12.
Working a few ribs at a time, apply SUPER JET to
glue loose ribs to L.E. Gently squeeze LE. into ribs
and hold until set. Repeat until all ribs are glued to
L.E.
13.
The shear webs to be installed in the next step are
located on die cut sheet #5600.
13a.
Install pre-cut webs in wing at positions shown on
the plan as follows: Apply two beads of glue (along
top and bottom), then press web up in place
against spars until set.
