Carl Goldberg GPMA0955 EAGLE 2 - Manual (Page 24)

23

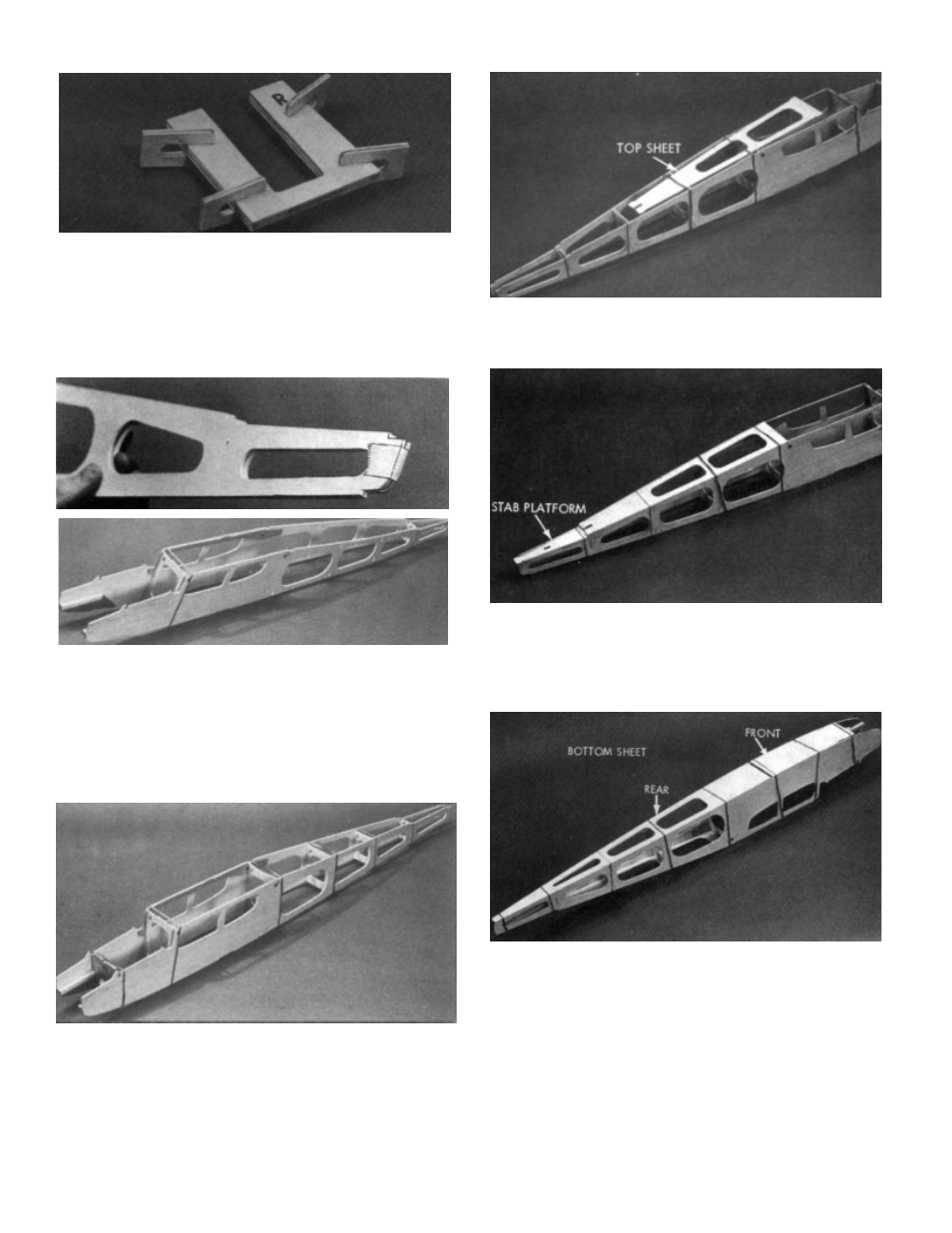

7c. Keep edges aligned as you close plates and
tape flanges together. Squeeze plates together
using clamps. When dry, remove tapes and
clamps. Set aside.
8c. insert top sheet under rubber band at former
C, and work it towards tail, slipping it under
bands as you go.
8a.
Place fuse sides one on the other, and tape
rear together around the back end. Spread
fuse fronts apart, and plug former "B" into
holes in body sides. Hold parts together with
a rubber band. Carefully spread fuse rear
open, and plug former "F" in place, and hold
with a rubber band. Remove tape from tail
end.
8b.
Install firewall & remaining formers "C", "D",
and "E" in same manner, using rubber bands
to hold parts.
8d.
Lock tabs at both ends of top sheet into corre-
sponding notches in fuse sides.
Position stab platform between fuse ends,
and hold parts in place with rubber bands.
8e.
Position front and rear bottom sheets in same
manner.
