Carl Goldberg GPMA0955 EAGLE 2 User Manual
Page 29
28

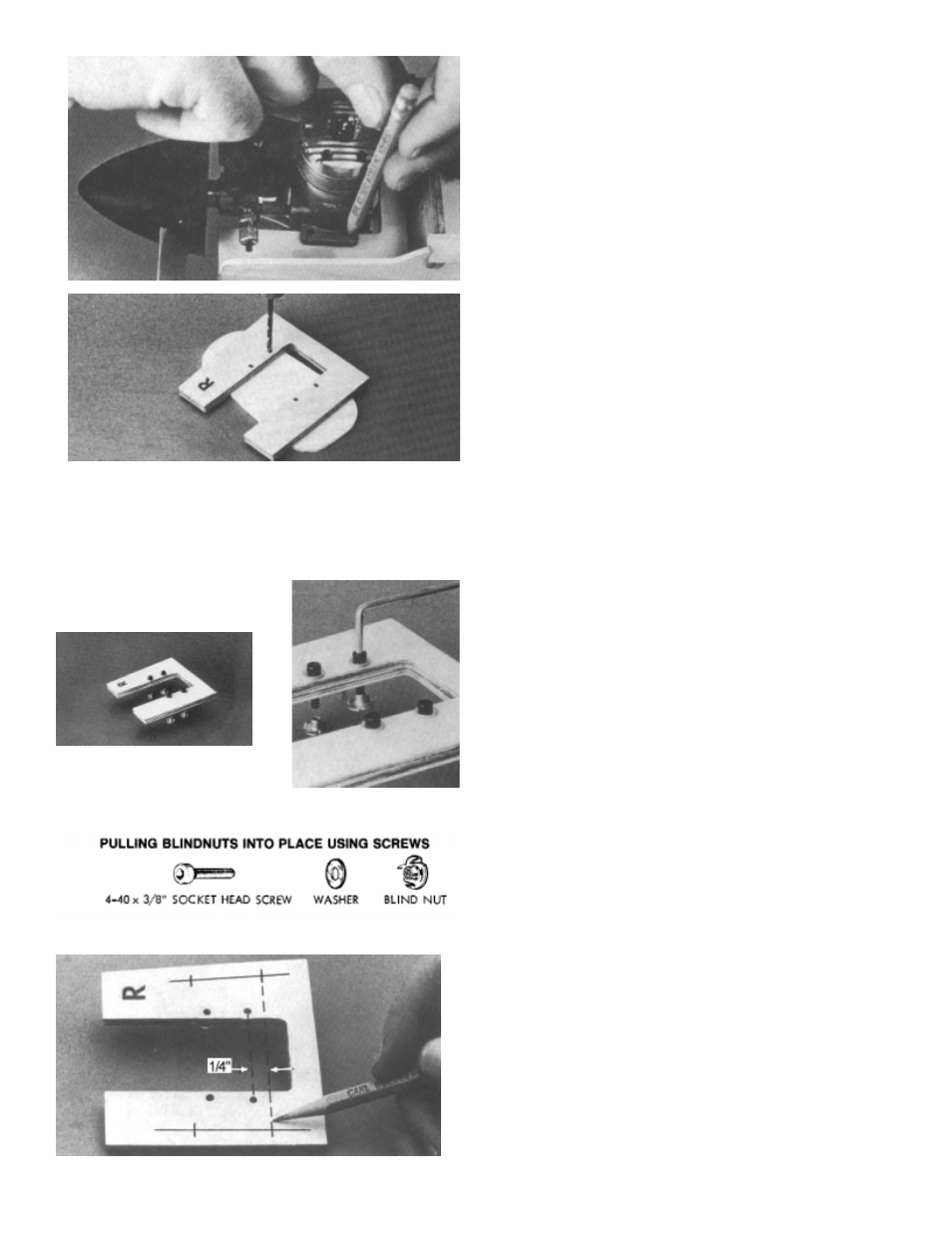

4a.
Mark straight down through engine mounting holes onto
breakaway plate.
4b.
Remove engine and breakaway plate from fuse. Drill
four 1/8" holes through breakaway at engine mounting
hole locations (place scrap ply under parts when drilling
to avoid splintering.)
5.
Permanently install four blindnuts in bottom of break
away using socket head screws (and washers) to pull
blindnuts up into the screw holes as shown . Remove
screws after seating blindnuts.
6a.
On die-cut lines, mark cross lines about 1/4" ahead of
and 1/4" behind holes as shown.
