Carl Goldberg GPMA0955 EAGLE 2 User Manual
Page 11

10
Narrow Strip
Wide Strip
“R” Tool
Used for Rudder
“EA” Tool used for elevator
(Later used for Ailerons
14a.

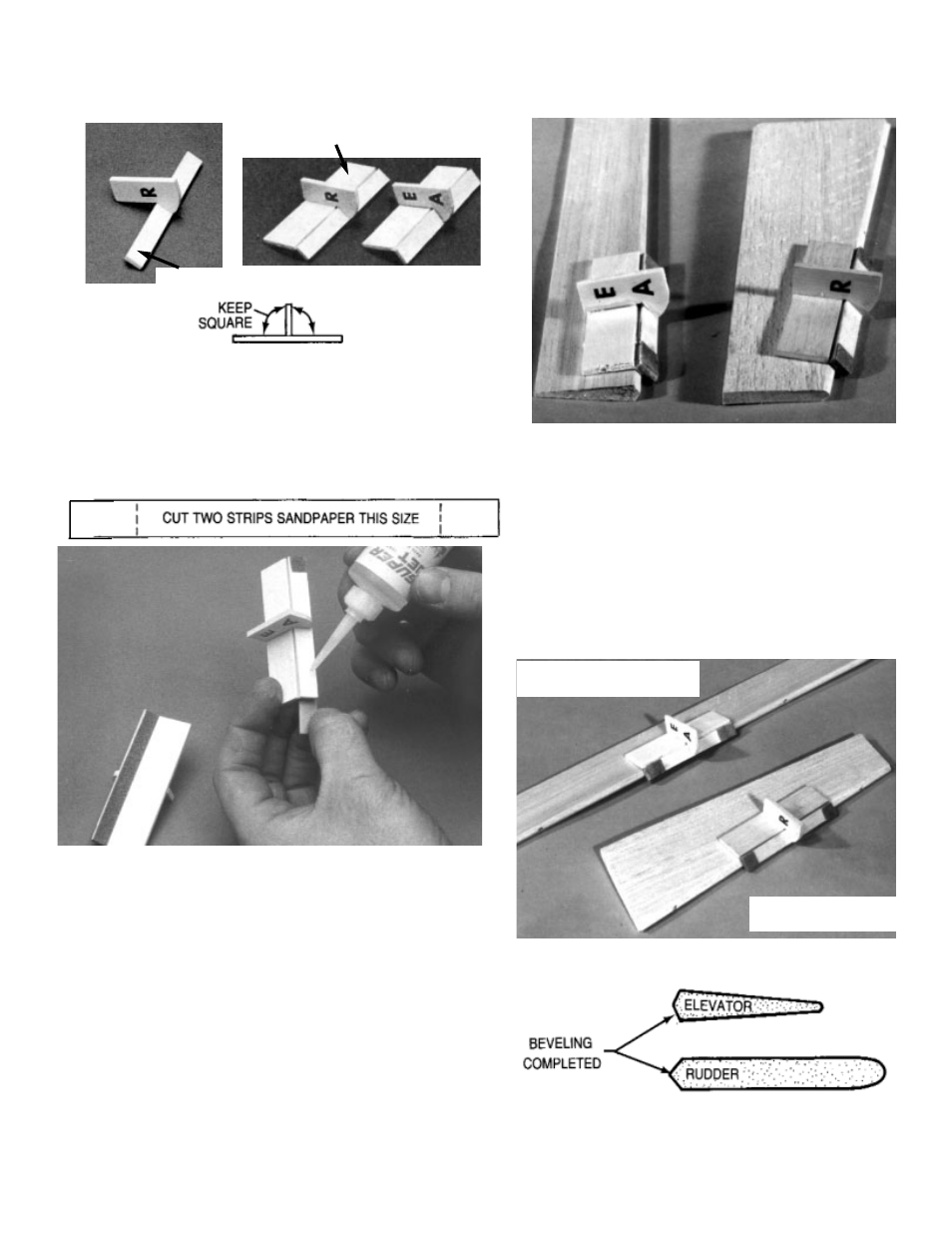

First glue narrow strip to handle, keeping
them square, as shown. Then glue wide
strip to handle and narrow strip, again
keeping things square.
ASSEMBLING DIE-CUT BEVELING TOOLS
(FROM 1/8” PLY)
15.
Tape T.E. of elevator and rudder to work
surface. Using appropriate beveling tool,
sand LE. to center line. Turn parts over
and repeat beveling for other side.
14b.
Cut two strips of 100-200 grit sandpaper
to size shown above. Tack-cement sand-
paper to tools.
THIS COMPLETES THE TAIL ASSEMBLY CONSTRUCTION.
