13
Hold parts down flat when
gluing
Flush
Flush

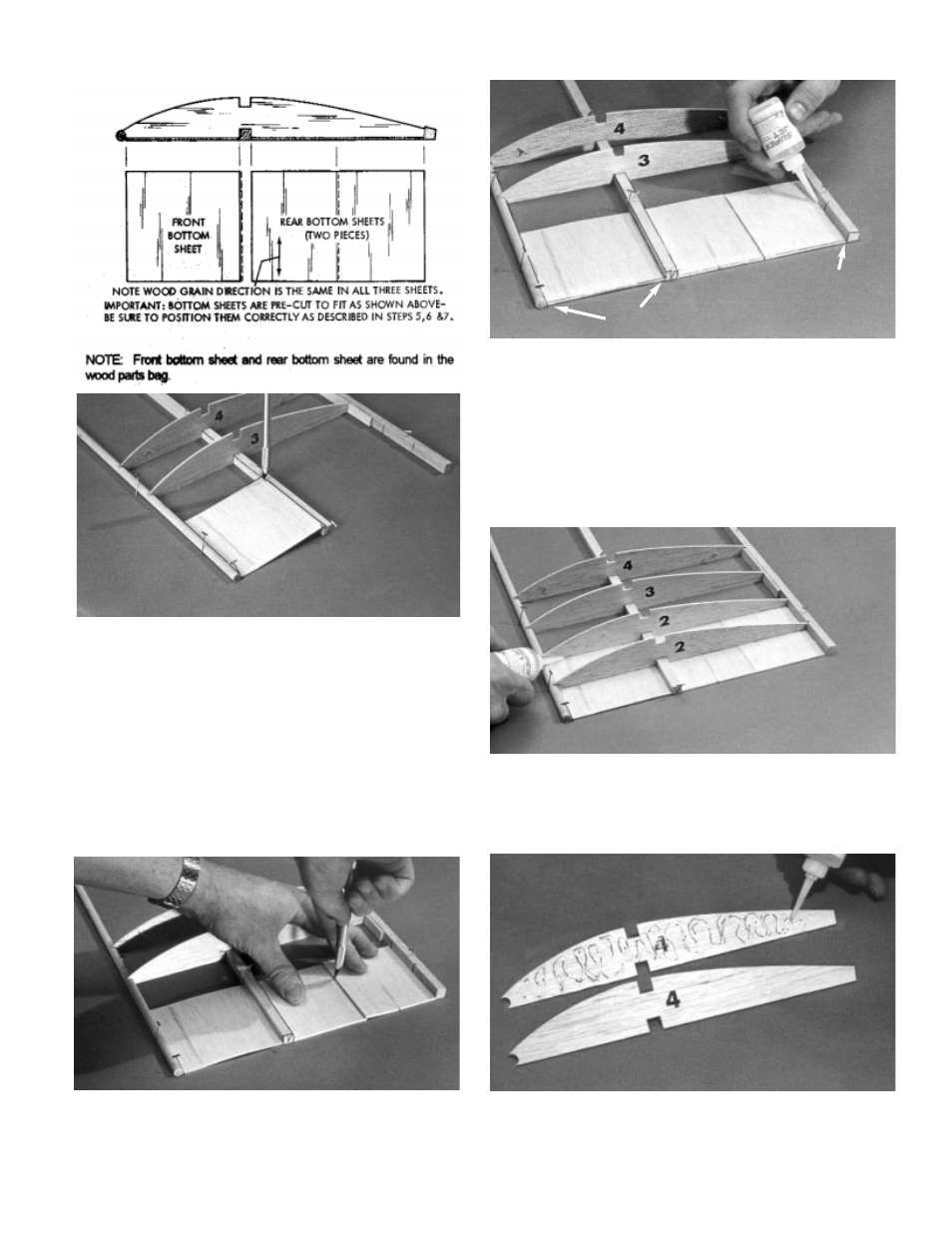

5. Pin end of L.E. and spar in place as shown .
Remove rib No. 2 and scrap shims.
Slide front bottom sheet forward until it just
touches the L.E, and align it with end of L.E.
(Note wood grain direction). Gently hold
sheet in position and mark spar location on
both rear corners of sheet with your knife.
Remove sheet from wing, and using metal
straight edge, cut a One across sheet at
spar "marks." Replace sheet in wing, trim
slightly if required until it fits well.
6. Position one rear bottom sheet at rear of spar.
Place other rear bottom sheet at T.E, so it overlaps
the first one. Holding both sheets in place, trim first
sheet even with edge of second sheet.
7. Glue L.E. sheeting to L.E. and spar.
Glue two rear sheeting halves together, and
to spar and T.E.
8. Position and glue two ribs No. 2 to L.E., bottom
sheeting, spar and T.E. (align rib fronts over guide
lines on plan).
