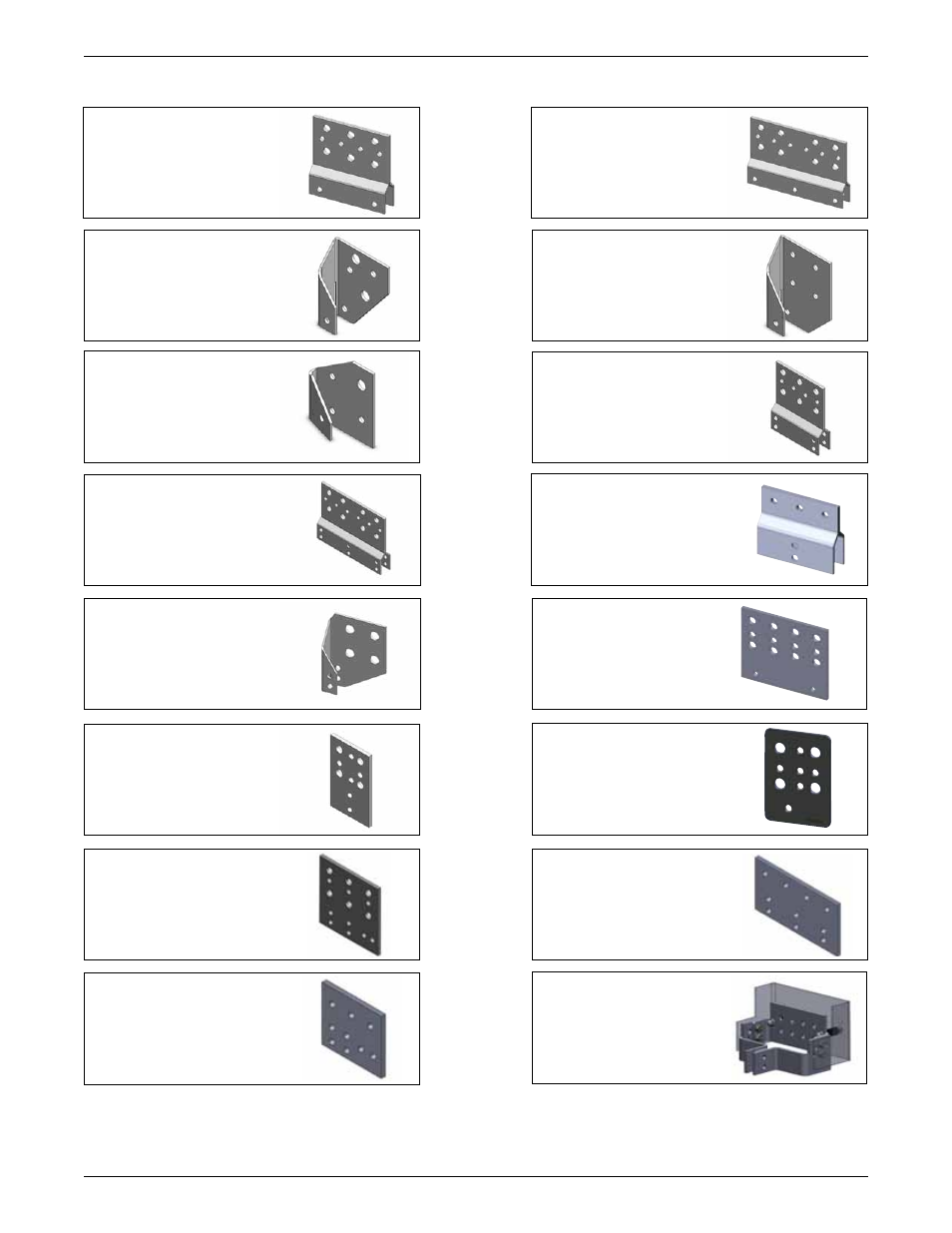

APPENDIX A-TERMINAL PLATES
PT00496
TYPE “XTJ”, “K” &
“L” MULTI-CELLS
WITH FLAG
TERMINALS
PT00450
TYPE “K” SINGLE &
“L” MULTI-CELLS WITH
1’’ SQUARE POST
PT00494
TYPE “K” CELLS
WITH 1’’ SQUARE
POST
PT00448A
TYPE “L” CELLS WITH
(4) 1’’ SQUARE SINGLE
HOLE POSTS
PT00449A
TYPE “L” CELLS WITH
(6) 1’’ SQUARE SINGLE
HOLE POSTS
PT00559
TYPE “L” 2-CELL & LARGE
4-CELL WITH 1’’ SQUARE
DOUBLE HOLE POST
PT00515A
TYPE “L” CELLS WITH
(4) 1’’ SQUARE DOUBLE
HOLE POSTS
PT00516A
TYPE “L” CELLS WITH
(6) 1’’ SQUARE DOUBLE
HOLE POSTS
PT00758
LCT II 1700
PT00821
TYPE “DJ”, “DJU” & “XDJ”
WITH RECTANGULAR
POST
PT00938A
XTH (P) 11 THROUGH 27
(7-8 CABLES ONLY)
FOR INTER-TIER/
INTER-RACK
CABLE CONNECTIONS
PT00681
TYPE “L” CELLS
WITH (4) 1”
SQUARE POSTS
PT00973A
XTH TERMINAL
PLATE ASSEMBLY
FOR INTER-TIER/
INTER-RACK
CABLE CONNECTIONS
Recommended torque for customer connections to the terminal plate is 160 +10/-0 in-lb regardless of the size of the hardware used. Higher torque
values are acceptable for larger hardware as follows:
3/8-16 195 inch-lbs +/- 5 in-lb
1/2-13 225 inch-lbs +/- 25 in-lb
PT00976A
XTH (P) - 11
THRU 27
INTER-TIER/INTER-RACK
CABLE CONNECTIONS
6 CABLES OR LESS
PT00934
XTH (P) - 29
THRU 33
PT00539A
TYPE “L” 2-CELL & LARGE
4-CELL WITH 1’’ SQUARE
DOUBLE HOLE POST FOR
MORE THAN (4) CABLES
BETWEEN TIERS OF RACKS
