C&D Technologies 41-6976 RB VRLA Rack - Manual

41-6976
VRLA
VRLA RB BATTERY RACKS
ASSEMBLY INSTRUCTIONS
(READ ALL INSTRUCTIONS PRIOR TO INSTALLATION)
Safety
Installation of VRLA batteries should only be performed and supervised by trained personnel knowledgeable of lead
acid batteries and the required personal and equipment safety precautions. Keep unauthorized personnel away from
the batteries and assembly activity.
Observe battery safety procedures. Use insulated tools, gloves, safety glasses, and remove all jewelry etc..
Special care should always be taken to avoid short circuiting any battery connection.
Wash hands after any contact with lead or electrolyte.

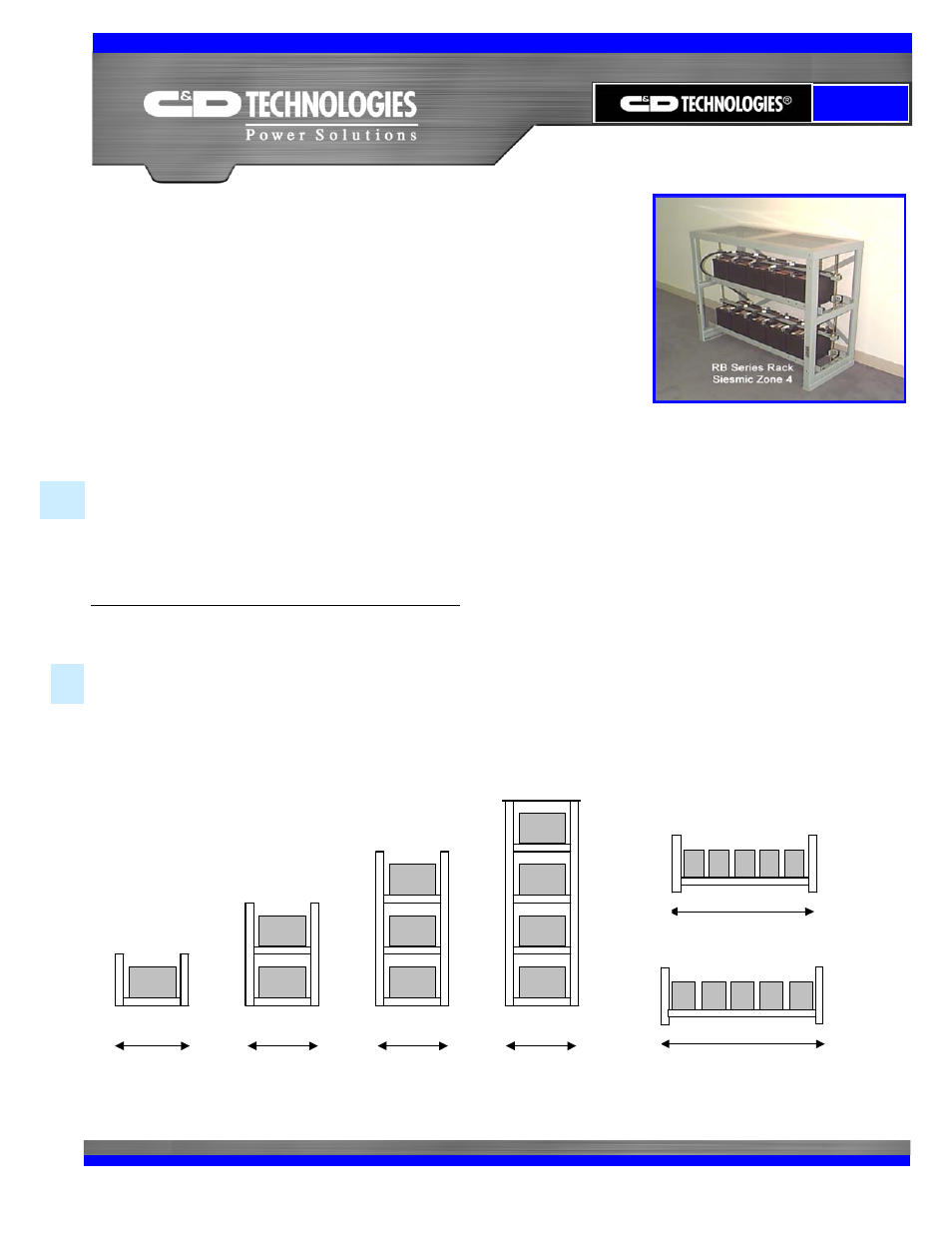

Rack Configurations
Racks are available in single or multiple tiers. Rack components must be assembled and secured on-site in
accordance with these C&D assembly instructions, rack drawings and applicable codes. Because EQ Racks meet
Seismic requirements, they may NOT be mechanically secured together.
A minimum distance of 3” must be allowed between racks and between racks and the building structure.
End View Front View
K
For All Standard And Seismic Models Including Retrofitting
Standard Models To Meet Seismic Requirements
Wide Rack
Width 44.0"
Narrow Rack
Width 38.0"
1 Tier 2 Tier 3 Tier
Depth
18.5"
Depth
18.5"
Depth
18.5"
Depth
18.5"
Rack Height
55.38"
Rack Height
72.5"
4 Tier
(w/Cover)
Rack Height
21.25"
Rack Height
38.25"
