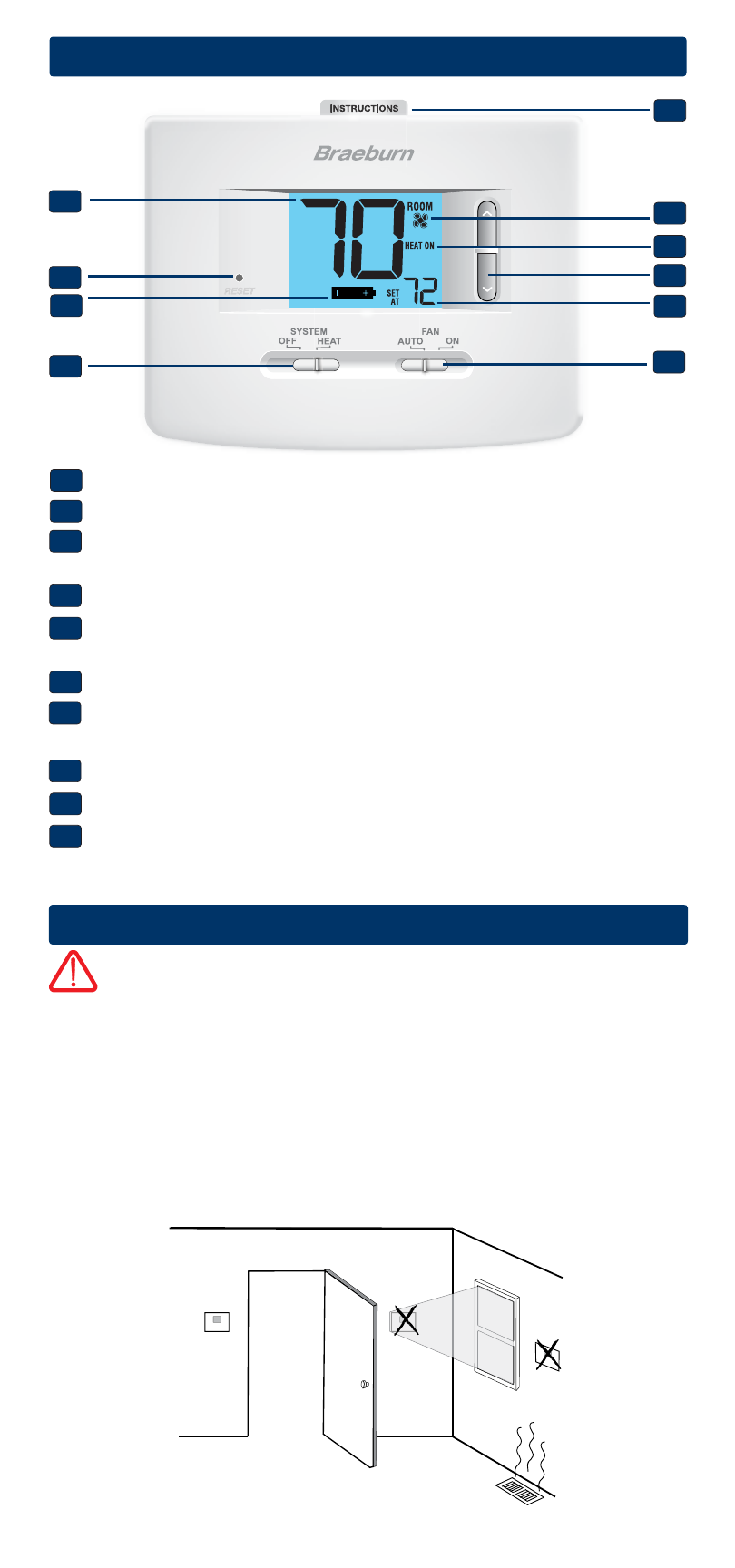

2 About Your Thermostat
Room Temperature ........... Displays the current room temperature
Reset Button ..................... Resets thermostat back to factory defaults
Low Battery Indicator ...... Indicates when the batteries need to
be replaced
System Switch .................. Selects heat on or off
Quick Reference
Instructions ...................... Stored in slot at top of thermostat
Fan Indicator .................... Indicates when the system fan is running
System Status Indicator ... Displays information about the status of
the system
Arrow Buttons .................. Used to increase or decrease settings
Set Temperature ............... Displays the current set point temperature
Fan Switch ........................ Selects the system fan mode
Battery Compartment ....... Located in the back of the thermostat
1
2
3
4
5
1
2
3
3 Installation
Warning
Disconnect power before beginning installation.
Thermostat Location
Install the thermostat approximately 5 feet (1.5m) above the floor in an
area that has a good amount of air circulation and maintains an average
room temperature.
Avoid installation in locations where the thermostat can be affected by
drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed
pipes, chimneys and outside walls.
7
5
6
8
9
6
7
8
