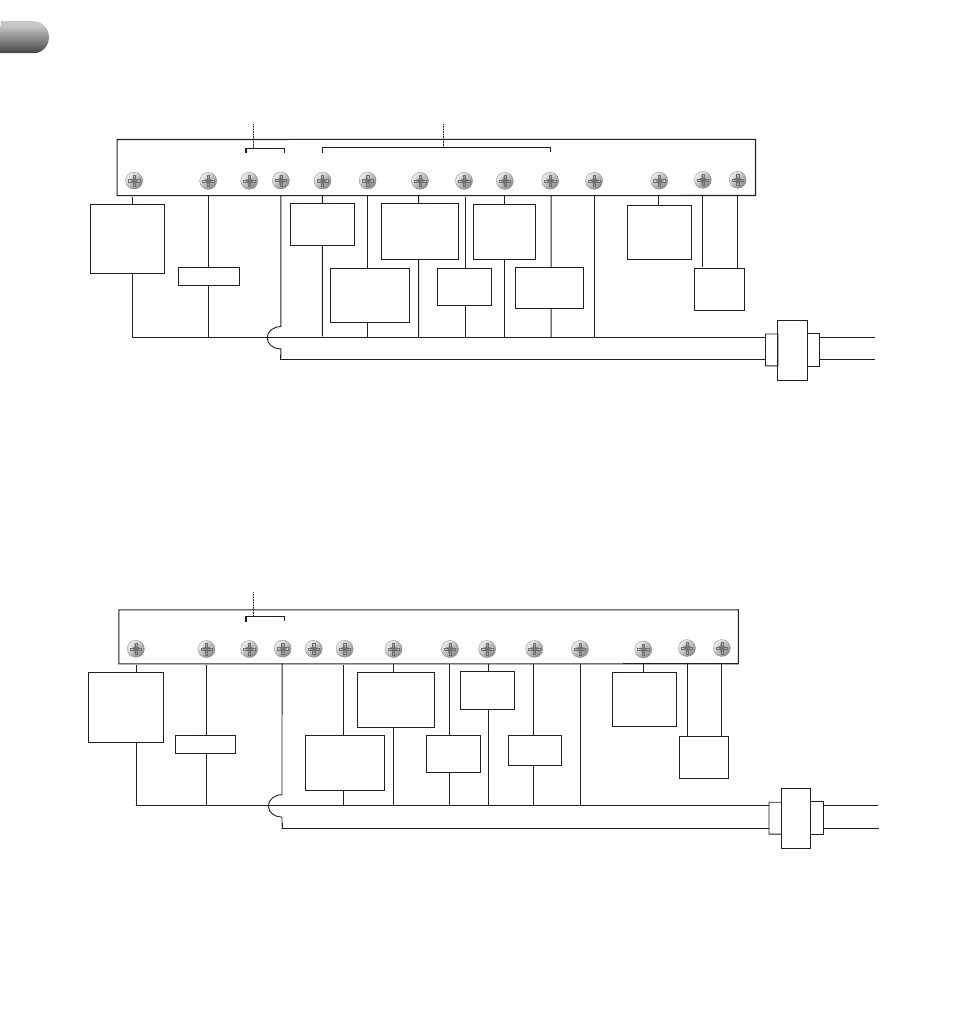

Wiring Diagrams
cont.
6
NOTES:
1. Transformer Common connection not required for battery-only operation of thermostat.
2. Second Stage Control connections not used for single stage heating or cooling systems.
3. For units requiring reversing valve to be energized during heating, connect reversing valve to B
terminal. For units requiring reversing valve to be energized during cooling, connect reversing valve
to O terminal. 4. Required for units with 2 stage heat only. 5. For 2 stage heat units not having a
separate Emergency Heat Terminal, add installer supplied jumper. 6. Remote Sensor Terminals can
be either for Outdoor or Indoor Remote Sensor. 7. If L Terminal is used, 24VAC common (C terminal)
must be connected.
Emergency
Heat Control
(See NOTE 4)
1st Stage
Compressor
Control
2nd Stage
Compressor
Control
(NOTE 2)
2nd Stage
Heat Control
(NOTE 2)
Fan Control Remote
Sensor
(NOTE 6)
Reversing Valve
(Active in
Cooling - See
NOTE 3)
System
Malfunction
Indicator
(NOTE 7)
(See NOTE 5)
Transformer Common (See NOTE 1)
Neutral
120 VAC
Hot
24 VAC
Reversing Valve
(Active in
Heating - See
NOTE 3)
Outside
Air Control
One and Two Stage Heat Pump Systems
NOTES: 1. Transformer Common connection not required for battery-only operation of thermostat.
2. For units requiring reversing valve to be energized during heating, connect reversing valve
to B terminal. For units requiring reversing valve to be energized during cooling, connect
reversing valve to O terminal. 3. Remote Sensor Terminals can be either for Outdoor or Indoor
Remote Sensor. 4. If L Terminal is used, 24VAC common (C terminal) must be connected.
A G Rc Rh W2 B O Y1 W1/E/W3 C L S1 S2 Y2
Remote
Sensor
(NOTE 3)
Factory Installed Jumper
Factory Installed Jumper
Aux Heat
Control
1st Stage
Compressor
Control
2nd Stage
Compressor
Control
Fan Control
Reversing Valve
(Active in
Cooling - See
NOTE 2)
System
Malfunction
Indicator
(NOTE 4)
Transformer Common (See NOTE 1)
Neutral
120 VAC
Hot
24 VAC
Reversing Valve
(Active in
Heating - See
NOTE 2)
Outside
Air Control
Three Stage Heat Pump Systems
A G Rc Rh W2 B O Y1 W1/E/W3 C L S1 S2 Y2
