14 The SYSTem SeT-UP menU
The System Setup Menu allows the user to change how the Geopilot II Plus displays information.
System Setup options are arranged in sub-menus. For example, all options that relate to the Fix
functions are in Fix Setup sub-menu and all options related to time or date are in Date Time
Setup.
> ‘MENU’ 1 sec. + “SYSTEM SETUP” + ‘ENT’
Once you are in the System Setup Menu, use the cursor key to highlight the sub-menu desired and
press ‘ENT’ to activate or to proceed to the next selection.

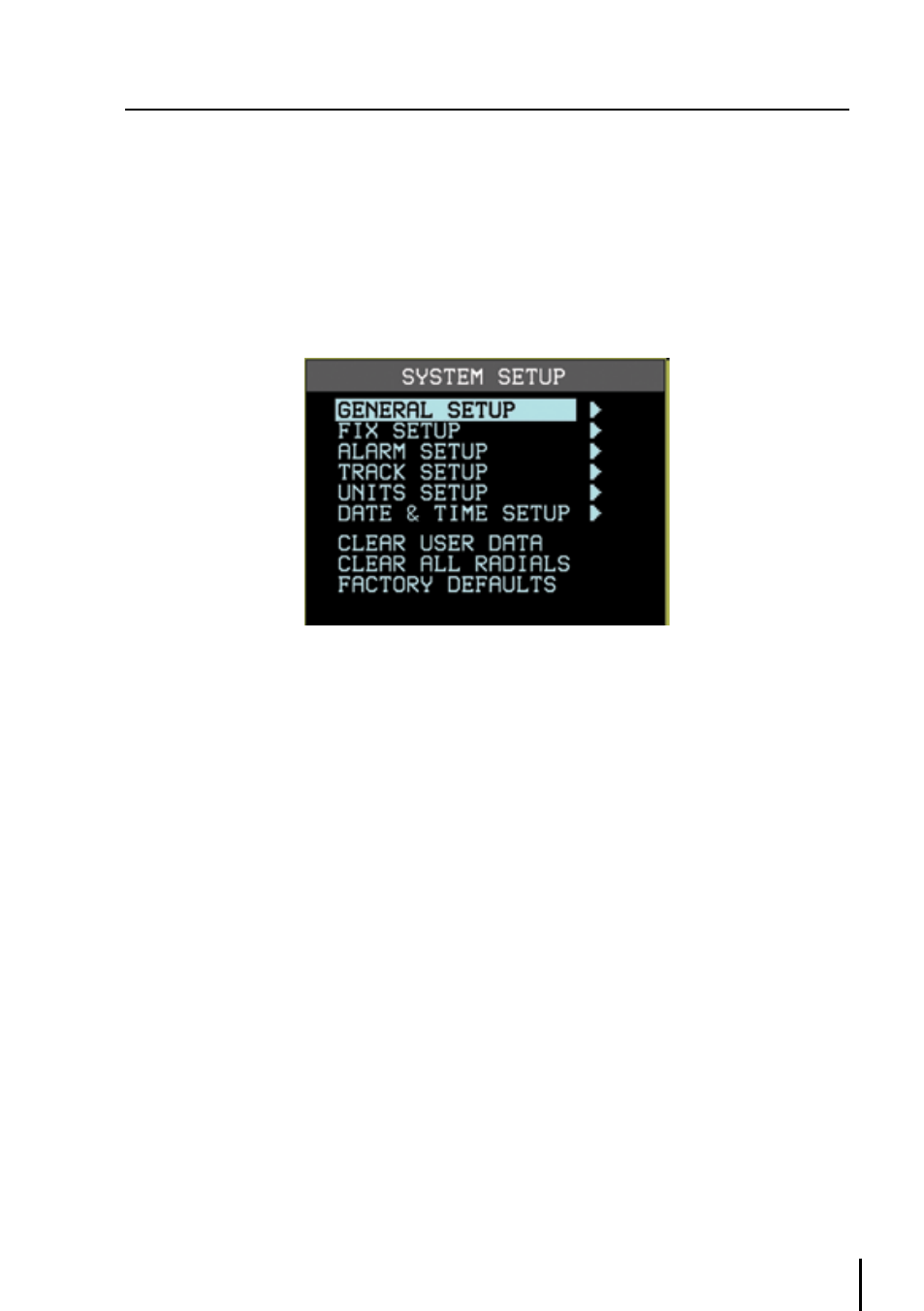

Fig. 14 - The System Setup Menu
14.1 GenerAl SeT-UP
The General Setup sub-menu controls the Geopilot II Plus settings.
> ‘MENU’ 1 sec.+ “SYSTEM SETUP” + ‘ENT’ + “GENERAL SETUP” + ‘ENT’
14.1.1 beeper
The Geopilot II Plus makes a beep with each key press, warning or alarm message.
> ‘MENU’ 1 sec. + “SYSTEM SETUP” + ‘ENT’ + “GENERAL SETUP” + ‘ENT’ + “BEEPER”
+ ‘ENT’
Use the cursor key to select and ‘ENT’ to accept. The Off selection of this menu will turn all beeper
sounds Off. The default setting is On.
14.1.2 Scale format
Selects the desired setting for display of the map scale in the Data Window field.
> ‘MENU’ 1 sec. + “SYSTEM SETUP” + ‘ENTER’ + “GENERAL SETUP” + ‘ENT’ +
“SCALE FORMAT” + ‘ENT’
The selection options are:
bAr
- the width of the screen is equal to the bar length times the number displayed.
