Add Waypoint
To add a Waypoint (leg) to the viewed (current) Flight Plan place the cursor over the position.
>‘ENT’ + “INSERT FP LEG” + ‘ENT’
This will place another leg onto the end of the current viewed Flight Plan.
remove Waypoint
(present only if there is a Waypoint under the cursor position)
>Place the cursor over existing Waypoint + ‘ENT’ + “REMOVE WAYPOINT” + ‘ENT’
If the Waypoint was within the Flight Plan, the revised leg will be drawn on the screen.
Inserting a Waypoint
To edit a flight plan on the moving map, be sure the flight plan is selected as the “Viewed” flight
plan. (See Sec. 6.1). To insert a waypoint between two existing waypoints in the viewed flight plan,
move the cursor over the leg to be edited:
> ‘ENT’ + “ADD FP LEG” + ‘ENT’.
The new waypoint is now inserted into the flight plan.
3.5 movInG mAP menU
The Moving Map Menu provides access to the set up functions of the Moving Map display.
Here you can define the items for display, Map Orientation, Auto Zoom, selective display and
other settings to customize the Geopilot II Plus for your navigational needs. From Moving Map
press ‘MENU’ to display the Moving Map Menu. From here use the cursor key to select the item
desired and press ‘ENT’ to activate. At any time, press ‘ESC’ to back out of the menus and return
to the Moving Map.

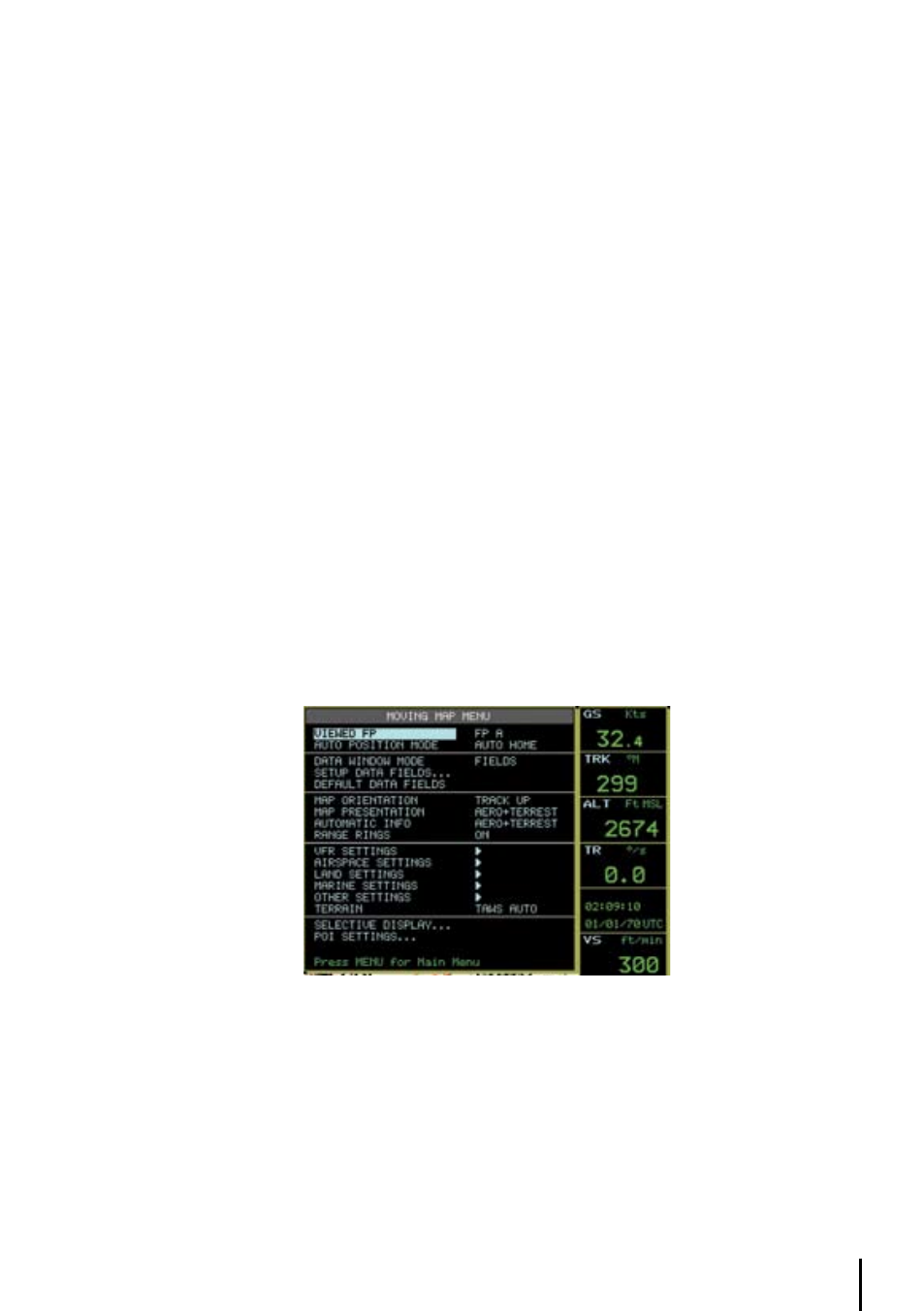

Fig. 3.5 - Moving Map Menu
3.5.1 viewed fp
This item enables you to select the Flight Plan to display on the Moving Map from the list
of stored Flight Plans. The Flight Plan that is “Viewed” can then be edited or activated
from the Moving Map display.
> ‘MENU’ + “VIEWED FP” + ‘ENT’
The Flight Plan list will display, using the cursor key, highlight the Flight Plan and press ‘ENTER’.
