differently based on the mode of operation selected. The Auto Home mode will allow the user to
pan away from his present position to view other parts of the map, and return to present position
automatically when no buttons are pushed for a pre-determined amount of seconds. Auto Zoom
mode will keep your present position, and your destination in the screen at all times. The screen
will automatically zoom in as you get closer. To shut off this function, simply select OFF.
The Cursor Mode (OFF Selected) will allow you to move the map to any position to view data or
details. To return to your present position, just press ‘ESC’ while in moving map.
The control for these functions is found in the Moving Map Menu, under Auto Position Mode.
1.3.4 moving map Icons

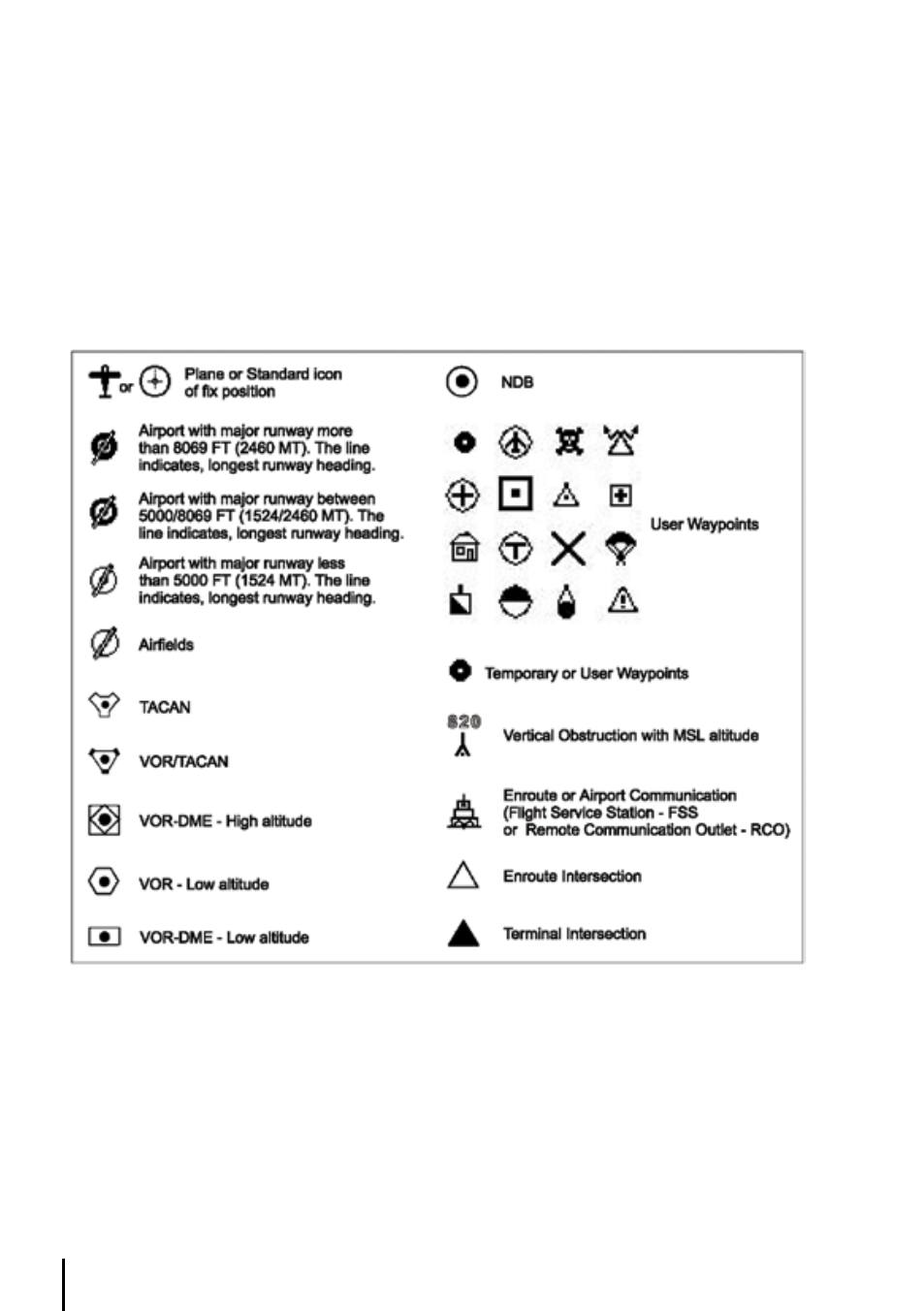

The following icons are displayed on the Moving Map to represent Waypoints, navigation aids and
airports.
Fig. 1.3.4 - Moving Map Icons
1.3.5 Course Predictor
Indicates the projected position at the set time interval if the current speed and heading are kept.
This allows the pilot to correct for wind drift, in real time, right from the moving map. To select
course predictor:
> ‘MENU’ 1 sec. + “SYSTEM SETUP” + ‘ENT’ + “FIX SETUP” + ‘ENT’ + “COURSE
PREDICTOR” + ‘ENT’
