8
4.0 YX Matrix and Peripherals Connection

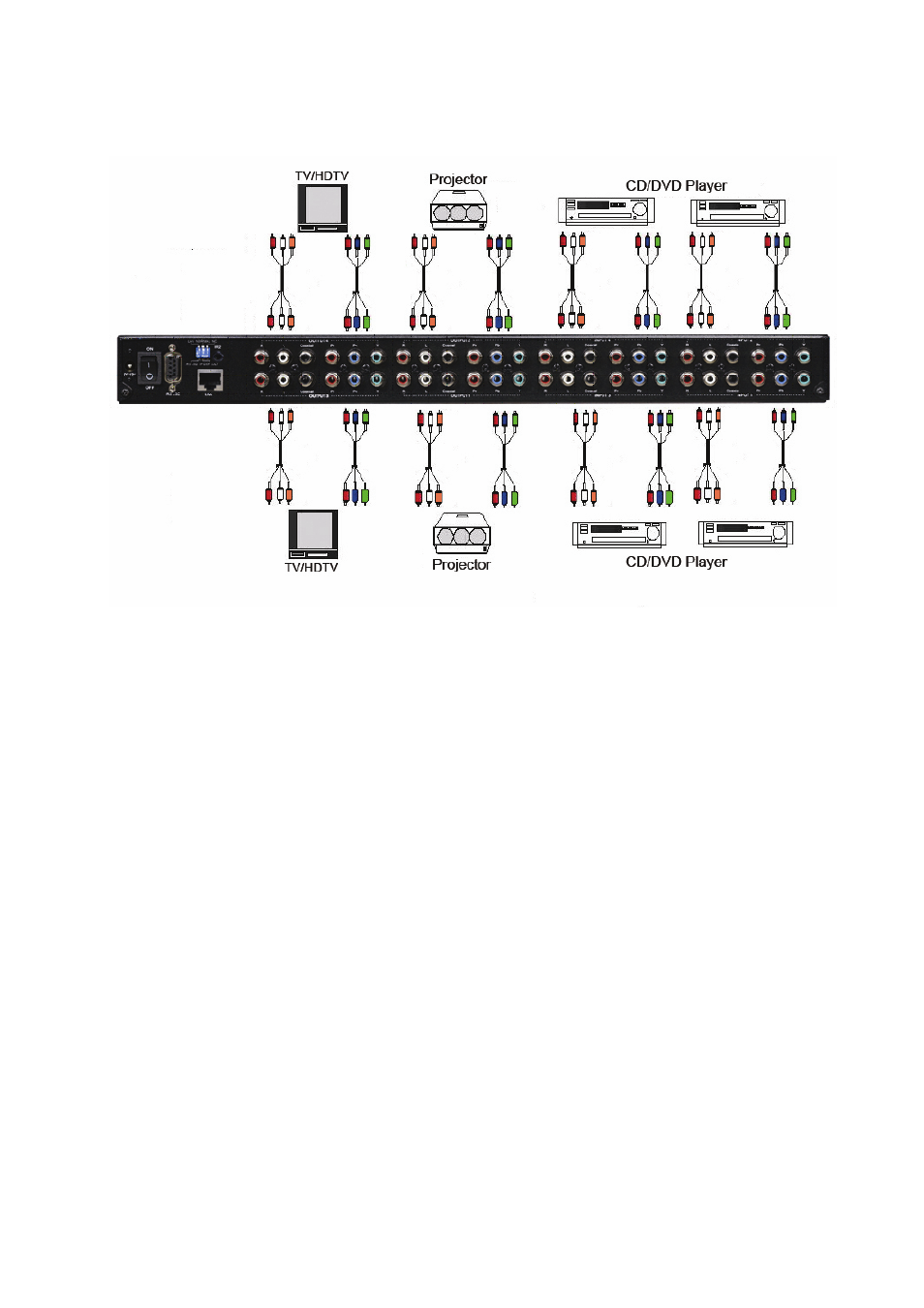

Figure 4-1 YX-1044 Matrix System Connection
4.0.1 Input/Output Jacks
The video signal input/output jacks of YX-1044 are formed by the 4 th and 2 th rows RCA
female connectors. The connectors from top to bottom are: Audio Signal Jack. Y, Pb/Cb,
Pr/Cr.The Y signal jack is green, the Pb/Cb signal jacks are blue, the Pr/Cr signal jacks are red
and the left row audio jacks are red (right audio channel) and the right row audio jacks are white
(left audio channel) and the digital optical module.
Users can connect to different audio/video equipment including CD/DVD players,
graphics workstations, and number display. The output connectors can be connected to projectors,
video recorders, displays and multiplexers.
4.0.2 Audio/Video Connecting Cable
The RCA connecting terminal----audio/video port: The 4-hole RCA Jack is a conventional
audio connector. Its installation hole measures 14x18mm.
YPbPr Connector—Standard Video Input (3-RCA) Connector:
Type: Video connectors are in set (Y, Pb, Pr) (Green Y, Blue Pb, Red Pr)
For YX matrix YPbPr RCA jack connection, see Figure 4-2 below:
