1.0 Matrix System Overview
1.0.1 YX Matrix System
The YX-1044 Matrix switcher is a high performance switching equipment for
audio/video frequencies. It is used for multiple input/output cross switching of audio/video
signals. It provides independent YPbPr component and audio input/output terminals. Each YPbPr
component signal and audio signal is transmitted separately and switched separately, thereby
minimizing signal attenuation and ensuring high definition graphics and high fidelity signal
output.
The YX-1044 Matrix is used mainly in TV broadcasting projects, multi-media conference halls,
large display projects, TV teaching and command control centers.

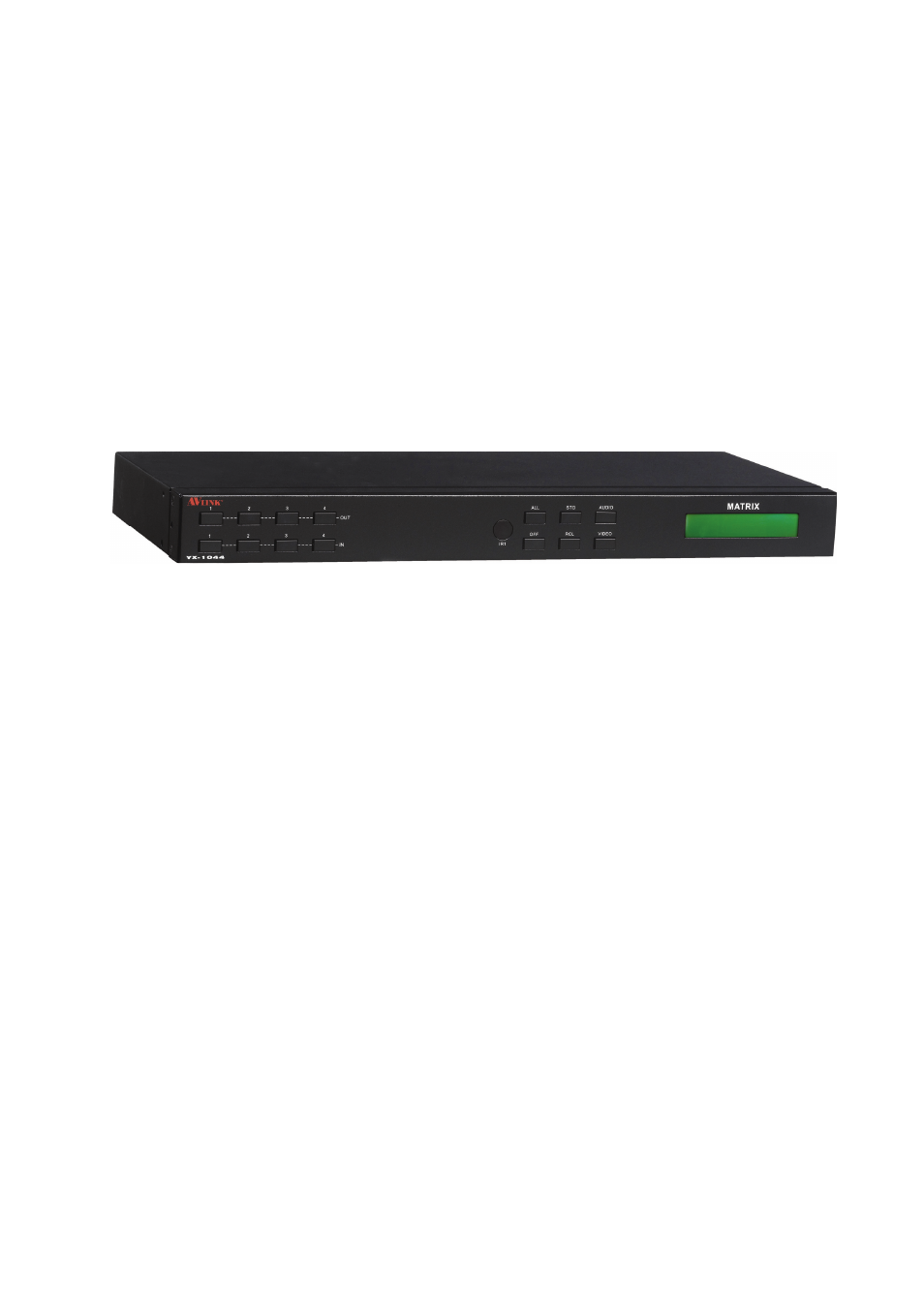

Figure 1-1 YX-1044 Matrix
