18
Step 3: Press the previously pressed output number keys 03, 02 and 01 (or press the “Deselect
all output” key) to complete the operation.

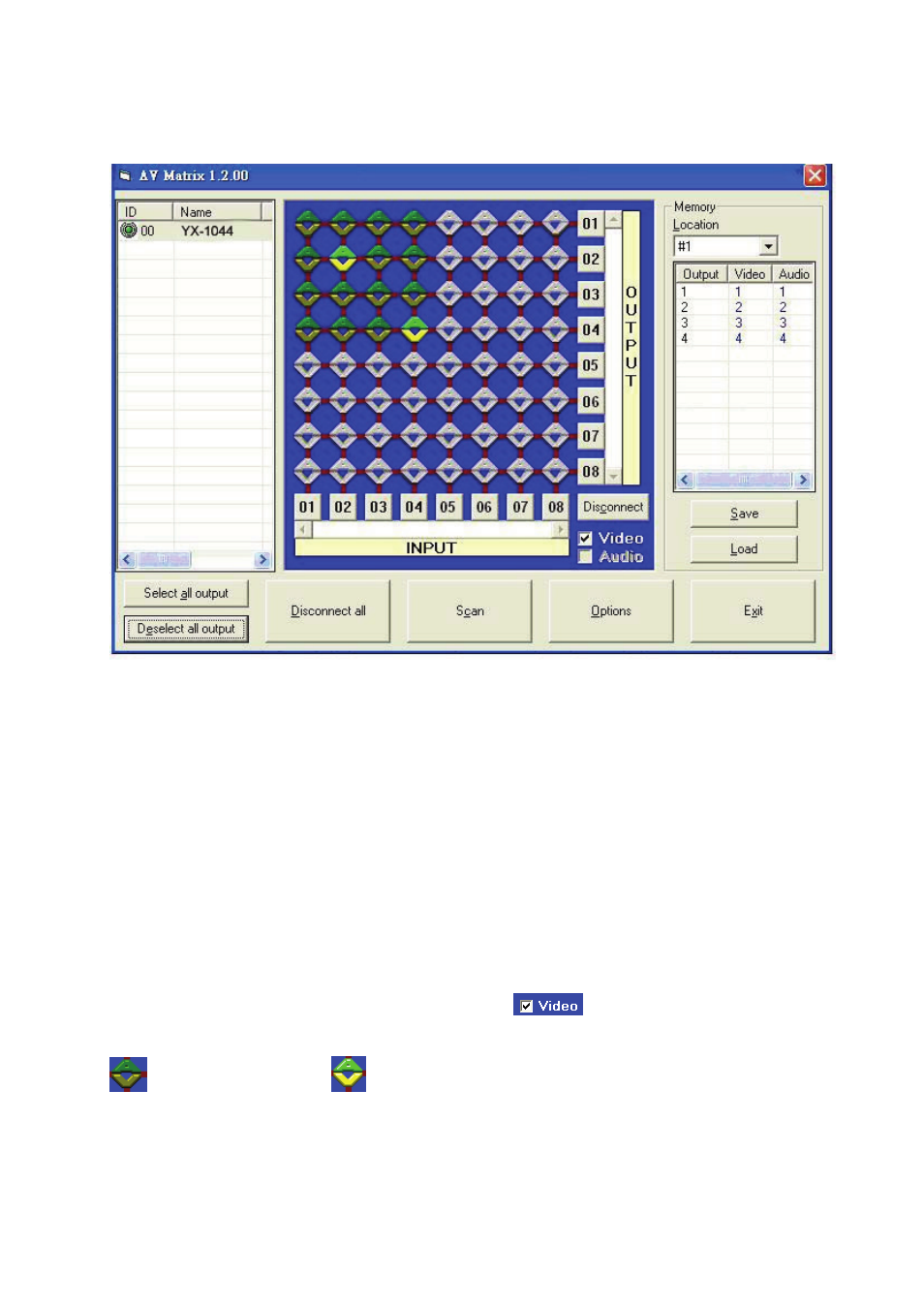

Figure 7-3
7.0.7 Select all output, DeSelect all output Switching Functions
（ 1）Select all output Function Description: You can use this function to select one all output
ports for output to one input port.
A specific example of operation is described below:
Example: Now, you have an YX-1044 matrix with all input and output ports properly connected
to the equipments. The needed input/output ports should be set to channel 1 input to all
output-ports to output
Make sure you have selected the “Video” check box (
). Then, press the “Select all
output” key and select the input number key 01. Click on the matrix icons along the 01 row
to transform them into to complete the command operation.
（ 2）DeSelect all output Function Description: It is used to disable the Select all output
function.
