7.0.8 Disconnect all Command
Function Description: To disable all the switching functions. Press the “Disconnect all” key to
disable all the connections of input and output ports.
7.0.9 Memory Function Usage
Function Description: To store and retrieve the settings.
Store Functin Description: The Store Function saves all the present input/output switching
relations to any Locations from #1 to #8 you desired.
A specific example of the Store Function is described below:

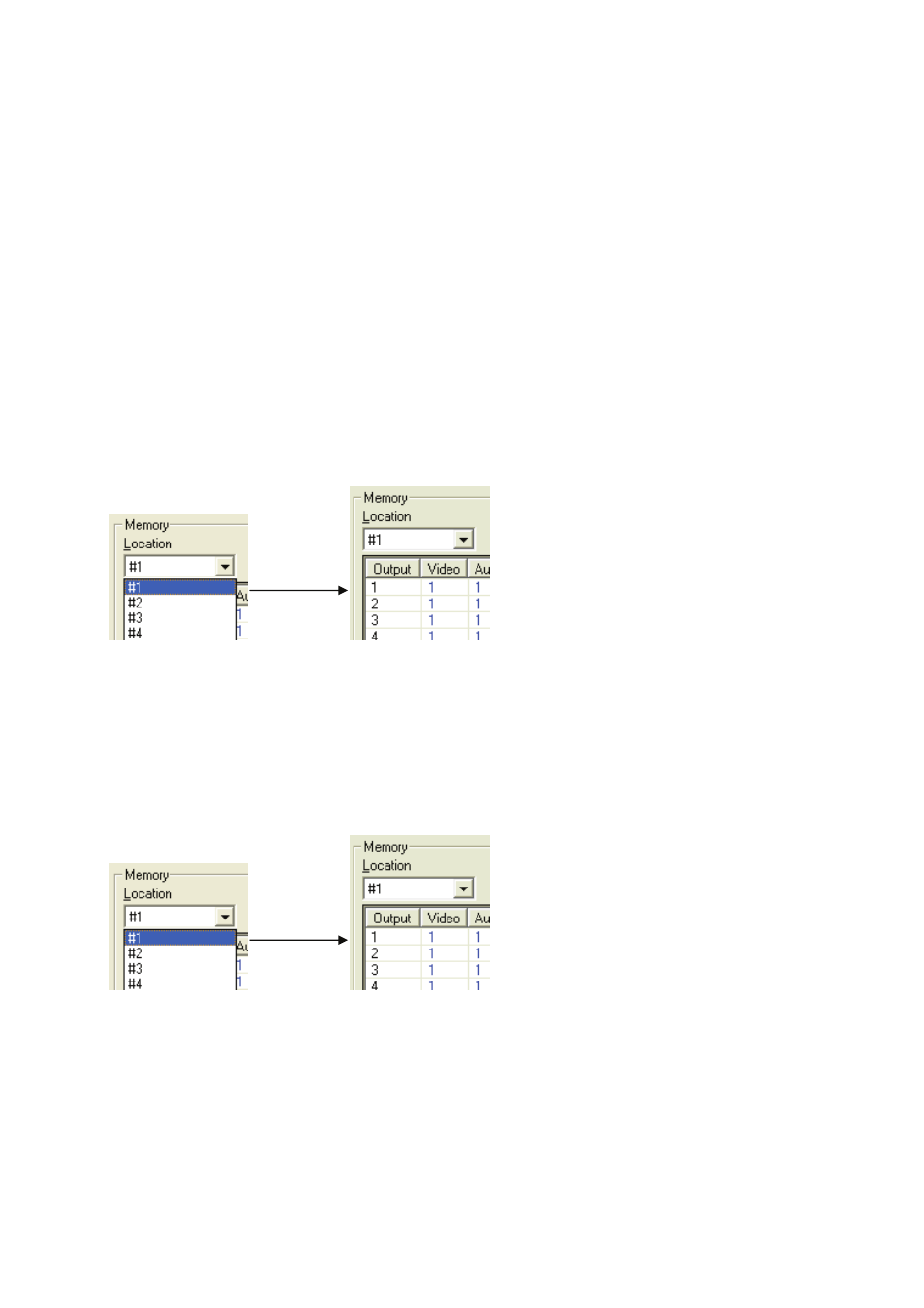

Store all the present input/output switching relations to Location #1. First, select Location #1, as
shown in the figure below. Then click the Save key to save all the present input/output switching
relations to Location #1.
Retrieve Function Description: To retrieve the saved input/output switching relations.
A specific example of the Retrieve Function is described below:
To retrieve the input/output corresponding relations saved in Location #1. First, select Location
#1 as shown in the figure below. Then click the Load key to retrieve all the
Input / output corresponding relations stored in Location #1
7.0.10 Scan Function Usage
Use the mouse to click the Scan key to refresh the AV Matrix operating interface.
7.0.11 Options Function Usage
Activation Function:
In the main configuration menu, select Options to prop up the Options Window as shown in
