Identifying power supply and data cables – Compaq Presario 7360 User Manual
Page 89
11-6 Upgrading Your Internet PC
Identifying Power Supply and Data Cables
When performing upgrade procedures, you may find it necessary to disconnect
power supply and data cables.
*
HINT: If you must disconnect a cable, mark the cable with a piece of masking tape
labeled with the name of the device for future reference.
Refer to the following graphics for assistance in identifying power supply and data
cables.
Power Supply Cables
Power supply cables usually have a white connector that consolidates several
colored wires.

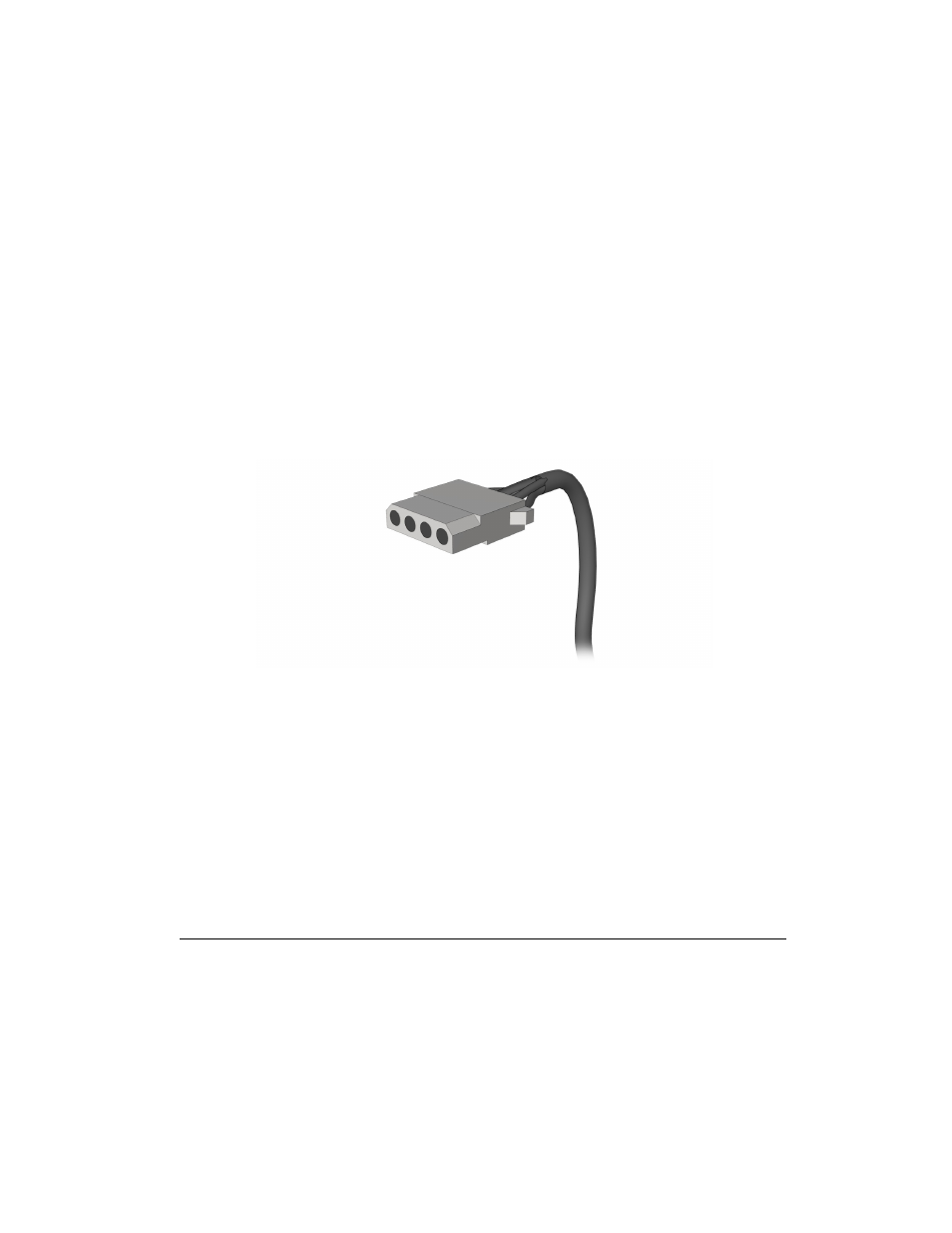

View of a Typical Power Supply Cable
