8. Replacement of all required Valve parts will be accomplished using the appropriate
instructions and illustrations in Section 3.
THERMAL ELEMENT
ADJUSTMENT SLEEVE
LOCKNUT
1/8" NPT
COMPRESSION
ELBOWS
UPSTREAM
TUBE
DOWNSTREAM
TUBE
HEX HEAD
CAP SCREWS
1/4" NPT
COMPRESSION
ELBOW
VALVE
BODY

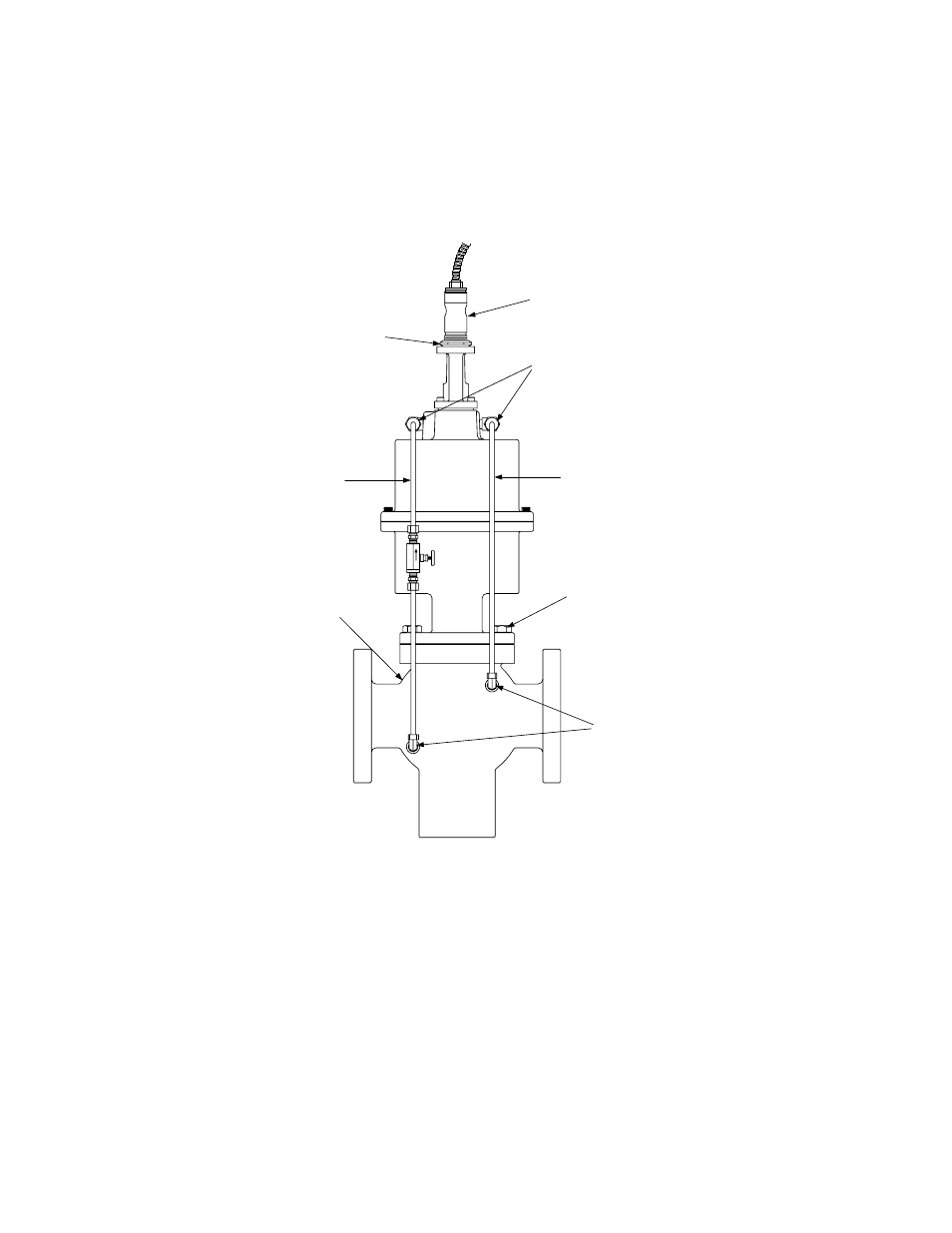

Figure 2-6. Self-Contained Control Valve Actuator Removal
