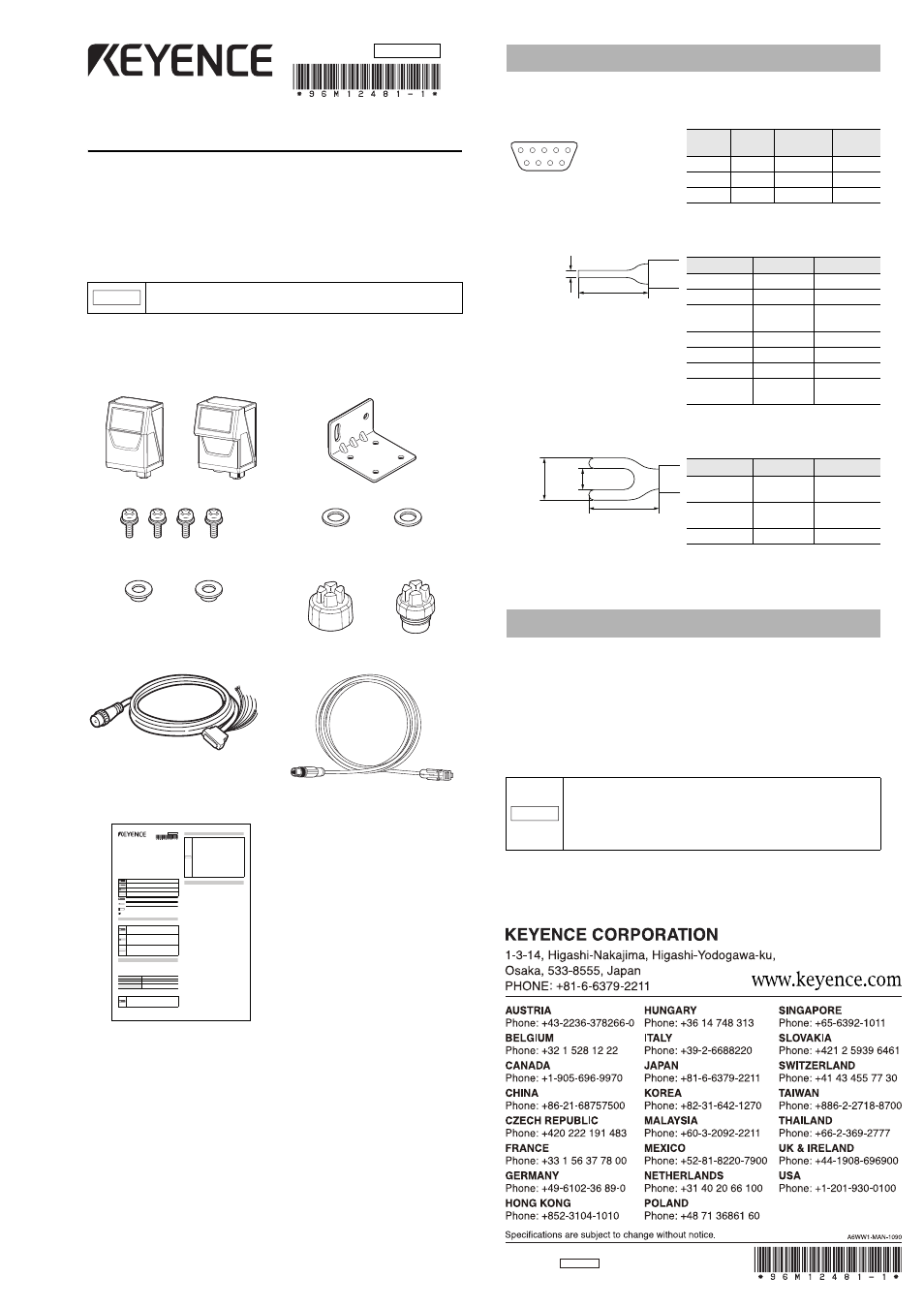

Information of the SR-750 Series Trial Unit

Thank you for using the SR-750 series trial unit, our 2D code reader.
Please make sure to include all the following items when you return the trial
unit.

„

Symbols

The following symbols alert you to important messages.
Be sure to read these messages carefully.

„

Package Contents

About a connector and a signal cable for the trial unit control cable.

„

RS-232C Connector

„

Control Cable (Crimping part of a pin terminal)

„

Control Cable (Crimping part of a Y terminal)

Please refer to the SR-750 Series Instruction Manual for the connection
methods of each cable.

There are following 2 methods employed for connecting power source to the
SR-750 Series.
• Connect the power supply wire of the control cable to a 24 VDC power

supply device.

• Connect to a PoE (Power over Ethernet) power supply device using the

Ethernet port.

Please use either one of the connection methods to supply power to the
SR-750 series.

It indicates a situation which, if not avoided, could result in
product damage as well as property damage.

F

SR-750 Series Main Unit x 1

SR-750/751/750HA

SR-752

F

Installation Bracket x 1

F

Installation Screw (M4) x 4

F

Washer x 2

F

Insulation Spacer x 2

F

Port Cover (Power/Control Port,
Ethernet Port) x 1 each

F

Trial Unit Control Cable (2 m) x 1

F

NFPA79 Compliant Ethernet
Cable (2 m) × 1

F

SR-750 Series Instruction
Manual

NOTICE

1

E SR-750-IM

Fixed Mount 2D Code Reader

SR-750 Series

Instruction manual

Read this instruction manual before using the product in order to achieve

maximum performance.

Keep this instruction manual in a safe place after reading it so that it can be

used at any time.

„ Symbols

The following symbols alert you to important messages. Be sure to read

these messages carefully.

Important

It indicates cautions and limitations that must be followed during operation.

Point

It indicates additional information on proper operation.

Reference

It indicates tips for better understanding or useful information.

indicates the reference pages in this manual or the reference pages in separate manuals.

Safety Information for SR-750 Series

„ General Precautions

Safety precautions on Laser product

The SR-750 Series Fixed Mount 2D Code Reader uses a visible semiconductor

laser, with a wavelength of 660 nm, as a Laser pointer for adjusting the reading

position.

„ Laser Pointer Specifications

* The laser classification for FDA(CDRH) is implemented based on

IEC60825-1 in accordance with the requirements of Laser Notice No.50.

Precautions on Proper Use

Precautions on Regulations and Standards

„ CE Marking

Keyence Corporation has confirmed that this product complies with the

essential requirements of the applicable EC Directive, based on the

following specifications. Be sure to consider the following specifications

when using this product in the Member State of European Union.

z EMC Directive (2004/108/EC)
• Applicable standards

EMI : EN61326-1, Class A

EMS : EN61326-1

Remarks:

These specifications do not give any guarantee that the end-product with

this product incorporated complies with the essential requirements of

EMC Directive. The manufacturer of the end-product is solely responsible

for the compliance on the end-product itself according to EMC Directive.

z Low-voltage Directive (2006/95/EC)
• Applicable Standard

EN60825-1,

Class 1 Laser Product

EN62471

„ FDA (CDRH) Regulations

This product complies with the following FDA (CDRH) regulations.

• FDA(CDRH) Part 1040.10, Class 1 Laser Product

The laser classification for FDA(CDRH) is implemented based on IEC60825-

1 in accordance with the requirements of Laser Notice No.50.

„ FCC Regulations

This product complies with the following FCC EMI regulations.

• FCC Part 15 Subpart B, Class A Digital Device

„ IC (Industry Canada) Regulations

This product complies with the following IC EMI regulations.

• ICES-003, Class A Digital Apparatus

It indicates a hazardous situation which, if not avoided, will result in death or
serious injury.

It indicates a hazardous situation which, if not avoided, could result in death
or serious injury.

It indicates a hazardous situation which, if not avoided, could result in minor
or moderate injury.

It indicates a situation which, if not avoided, could result in product damage
as well as property damage.

Do not use this product for the purpose to protect a human body or a part

of human body.

This product is not intended for use as explosion-proof product. Do not

use this product in a hazardous location and/or potentially explosive
atmosphere.

Be sure to check that the SR-750 Series performs properly before starting

the work or operation.

If the SR-750 Series malfunctions, take adequate safety precautions to

prevent various types of damage.

Do not use the SR-750 Series in a manner not specified herein. It may

result in fire, electric shock or malfunction.

It should be noted that functions and performances will not be guaranteed

if the SR-750 Series is used in any way not specified or described in the
product specifications or it is modified.

When the SR-750 Series is used in combination with other devices,

functions and performance may be degraded, depending on the operating
conditions and environment.

Wavelength

660nm

Output

60

PW

Pulse duration

200

Ps

Laser class

Class 1 Laser Product

(IEC60825-1, FDA(CDRH) Part 1040.10*)

Use of controls or adjustments or performance of procedures other than

those specified herein may result in hazardous radiation exposure.

Do not disassemble this product. The laser radiation emission from this

product is not automatically stopped when it is disassembled.

Precautions on Class 1 Laser Product
Do not stare into the direct or specularly reflected beam.

96M12410

DANGER

WARNING

CAUTION

NOTICE

WARNING

CAUTION

NOTICE

WARNING

Do not use a voltage other than that described in the specifications with

the SR-750 Series. Doing so may damage to the unit.

The SR-750 Series employs 2 power connection methods, which are 24 V

DC supply and supply from PoE power supply devices. When connecting
the SR-750 Series to the power source, be sure to use only one of these
methods. Using both power sources simultaneously may cause damage
to the units.

Be sure to turn off the power to devices attached to the SR-750 Series

when you plug in or unplug the cables.
Failure to do so may cause damage to the SR-750 Series.

Do not disassemble or modify the SR-750 Series. Doing so may damage to

the unit.

Place cables as far away as possible from high-voltage lines and power

lines. Otherwise, electrical noise can be generated that may cause product
failure or malfunction.

The SR-750 Series is a precision instrument. Do not impact or drop the

instrument. Pay particular attention when transporting or installing the
unit.

Do not hold the unit by its cable when carrying. The units may become

damaged if the cables are disconnected or the units strike each other.

Do not allow water, oil, dust, or other foreign substances to stick to the

scanner. This may cause read errors.
Use a soft, dry cloth to wipe any substance from the scanner. (Do not use
a cloth dipped in alcohol or other cleaning substance.)

NOTICE

Concerning the Trial Unit Control Cable

Pin

number Symbol

Details

Signal

direction

2

TXD

Data send

Output

3

RXD

Data receive

Input

5

SGND

Signal GND

-

Wire color

Symbol

Details

Green

IN1

IN1 Input

Gray

IN2

IN2 Input

White and

Blue

INCOM

Input Common

Pink

OUT1

OUT1 Output

Light Blue

OUT2

OUT2 Output

White

OUT3

OUT3 Output

Black

OUTCOM

Output

Common

Wire color

Symbol

Details

Brown

24 V

+24 V Power

source

Blue

0 V

Power source

GND

Black Tube

FG

FG

Connecting the Power Source

Make sure to use only one of the connection methods for
power supply.
If power is supplied both from the control cable and PoE
power supply device at the
same time, the unit may be damaged.
