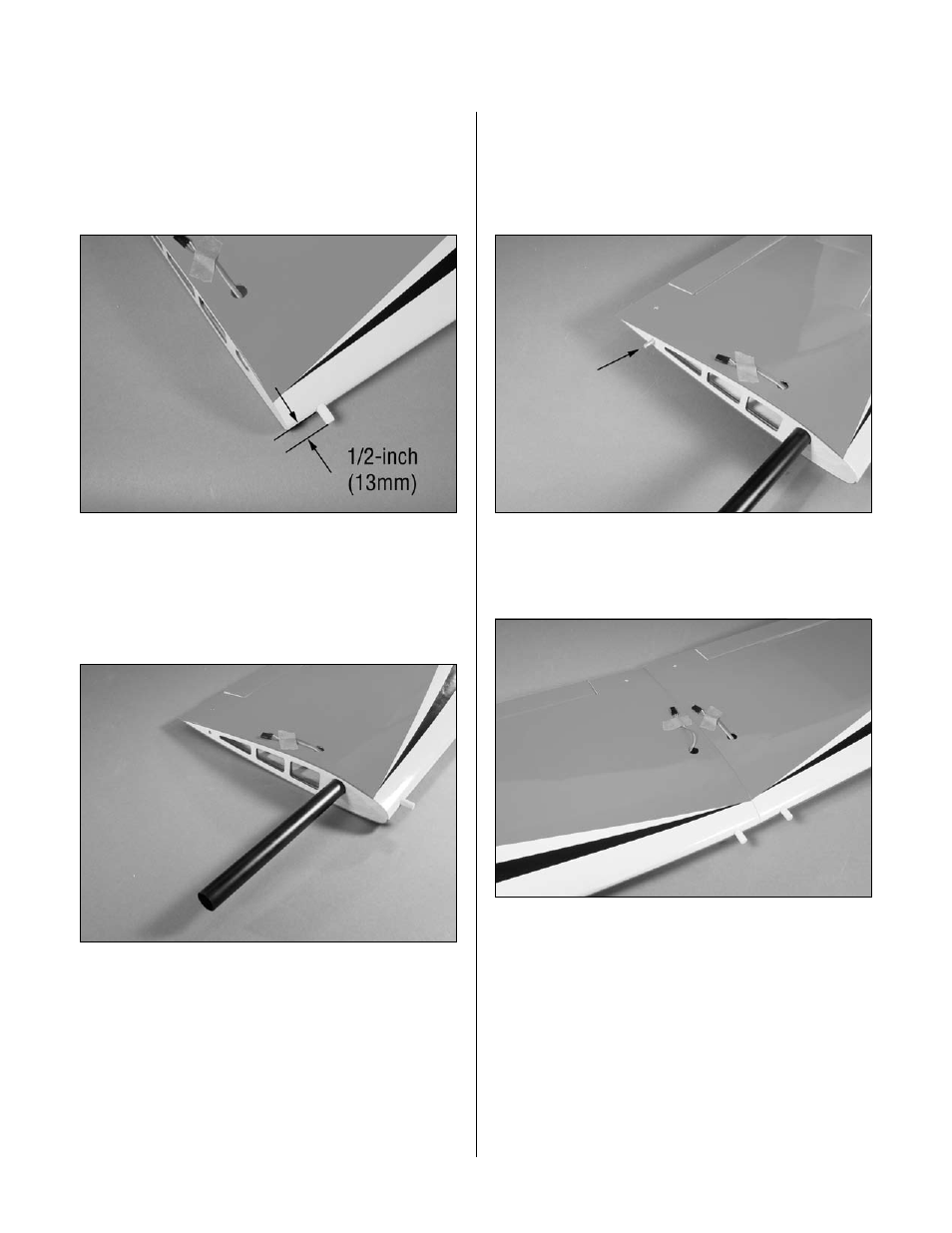

Step 4
Use 30-minute epoxy to glue the wooden dowel into
the hole in he leading edge of the wing. Leave 1/2-inch
(13mm) of the dowel protruding from the wing as shown.
Glue dowels in both wing panels at this time.
Step 5
Carefully slide the aluminum wing tube into the wing
panel as shown. The tube will slide half way into the wing,
as there is a stop inside the wing to prevent it from sliding
in any further than necessary.
Step 6
Install the 1
3
/
16
-inch x 3/16-inch (81mm x 4.75mm)
aluminum anti-rotation pin in the hole near the trailing
edge of the wing. Use medium CA to glue the pin in
position so it will not fall out and get lost.
Step 7
Slide the remaining wing panel on the wing tube. Press
the two wing panels tightly together.
