18
Required Parts
• Fuselage assembly • Servo (2)
• 180-degree servo horn (2)
• 27
1 /
2
-inch (698mm) threaded pushrod (2)
Required Tools and Adhesives
• Screwdriver: #1 Phillips • Pin drill
• Drill bit: 5/64-inch (2mm) • Threadlock
• Adjustable wrench

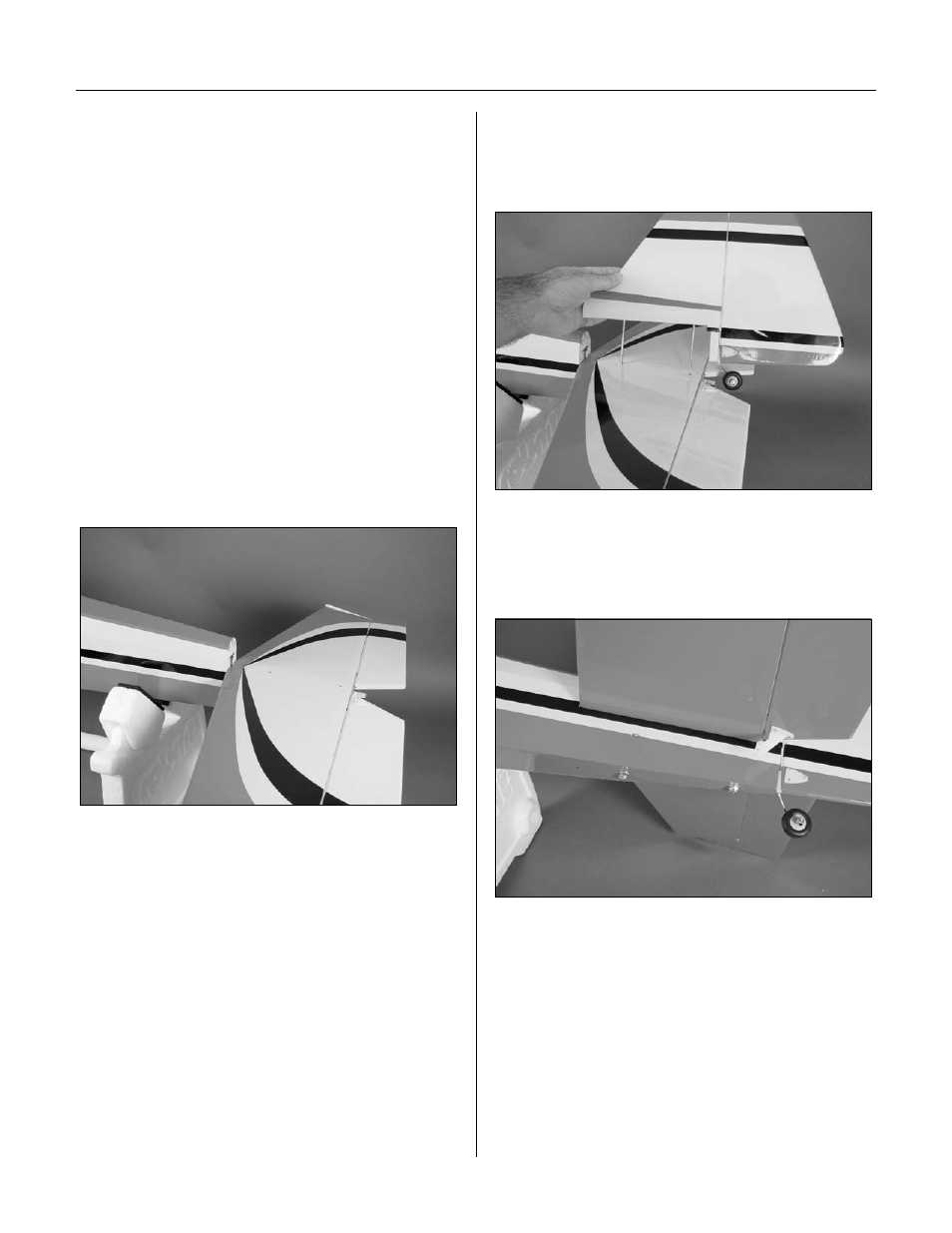

 Step 1
Locate the rudder/fin and stabilizer/elevator. Check the
hinges as described in Section 1, Steps 1 and 2.
 Step 2
Place the stabilizer/elevator in position at the rear of the
fuselage. Align the holes in the stabilizer with the holes in
the fuselage.
 Step 3
Slide the threaded studs from the fin into the holes in
the stabilizer. The studs will then go through the holes
in the fuselage.
 Step 4
Use two 6-32 lock nuts and two #6 washers to attach
the tail to the fuselage. Do not over-tighten the nuts and
damage the fuselage.
Section 3: Rudder and Elevator Installation
