Hangar 9 Pulse XT 60 ARF User Manual
Page 20
20

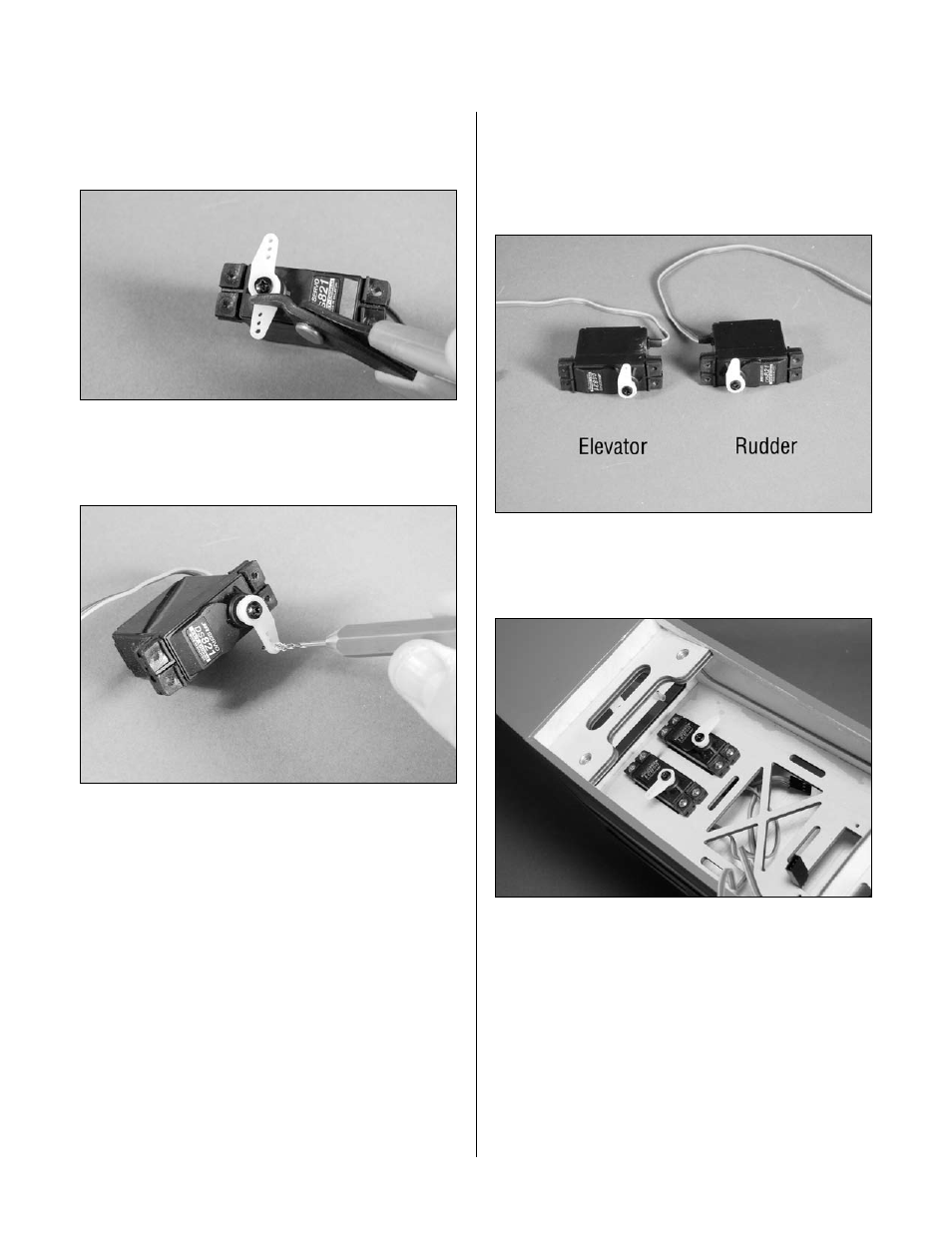

Step 8
Use side cutters to remove one of the arms from the
servo horn.
Step 9
Use a 5/64-inch (2mm) drill bit to enlarge the outer hole
of the servo arm.
Step 10
Repeat Steps 7 through 9 to prepare the elevator servo.
Note the direction of the servo arm in relationship to the
rudder servo. The rudder and elevator servos are mirror
images of each other.
Step 11
Install the rudder and elevator servos using the hardware
provided with the servos.
Section 3: Rudder and Elevator Installation
